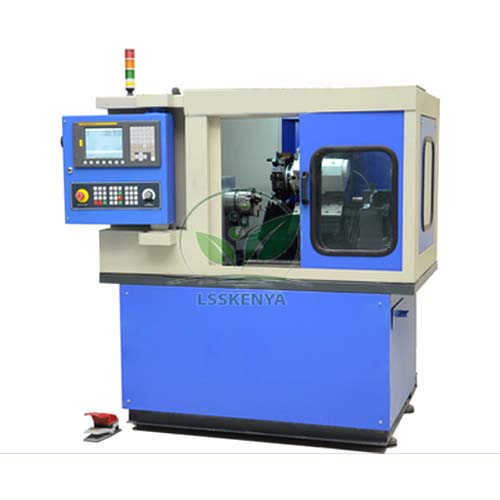

CNC Semi Production Lathe
Product Code : LSK-CTM-10783
CNC Semi Production Lathe (SKU LSK-CTM-10783) is a servo-driven CNC turning machine with a hydraulic chuck and an 8-station servo turret, intended for institutes that want to give students industrial turning practice and also run light production on the same machine. Polytechnics, engineering colleges and TVET centres use it in advanced CNC turning courses. Science Lab Supplies, working from Ambala, India, can quote and dispatch the lathe to colleges, contractors and distributors.
Specifications
Bed, spindle, axis and turret data for the semi-production lathe are split into single rows in the table. Put simply, it has a flat or 45-degree slant bed, a 5.1 kW (7 HP) AC servo spindle running 100 to 6000 RPM through a VFD, servo-driven X and Z axes and production-type turret tooling for jobs up to 100 mm by 370 mm.
| Specification | Value |
|---|---|
| SKU | LSK-CTM-10783 |
| Bed type | Flat / 45° slant |
| Chuck type | Hydraulic |
| Maximum turning diameter | 100 mm |
| Maximum turning length | 370 mm |
| Centre height | 150 mm |
| Swing over cross slide | 125 mm |
| Swing over bed | 300 mm |
| Distance between centres | 420 mm |
| Positioning | 0.010 mm |
| Repeatability | ±0.005 mm |
| Resolution | 0.001 mm |
| Spindle motor | AC servo |
| Spindle motor capacity | 5.1 kW / 7 HP |
| Spindle speed | 100–6000 RPM with VFD |
| Axis motors and drives | Servo motors with servo drives |
| X-axis travel | 120 mm |
| Z-axis travel | 380 mm |
| Feed rate | 0–10,000 mm/min |
| Rapid travel | 10,000 mm/min / 20,000 mm/min |
| Turret type | Automatic, servo type |
| Number of stations | 8 |
| Tool cross section | 20 x 20 mm |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the CNC Semi Production Lathe
Trainees use this lathe to learn the turning-centre workflow used in industry: chucking with a hydraulic chuck, setting offsets for eight turret tools, running roughing and finishing cycles and checking parts. Its 7 HP spindle and 20 mm tool shanks also let an institute take on light production jobs.
- ITI turner and Operator Advanced Machine Tools trades: CNC turning-centre operation.
- Diploma in mechanical or production engineering: canned cycles, grooving and threading programs, with finished threads checked on a Thread Gauge.
- B.E./B.Tech manufacturing labs: comparing CAM output with manual G-code on real parts, and measuring cutting forces with a Lathe Tool dynamometer on a conventional lathe.
- Institute production units: short runs of turned components.
Standard Scope of Supply
The lathe is supplied as a single machine with its bed, hydraulic chuck, AC servo spindle and VFD, servo-driven X and Z axes and the 8-station servo turret listed above. Cutting tools, holders and any extra accessories are not part of the standard machine and are listed separately on the quotation.
Packing, MOQ and Lead Time
You may request pricing for one lathe or for several machines for a CNC turning bay. Every quotation states the packing, delivery time and price for the quantity requested, and a matching semi-production mill or other TVET workshop equipment can be listed with it.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Ethiopia, Tanzania, Uganda, the UAE, Saudi Arabia and Oman. Planning a turning bay? Outline the quantity on the contact page, collect this lathe and its tooling in the enquiry cart, or use the lab tender page if a tender governs the purchase.
Frequently Asked Questions
What job size can this lathe turn?
The specification lists a maximum turning diameter of 100 mm and a maximum turning length of 370 mm, with 300 mm swing over the bed and 420 mm between centres.
How is it different from a stepper CNC lathe trainer?
It uses servo motors and drives on both axes, a 7 HP spindle up to 6000 RPM and an 8-station servo turret, so it handles heavier cuts and light production.
Who supplies the CNC Semi Production Lathe?
Supply is through Science Lab Supplies in Ambala, India, which can price this lathe on its own or together with a matching mill and tooling for institutes and tender contractors.
What safety points apply in class?
Keep the guards closed during cutting, secure the job in the hydraulic chuck before starting, and let students operate the machine only under instructor supervision.
