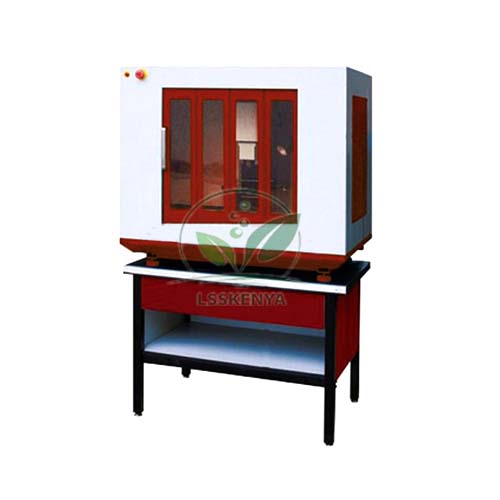

CNC Milling Machine Table Model
Product Code : LSK-CTM-10768
CNC Milling Machine Table Model (SKU LSK-CTM-10768) is a bench-mounted three-axis CNC mill with a 500 W spindle reaching 7000 rpm and a 400 x 145 mm table. Its compact size suits classrooms and small CNC labs in ITIs, polytechnics, engineering colleges and TVET centres. Science Lab Supplies sends quotations for it from Ambala, India to technical institutes, tender contractors and distributors.
Specifications
The 400 x 145 mm table model is broken down figure by figure in the rows below. In brief, it travels 260 mm in X, 110 mm in Y and 180 mm in Z with 1.35 Nm X/Y and 2.2 Nm Z feed motors, carries up to 20 kg, drills to 10 mm and positions to 0.015 mm.
| Specification | Value |
|---|---|
| SKU | LSK-CTM-10768 |
| Worktable size | 400 x 145 mm |
| Number of T-slots | 3 |
| T-slot size | 8 mm |
| Max. worktable load | 20 kg |
| X-axis table travel | 260 mm |
| Y-axis table travel | 110 mm |
| Z-axis table travel | 180 mm |
| Throat | 150 mm |
| Drilling capacity | 10 mm (3/8 in) |
| Spindle speed | 100–7000 rpm |
| Spindle motor | 500 W |
| X-axis feed motor | 1.35 Nm |
| Y-axis feed motor | 1.35 Nm |
| Z-axis feed motor | 2.2 Nm |
| Feeding speed (X/Y/Z) | 500 mm/min |
| Max. moving speed (X/Y/Z) | 2 m/min |
| Positioning precision | 0.015 mm |
| Machine size (L x W x H) | 1040 x 860 x 940 mm |
| Gross weight | 218 kg |
| Net weight | 178 kg |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the CNC Milling Machine Table Model
The bench mill lets trainees write and prove G-code programs, set work offsets and cut light pockets, slots, profiles and hole patterns in small workpieces. It suits introductory CNC milling in ITIs, polytechnic and B.Tech workshops and TVET machining modules, where several stations can be set up in one room.
- ITI Machinist and CNC operator courses: first programs, dry runs and simple milling jobs.
- Diploma and B.Tech manufacturing labs: linking CAD/CAM output to a real machine, and contrasting it with a manual mill converted by the CNC Retrofitting Kit for Milling Machine.
- TVET machining modules: slotting, pocketing and drilling practice on a compact machine, with the workpiece held in a Drilling Machine Vice.
Standard Scope of Supply
The CNC Milling Machine Table Model is supplied as a single bench machine as described above, with a gross shipping weight of 218 kg. A sturdy bench or stand, cutting tools, a vice and any optional accessories are not part of the listed specification and can be added to the quotation.
Packing, MOQ and Lead Time
Quotations can cover a single bench mill or several stations for a CNC classroom. Each quotation from Science Lab Supplies lists the packing, delivery time and price for the quantity requested, and bench lathes or other TVET workshop equipment can be added to it.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Nepal, Bangladesh, Zambia, Rwanda, South Africa and Qatar. Science Lab Supplies is registered for GST (GSTIN 06ADEPJ0574F2ZU). To price several bench stations, outline the room layout on the contact page, list the mills and lathes in the enquiry cart, or open the lab tender page where a tender governs the purchase.
Frequently Asked Questions
How does the table model differ from the floor model?
The table model has a 400 x 145 mm table, 20 kg load, 500 W spindle to 7000 rpm and 10 mm drilling capacity. The floor model has a larger 500 x 160 mm table rated for 35 kg, a 1 kW spindle and a 16 mm drilling capacity.
Is this machine suitable for a classroom?
Yes. At 1040 x 860 x 940 mm and 178 kg net it fits on a strong bench, so several units can be set up in one CNC training room.
Who supplies the CNC Milling Machine Table Model?
Science Lab Supplies is the supplier, working from Ambala, India. Engineering colleges, polytechnics and ITIs can order the table model without an intermediary, while tender contractors and distributors can also request item-wise quotations for it.
