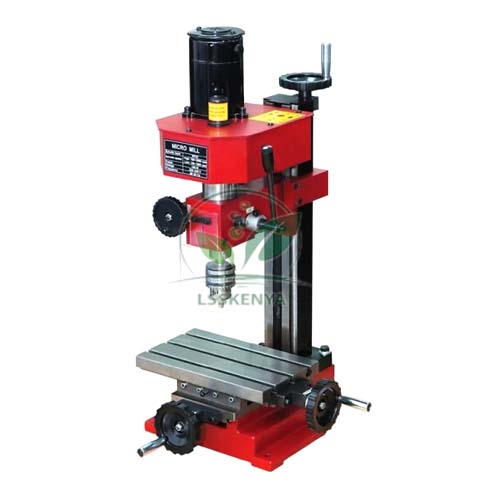

CNC Micro Mill
Product Code : LSK-CTM-10791
CNC Micro Mill (SKU LSK-CTM-10791) is a desktop CNC machining system that can produce anything from very simple to very complex geometric forms in wood, plastic, aluminium or steel. Its small footprint makes it a practical first CNC mill for classrooms, design studios and project labs. Schools with technology programmes, polytechnics, engineering colleges and TVET centres use it for CNC and product design work. Science Lab Supplies quotes the micro mill from Ambala, India, for institutes, contractors and distributors.
Specifications
Mechanics, drive, software and the complete-system contents of the desktop micro mill are set out row by row below. In brief, it uses ground steel ways with adjustable brass gibs, a hard-anodised aluminium table, 20-pitch Cr-Mo lead screws and 200 oz-in stepping motors, with a 1/4 HP spindle turning from 1100 to 11000 RPM.
| Specification | Value |
|---|---|
| SKU | LSK-CTM-10791 |
| Machine type | Desktop CNC machining system |
| Materials | Wood, plastic, aluminium, steel |
| X travel | 300 mm |
| Y travel | 146 mm |
| Z travel | 153 mm |
| Z-axis assembly | Box way with ground steel plate and tapered brass gib |
| X-axis gib | Adjustable, tapered brass |
| Sliding ways | Ground steel with adjustable brass gib |
| Rapid travel | 30 in/min (about 760 mm/min) |
| Stepping resolution | 0.003 mm |
| Mechanical repeatability | 0.01 mm |
| Spindle speed | 1100–11000 RPM |
| Spindle motor | 1/4 HP |
| Spindle drive | Pulley set with drive belt |
| Axis motors | 200 oz-in stepping motors |
| Driver | Electronic chopper driver unit with input/output port |
| Table | Hard-anodised aluminium |
| Lead screws | 1/2 in (12.7 mm), 20 pitch, Cr-Mo |
| Program input | Universal standard G-code import |
| Control software | Custom PC control interface for Windows XP |
| Collet | One 3, 4 or 6 mm collet with collet closer |
| Cables | Printer cable; power cable |
| 4th axis | Amplifier and port optional |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the CNC Micro Mill
The micro mill lets students take a design from CAD drawing to G-code to finished part on a bench-top machine. Because it accepts standard G-code, it pairs with most CAM packages taught in colleges, and its range of materials suits both model making and small metal parts.
- ITI and TVET CNC modules: first milling programs, work offsets and tool setting.
- Diploma in mechanical engineering: CAD/CAM practicals on a desktop machine, with finished dimensions checked on an Electronic Digital Vernier Caliper.
- B.E./B.Tech design and prototyping labs: small parts in aluminium or plastic, with tool heights set using the thin blades of a Feeler Gauge.
Standard Scope of Supply
The complete system includes the micro mill with 1/4 HP spindle motor, 200 oz-in stepping motors, pulley set with drive belt, electronic chopper driver unit with input/output port, one 3, 4 or 6 mm collet with collet closer, the control software interface, printer cable and power cable. The 4th-axis amplifier and port are optional.
Packing, MOQ and Lead Time
Ask for a quotation for one micro mill or for a set of desktop machines for a class. The quotation states packing, delivery time and price for the number you request, and extra collets, the 4th-axis option or other TVET workshop equipment can be added.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Bangladesh, Zambia, Rwanda, South Africa, Qatar and Sri Lanka. Tell us how many desktop stations your class needs, and which collet size, via the contact page; you can also queue the mill in the enquiry cart, and the lab tender page serves tender buyers.
Frequently Asked Questions
Which materials can the CNC Micro Mill cut?
It is described for wood, plastic, aluminium and steel, from simple shapes to complex geometric forms, using a 1/4 HP spindle that runs from 1100 to 11000 RPM.
How is it programmed?
It imports standard G-code and runs through a custom PC control software interface, so programs written by hand or generated in common CAM software can be used.
Who supplies this desktop mill?
The micro mill is supplied by Science Lab Supplies from Ambala, India, and can be quoted as a single unit or as a class set for schools, colleges and training institutes.
Is a fourth axis available?
A 4th-axis amplifier and port are listed as optional, so mention it in your enquiry if you plan rotary machining and it will be priced on the quotation.
