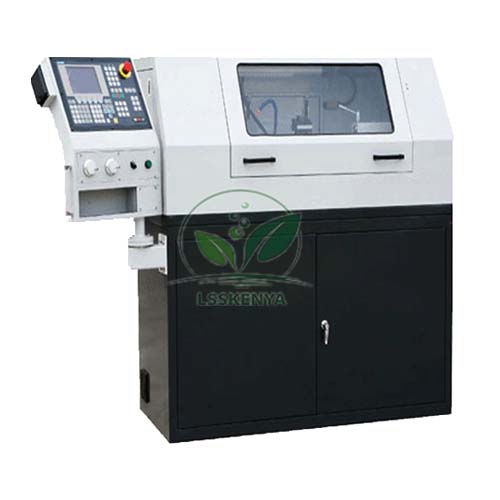

CNC Lathe System
Product Code : LSK-CTM-10794
CNC Lathe System (SKU LSK-CTM-10794) is a computer-controlled turning machine for teaching CNC part programming and turning practice, with 600 mm between centres, a 260 mm turning diameter over the bed and spindle speeds from 30 to 4000 rpm. It is used in ITI, polytechnic and TVET machining courses. Science Lab Supplies quotes and dispatches it from Ambala, India for technical institutes, colleges, tender contractors and distributors.
Specifications
Each figure published for the CNC Lathe System appears as its own row below. In short, a 2.2 kW motor on a 230 V, 50 Hz supply drives a spindle with a 26 mm bore, the axes travel 130 mm on X and 465 mm on Z, and the machine cuts metric pitches of 0.2–3.5 mm and inch threads of 8–56 TPI.
| Specification | Value |
|---|---|
| SKU | LSK-CTM-10794 |
| Distance between centres | 600 mm |
| Turning diameter over bed | 260 mm |
| Spindle bore | 26 mm |
| Spindle speeds | 30–4000 rpm |
| X travel | 130 mm |
| Z travel | 465 mm |
| X rapid speed | 3000 mm/min |
| Z rapid speed | 2500 mm/min |
| X positioning accuracy | 0.03 (unit confirmed on the quotation) |
| Z positioning accuracy | 0.032 (unit confirmed on the quotation) |
| X repeatability | 0.012 (unit confirmed on the quotation) |
| Z repeatability | 0.013 (unit confirmed on the quotation) |
| Metric pitch range | 0.2–3.5 mm |
| Inch thread range | 8–56 TPI |
| Motor power | 2.2 kW |
| Power supply | 230 V, 50 Hz |
| Packing size | 2220 x 820 x 1720 mm |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the CNC Lathe System
The system lets trainees write part programs for facing, turning and thread cutting, run them on real material and check the finished part against the drawing. It supports CNC turning modules in ITI trades, diploma and B.Tech manufacturing practice, and the vocational training equipment lists of TVET machining courses.
- ITI Turner and Machinist trades: CNC facing, turning and thread-cutting exercises, with inch threads checked against a Center Gauge.
- Diploma and B.Tech production engineering: part programming, plus turning-force studies with the Lathe Tool dynamometer on a conventional lathe.
- TVET machining modules: setting up work and checking first-off parts, then comparing CNC threading with manual external threading using a Threading Tool Holder.
Keep guards in place while the spindle turns and let trainees operate the machine only under supervision.
Standard Scope of Supply
The CNC Lathe System is supplied as a single machine as described above. Controller details, tooling and any accessories are itemised on the quotation, which also confirms the 2220 x 820 x 1720 mm packed size for planning delivery and site access.
Packing, MOQ and Lead Time
Quotations can cover one lathe or several for a CNC training workshop, and each lists the packing, delivery time and price for that quantity. Milling trainers and controllers from the same range can be added for institutes buying TVET workshop equipment in one order.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in South Africa, Qatar, Sri Lanka, Vietnam, Malaysia and Peru. Turning-bay planners can send their requirement from the contact page, collect several machines in the enquiry cart, or use the lab tender page when a formal bid is involved.
Frequently Asked Questions
What size of work can the CNC Lathe System turn?
It takes work up to 260 mm in diameter over the bed and up to 600 mm between centres, with a 26 mm spindle bore for bar stock.
What positioning accuracy is quoted?
Positioning accuracy is given as 0.03 on X and 0.032 on Z, with repeatability of 0.012 and 0.013. No unit accompanies these figures, so the quotation confirms the unit and test basis before you order.
Who supplies the CNC Lathe System?
The machine comes from Science Lab Supplies in Ambala, India, which prepares quotations for ITIs, polytechnics, engineering colleges and contractors fitting out CNC training workshops.
What power supply does it need?
The motor is rated 2.2 kW on a 230 V, 50 Hz supply. Have a qualified electrician make the connection and earth the machine before trainees use it.
