Hydraulic Trainer Kit
Product Code : LSK-CTM-10788

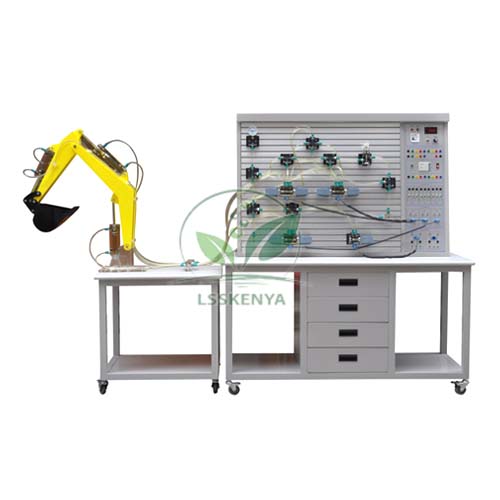

Hydraulic Trainer Kit (SKU LSK-CTM-10788) is a self-contained mobile hydraulics trainer on a trolley with caster wheels, carrying a tank, gear pump, electric motor, valves, cylinders and a hydraulic motor. A specially designed control panel lets students build their own circuits for the seventeen listed experiments. Mechanical engineering departments, polytechnics and TVET centres use it for fluid power practicals. Science Lab Supplies sends the kit from Ambala, India, to institutes, contractors and distributors that ask for a quotation.
Specifications
Every component and feature of the trolley-mounted hydraulic kit is entered as a separate row in the table. In summary, a single-phase flange-mounted motor drives a gear pump through a bell housing and flexible coupling, modular components join through quick-connect fittings, and a PLC with software and help file supports control exercises.
| Specification | Value |
|---|---|
| SKU | LSK-CTM-10788 |
| Frame | Trolley with frame and caster wheels |
| Unit type | Self-contained mobile unit, modular design |
| Tank | Hydraulic tank with filter and breather |
| Electric motor | Single phase, flange mounted |
| Pump | Gear pump |
| Drive coupling | Bell housing and flexible coupling |
| Pressure relief valve | Included |
| Flow control valve | Included |
| Pressure sequence valve | Included |
| Directional control valve | 4/3 way, manually operated |
| Pilot-operated check valve | Included |
| Check valve | Included |
| Needle valve | Included |
| Single-acting cylinder | Included |
| Double-acting cylinder | Included |
| Hydraulic motor | Included |
| Pressure gauges | Provided |
| Hoses and quick couplings | Provided; special fittings and pipes for quick connection |
| Control panel | Designed for students to build their own circuits |
| PLC | With software and help file |
| Listed experiments | 17 |
| Pneumatic models | Available as additional supply |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Hydraulic Trainer Kit
The kit supports a full hydraulic circuits syllabus: operating single- and double-acting cylinders and a motor with a 4/3 valve, setting relief and sequence valve pressures, sequencing actuators, regenerative circuits, and meter-in, meter-out and bleed-off speed control of cylinders.
- B.E./B.Tech fluid power labs: speed control circuits and throttle valve pressure-flow characteristics.
- Diploma mechanical engineering: relief, reducing and sequence valve studies, with gauges verified on a Dead Weight Pressure Gauge Tester.
- ITI and TVET hydraulics modules: building and testing circuits on the panel.
- PLC-based control of simple hydraulic mechanisms.
Standard Scope of Supply
The set includes the trolley, tank with filter and breather, motor, bell housing, coupling, gear pump, gauges, the listed valves, both cylinders, the hydraulic motor, hoses, quick couplings, control panel and PLC with software. Pneumatically operated models are an additional supply, and an Air Compressor can be quoted with them.
Packing, MOQ and Lead Time
Pricing can be requested for a single trolley kit or for several stations in a hydraulics lab. The quotation lists packing, delivery time and price for the quantity you name, and pneumatic models or other TVET lab equipment can be added.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Oman, the Philippines, Nepal, Bangladesh, Zambia and Rwanda. Science Lab Supplies is registered for GST (GSTIN 06ADEPJ0574F2ZU). Whether you need one trolley or a row of stations, the contact page and the enquiry cart both reach the sales desk, and bid documents can follow the lab tender page.
Frequently Asked Questions
Which speed control circuits can students build?
The experiment list covers meter-in, meter-out and bleed-off speed control of a hydraulic cylinder, along with regenerative circuits and throttle valve pressure-flow studies.
Is the kit mobile?
Yes. All components are mounted on a trolley frame with caster wheels, so the unit can be moved between classrooms and workshops and set up wherever a single-phase supply is available.
Who supplies the Hydraulic Trainer Kit?
Science Lab Supplies supplies the kit from Ambala, India, and can add pneumatic models, PLC trainers or other fluid power equipment to the same quotation for colleges and contractors.
How should students work with it safely?
Set the relief valve before building circuits, release pressure before disconnecting hoses and keep hands clear of moving cylinders, with an instructor present.
