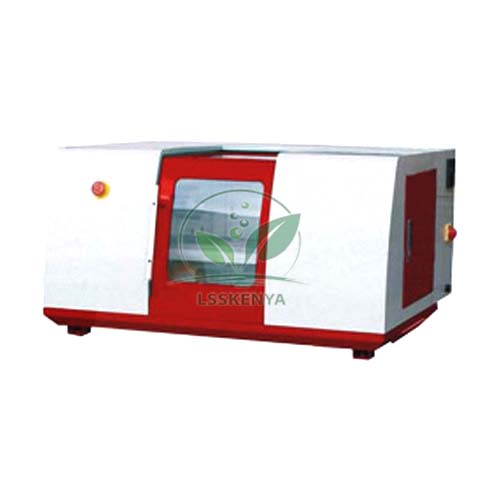

CNC Lathe Machine Table
Product Code : LSK-CTM-10770
CNC Lathe Machine Table (SKU LSK-CTM-10770) is a bench-top two-axis CNC lathe with a 200 mm swing over bed, a 500 W main motor and a 4-station, 360-degree tool turret. Its compact frame makes it a practical first CNC turning machine for ITIs, polytechnics and TVET centres. Training institutes, tender contractors and distributors receive quotations for it from Science Lab Supplies in Ambala, India.
Specifications
Row by row, the table lists every swing, travel, motor and accuracy figure for this bench lathe. Briefly, it offers 150 mm X and 250 mm Z travel with 1.35 Nm axis motors, a 100 mm bed and 100–3000 rpm spindle speeds, positioning to 0.015 mm and repeating to 0.01 mm.
| Specification | Value |
|---|---|
| SKU | LSK-CTM-10770 |
| Swing over bed | 200 mm (7.9 in) |
| Swing over carriage | 100 mm (4 in) |
| Centre distance | 460 mm |
| Bed width | 100 mm (4 in) |
| X-axis max. travel | 150 mm |
| Z-axis max. travel | 250 mm |
| Spindle speed | 100–3000 rpm |
| Main motor power | 500 W |
| X/Z axis motors | 1.35 Nm |
| X/Z feeding speed | 500 mm/min |
| X/Z max. moving speed | 2 m/min |
| Tool turret | 4 station |
| Tool turret angle | 360 degrees |
| Turret return orientation precision | 0.005 mm |
| Tailstock travel | 50 mm (2 in) |
| Positioning precision | 0.015 mm |
| Repeat positioning precision | 0.01 mm |
| Machine size (L x W x H) | 1000 x 780 x 565 mm |
| Gross weight | 180 kg |
| Net weight | 140 kg |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the CNC Lathe Machine Table
The bench lathe is used for first CNC turning programs: facing, step and taper turning, grooving and chamfering of small shafts and bushes. Because it is compact, institutes can equip several stations in one room for ITI, diploma, B.Tech and TVET turning practicals.
- ITI Turner and CNC operator courses: program entry, dry runs and first cuts, after parting-off has been learned on a manual lathe with the Parting Tool Holder.
- Polytechnic and B.Tech workshops: CNC turning in manufacturing processes labs, with threads per inch checked on the Center Gauge.
- TVET machining modules: tool selection and offsets with the 4-station turret.
Standard Scope of Supply
The CNC Lathe Machine Table is supplied as a single bench lathe as described above, with its 4-station turret and tailstock, at a gross shipping weight of 180 kg. A strong bench, turning tools and any optional accessories can be added to the quotation if you need them.
Packing, MOQ and Lead Time
Ask for a quotation for one bench lathe or for a row of stations for a CNC classroom. Each quotation from Science Lab Supplies gives packing, delivery time and price for that quantity, and bench mills or other TVET workshop equipment can be listed alongside.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Zambia, Rwanda, South Africa, Qatar, Sri Lanka and Vietnam. Lathe queries go to the contact page, several machines can sit together in the enquiry cart, and institutions buying by bid will find the process on the lab tender page.
Frequently Asked Questions
Is this a bench or a floor-standing lathe?
It is a bench machine measuring 1000 x 780 x 565 mm and weighing 140 kg net, so it needs a strong, level bench rather than floor foundations.
How does it compare with the floor model?
This table lathe has a 200 mm swing, 500 W motor and 1.35 Nm axis motors. The floor model has a 250 mm swing, 1 kW motor and 4 Nm axis motors.
How many tools can it hold?
The turret has 4 stations and indexes through 360 degrees, returning to position within 0.005 mm, so a program can use up to four tools.
Who supplies the CNC Lathe Machine Table?
Science Lab Supplies supplies the bench lathe from Ambala, India. Engineering colleges, polytechnics and ITIs can request a quotation without going through a dealer, and contractors or distributors handling a tender can ask for one too.
