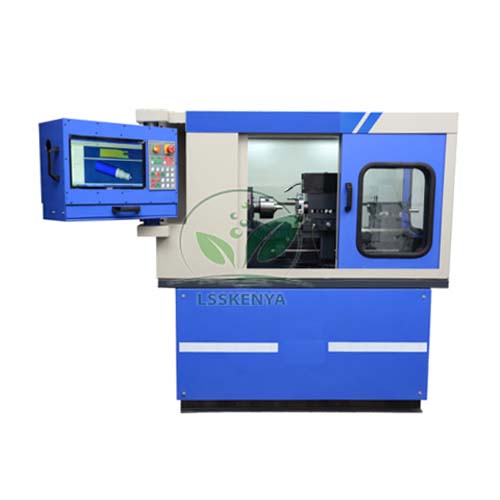

CNC Trainer Lathe Machine
Product Code : LSK-CTM-10771
CNC Trainer Lathe Machine (SKU LSK-CTM-10771) is a CNC turning trainer with LM guideways on both axes, a 1.5 HP spindle reaching 4000 rpm and a 2-station linear tool turret. It is built for teaching production-style CNC turning on small parts in ITIs, polytechnics, engineering colleges and TVET centres. Institutes, tender contractors and distributors can have it quoted and dispatched by Science Lab Supplies, Ambala, India.
Specifications
Swing, capacity, turret, slide, spindle and accuracy data for the trainer lathe are each set out as single rows below. In short, it turns up to 55 mm diameter and 100 mm length, traverses at 15 m/min on LM guideways, takes 12 mm bar through a 35 mm bore into an 80 mm chuck, and repeats to ±0.003 mm.
| Specification | Value |
|---|---|
| SKU | LSK-CTM-10771 |
| Swing over bed | 150 mm |
| Max. turning diameter | 55 mm |
| Standard turning diameter | 50 mm |
| Max. turning length | 100 mm |
| Turret type | Linear |
| Number of stations | 2 |
| Tool cross section | 16 x 16 |
| Max. boring bar diameter | 32 mm |
| X-axis stroke | 150 mm |
| Z-axis stroke | 100 mm |
| Rapid traverse X-axis | 15 m/min |
| Rapid traverse Z-axis | 15 m/min |
| X-axis guideways | LM (linear motion) |
| Z-axis guideways | LM (linear motion) |
| Bore through spindle | 35 mm |
| Bar capacity | 12 mm |
| Chuck size | 80 mm |
| Spindle motor power | 1.5 HP |
| Speed range | 4000 rpm |
| Position accuracy | 0.015 mm |
| Repeatability | ±0.003 mm |
| Dimensions (L x B x H) | 1250 x 850 x 1650 |
| Weight | Approx. 1000 kg |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the CNC Trainer Lathe Machine
The trainer lathe is used for turning programs on small precision parts, such as pins, bushes and bar-fed components up to 55 mm diameter. With LM guideways and 15 m/min rapids, ITI, diploma, B.Tech and TVET trainees can practise realistic cycle times and setups on industrial-style slides.
- ITI CNC operator and Turner courses: programming, tool offsets and running batch jobs.
- Diploma and B.Tech production engineering labs: CNC turning and process planning, compared with external threading on a manual lathe using the Threading Tool Holder.
- TVET machining modules: boring, facing and turning with the linear turret, with cutting tools resharpened on the Universal Tool and Cutter Grinder.
Standard Scope of Supply
The CNC Trainer Lathe Machine is supplied as a single machine as described above, with its 80 mm chuck and 2-station linear turret, at an approximate weight of 1000 kg. Turning tools, boring bars and any optional accessories are listed separately on the quotation.
Packing, MOQ and Lead Time
Quotations are available for one trainer lathe or for a complete CNC turning bay. Each one from Science Lab Supplies states the packing, delivery time and price for the quantity requested, and trainer mills or other workshop tools for technical training institutes can be included.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Rwanda, South Africa, Qatar, Sri Lanka, Vietnam and Malaysia. Purchase officers can send turning-bay requirements through the contact page, assemble lathes and tool holders in the enquiry cart, or consult the lab tender page ahead of a tender.
Frequently Asked Questions
What size of part can the trainer lathe turn?
It turns up to 55 mm diameter (50 mm standard) and 100 mm length over a 150 mm swing, and takes bar stock up to 12 mm through the 35 mm spindle bore into the 80 mm chuck.
How accurate is it?
The listed positioning accuracy is 0.015 mm and repeatability is ±0.003 mm, supported by LM guideways on both the X and Z axes and a rapid traverse of 15 m/min on each axis.
How many tools does the turret carry?
The linear turret has 2 stations and takes 16 x 16 tool shanks and boring bars up to 32 mm diameter, so a program can combine an external turning tool with a boring bar.
Who supplies the CNC Trainer Lathe Machine?
Quotations for the trainer lathe are issued by Science Lab Supplies from Ambala, India. They go directly to ITIs, polytechnics and engineering colleges, and tender contractors or distributors acting for an institute can request the same item-wise offer.
