Spinner 18
Product Code : LSK-CTM-10784

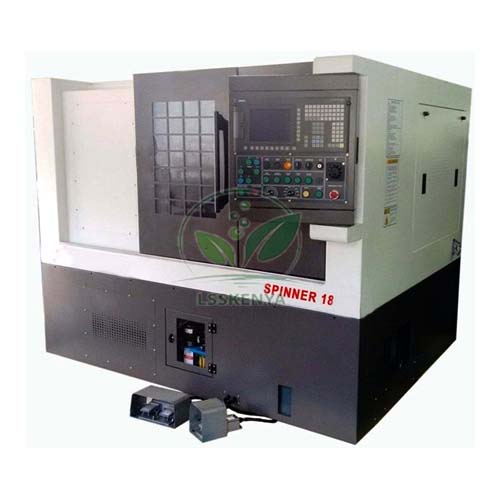

Spinner 18 (SKU LSK-CTM-10784) is a CNC turning center with a rigid machine structure and a big-bore spindle, meant for medium-diameter components that need high torque, good surface finish and accurate sizing. Engineering colleges, advanced TVET centres and institute production workshops use it to train operators on an industrial turning center. Colleges, contractors and distributors can obtain the turning center through Science Lab Supplies, which quotes and ships it from Ambala, India.
Specifications
The Spinner 18 listing names standard features and options rather than numeric capacities, and each one has its own row below. In short, the standard machine runs on linear motion guideways in X and Z with AC digital servo and spindle drives, an 8-station bi-directional turret and an air-conditioned electrical panel.
| Specification | Value |
|---|---|
| SKU | LSK-CTM-10784 |
| Machine type | CNC turning center |
| Spindle | Big bore, for larger stock through the spindle |
| Intended work | Medium-diameter components, high torque |
| Guideways | Linear motion, X and Z axes |
| Axis drives | AC digital servo, both axes |
| Spindle drive | AC digital |
| Turret | 8-station, bi-directional |
| Boring bar holders | 3 nos |
| Axial tool holder | 1 no |
| Coolant | Coolant system |
| Lubrication | Centralised and programmable |
| Lube oil | Lube oil collector |
| Electrical panel | Air-conditioned, with quality electrical devices |
| Electronics environment | Controlled temperature and humidity, dust free |
| Optional: tool setting | Probe for automatic tool setting |
| Optional: bar work | Bar feeder with bar puller |
| Optional: unloading | Part catcher |
| Optional: sleeves | Reduction sleeves |
| Optional: door | Auto door |
| Optional: turret | Servo turret with live tools |
| Optional: tooling | Tooled-up machine to customer need |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Spinner 18
This turning center is used to train students and staff on the machine type found in production shops: bar work through the spindle bore, boring with dedicated bar holders, turret tool management and programmable lubrication. It also covers machining of medium-diameter parts that call for high torque and a good finish.
- ITI Operator Advanced Machine Tools and turner trades: turning-center operation and offsets.
- Diploma in production engineering: boring, facing and bar-fed turning programs, building on manual boring with Boring Bars with Holder.
- B.E./B.Tech manufacturing labs: surface finish and cycle-time studies, compared with parting off by hand using a Parting Tool Holder.
- Advanced courses on live tooling or bar feeders, where those options are ordered.
Standard Scope of Supply
The machine is supplied with its standard features: three boring bar holders, one axial tool holder, the 8-station turret, coolant system, centralised lubrication with lube oil collector and the air-conditioned electrical panel. Probe, bar feeder, part catcher and other options are supplied only when they are on the quotation.
Packing, MOQ and Lead Time
Request a quotation for a single turning center or for a group of CNC machines. Each quotation sets out the packing, delivery time and price for the quantity requested, and chosen options, tooling or other TVET workshop equipment can appear on the same document.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Tanzania, Uganda, the UAE, Saudi Arabia, Oman and the Philippines. Science Lab Supplies is registered for GST (GSTIN 06ADEPJ0574F2ZU). List the options you want, such as the bar feeder or live tools, in a message on the contact page or beside the machine in the enquiry cart; tender buyers will find the process on the lab tender page.
Frequently Asked Questions
What kind of work is the Spinner 18 meant for?
It is aimed at medium-diameter turned components, and its big-bore spindle allows larger stock to pass through the spindle for bar work, supported by a high-torque spindle drive.
Can live tooling be added?
A servo turret with live tools is listed as an option. The standard machine has an 8-station bi-directional turret with three boring bar holders and one axial holder.
Who supplies the Spinner 18?
This turning center is supplied by Science Lab Supplies from Ambala, India, and options, tooling and companion CNC machines can be added to the same quotation.
Is it a trainer or an industrial machine?
It is an industrial CNC turning center that suits advanced training. Keep the guards closed and let trainees work on it only under supervision.
