Electro Pneumatic Trainer
Product Code : LSK-CTM-10789

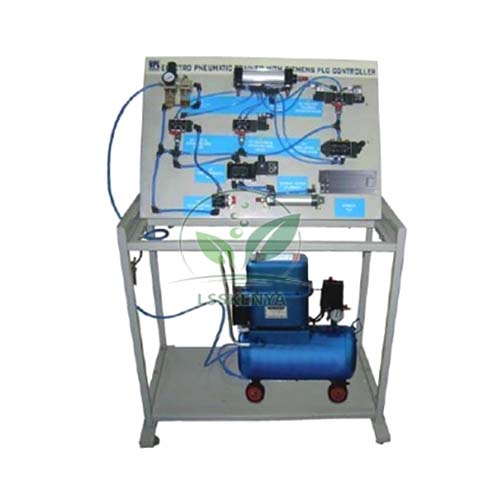

Electro Pneumatic Trainer (SKU LSK-CTM-10789) demonstrates the design, construction and use of electro-pneumatic components and circuits, from basic pneumatic control to relay logic with solenoid valves and proximity sensors. Students assemble circuits on a profile plate and run them from an electrical control panel. Engineering departments and TVET centres use it for automation practicals. The trainer reaches institutes, contractors and distributors through Science Lab Supplies, which prepares quotations and dispatch from Ambala, India.
Specifications
Valves, cylinders, sensors, panel and tubing of the electro-pneumatic bench are listed component by component in the table. In short, the kit pairs 25 mm bore cylinders with 5/2 and 3/2 solenoid valves, AND and OR logic valves, an FRL unit, inductive sensors and a pneumatic motor, controlled from a powder-coated MS panel.
| Specification | Value |
|---|---|
| SKU | LSK-CTM-10789 |
| Block manifold | 1/4 in, 6 ways |
| AND valve | Dual pressure valve, 1/4 in |
| OR valve | Shuttle valve, 1/4 in |
| Single-acting cylinder | 25 mm bore x 100 mm stroke, foot mounting |
| Double-acting cylinder | 25 mm bore x 100 mm stroke, foot mounting |
| Silencer | Sintered, 1/4 in |
| Air service unit | AFR / FRL, 1/4 in, 0–10 kg/cm² |
| Solenoid valves | 2 nos: 5/2 way and 3/2 way, 1/4 in, 230 VAC / 24 V DC |
| Flow control valve | 1/4 in (F), square body |
| Non-return valve | 1/4 in |
| Male connector | 1/4 in |
| Indicating lamp | 24 VDC |
| Proximity sensors | Inductive, 2-wire, 18 mm diameter, 5 mm sensing distance |
| Pressure gauge | 0–7 kg/cm², 1/2 in BSP, 100 mm dial |
| Relay module | 24 V DC, 2 NO/NC contacts, panel mounting |
| Pneumatic motor | Unidirectional, 22,000 RPM free speed, 0–90 psi |
| Control panel | MS powder coated; switches, indicators, test points and controller on front fascia |
| Panel wiring | DIN-rail terminal connectors; 1 sq mm multistrand wire with insulated lugs and ferrules; 1 x 1 in PVC cable tray |
| Panel dimensions | 1 x 1 x 1 ft |
| Tubing | Polyurethane, 4 x 0.75 mm, 4 mm inner / 6 mm outer diameter; 10 m transparent, 10 m blue |
| Connectors | Quick push-pull, sufficient for branching circuits |
| Logic board | Relay board for logic circuit operation |
| Mounting | Profile plate |
| Teaching aids | Training manuals and mimic charts |
| Optional air compressor | 25 L tank, 2 CFM, 2 HP, 230 V AC, 5–6 kg/cm² |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Electro Pneumatic Trainer
The trainer is used to teach pneumatic and electro-pneumatic control: direct and indirect cylinder control, AND/OR logic with dual-pressure and shuttle valves, speed control with flow valves, and relay-logic sequences triggered by proximity sensors and push buttons on the panel.
- B.E./B.Tech mechatronics and fluid power labs: electro-pneumatic circuit design, extended to larger plugboard circuits on the Industrial Pneumatics Training Equipment.
- Diploma in mechanical, electrical or mechatronics engineering: relay-logic control, compared with electronic gates on a Versatile 6-in-1 Logic Gate Apparatus.
- ITI mechatronics and electrician-related modules: solenoid valves and sensors.
Standard Scope of Supply
The trainer is supplied with the components in the table, the profile plate, electrical control panel, relay board, tubing and enough push-pull connectors to branch the circuits, plus training manuals with mimic charts. The air compressor is optional and quoted only when requested.
Packing, MOQ and Lead Time
You can get a quotation for a single trainer, with or without the compressor, or for several stations. Each quotation gives the packing, delivery time and price for the quantity, and hydraulic or PLC trainers can join the same vocational training equipment order.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in the Philippines, Nepal, Bangladesh, Zambia, Rwanda and South Africa. Say whether the optional compressor is wanted when you write through the contact page; the enquiry cart keeps the trainer with any hydraulic benches, and the lab tender page is the starting point for tenders.
Frequently Asked Questions
Is an air compressor included?
No, it is optional. The listed compressor has a 25-litre tank, 2 CFM discharge and a 2 HP, 230 V motor with 5–6 kg/cm² working pressure.
What sensors does the trainer use?
It uses inductive two-wire proximity sensors of 18 mm diameter with a 5 mm sensing distance, wired to a 24 V DC relay module on the panel.
Who supplies the Electro Pneumatic Trainer?
Science Lab Supplies supplies the trainer from Ambala, India, quoting it with or without the compressor for colleges, institutes, contractors and distributors.
What safety points apply?
Switch off air and power before changing connections, secure tubing in the push-pull fittings and keep hands clear of moving cylinders, under supervision.
