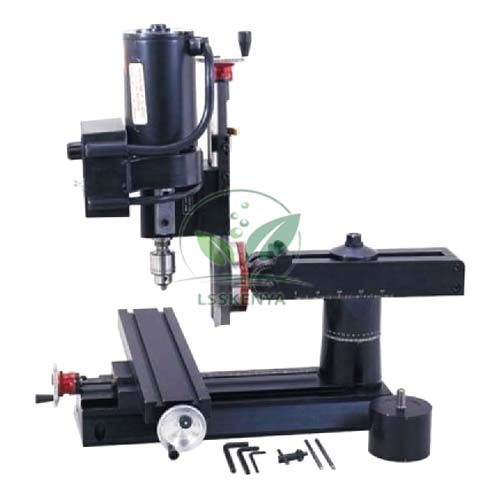

8 Directional Vertical Milling
Product Code : LSK-CTM-10792
8 Directional Vertical Milling (SKU LSK-CTM-10792) is a compact vertical milling machine with a 70 x 330 mm table, an adjustable throat and a 90 V DC spindle motor whose electronic control gives continuously variable speed from 70 to 2800 RPM. It suits small precision parts and conventional milling lessons before students move to CNC. ITIs, polytechnics and TVET workshops use it for machining practice. Workshops, contractors and distributors can obtain a quotation for this bench mill from Science Lab Supplies in Ambala, India.
Specifications
Spindle, table, travel and motor data of the bench vertical mill fill one row each in the table. In short, it offers 229 x 178 x 137 mm of X, Y and Z travel, up to 229 mm between table and spindle and two T-slots, and its DC motor controller accepts any mains input from 100 to 240 VAC at 50 or 60 Hz.
| Specification | Value |
|---|---|
| SKU | LSK-CTM-10792 |
| Hole through spindle | 10 mm |
| Spindle nose thread | 3/4-16 TPI |
| Max. clearance, table to spindle | 229 mm |
| Throat | Adjustable |
| Table size | 70 x 330 mm |
| Hold-down provision | 2 T-slots |
| X-axis travel | 229 mm |
| Y-axis travel | 178 mm |
| Z-axis travel | 137 mm |
| Motor | 90 V DC with electronic speed control |
| Input supply | Any input from 100 to 240 VAC, 50 or 60 Hz, converted automatically |
| Spindle speed range | 70–2800 RPM |
| Speed control | Continuously variable, electronic |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the 8 Directional Vertical Milling
The machine is used to teach the fundamentals of milling by hand: squaring a block, facing, slotting, drilling and boring small holes, and choosing spindle speed for the cutter and material. Its wide speed range and small table make it well suited to bench training and fine work.
- ITI machinist and tool and die maker trades: conventional milling exercises, with squared blocks measured on an Electronic Digital Vernier Caliper.
- Diploma in mechanical engineering: workshop practice in milling and drilling.
- B.E./B.Tech workshop technology: speed selection and small-part machining, with worn end mills resharpened on a Universal Tool and Cutter Grinder.
- TVET workshop modules and model-making projects.
Standard Scope of Supply
The 8 Directional Vertical Milling machine is supplied as a single unit as described above, with its DC motor, electronic speed control, adjustable throat and T-slotted table. Cutters, vices, clamps and any optional accessories are not part of the standard unit and are listed separately on the quotation.
Packing, MOQ and Lead Time
A quotation can be raised for one milling machine or for a full row of bench machines. It gives the packing, delivery time and price for the quantity requested, and tooling or other workshop tools for technical training institutes can be listed with it.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Zambia, Rwanda, South Africa, Qatar, Sri Lanka and Vietnam. Science Lab Supplies is registered for GST (GSTIN 06ADEPJ0574F2ZU). For a row of bench mills, give the count and mains voltage on the contact page or with the machine in the enquiry cart; institutions bidding formally can refer to the lab tender page.
Frequently Asked Questions
What spindle speeds does this mill offer?
The spindle speed is continuously variable from 70 to 2800 RPM through electronic control of the 90 V DC motor, so the speed can be matched to the cutter size and workpiece material.
Is this a CNC machine?
The listing describes a manually operated vertical milling machine with electronic speed control; no CNC control is specified. It suits conventional practice before students move to CNC mills.
Who supplies the 8 Directional Vertical Milling?
Science Lab Supplies supplies this bench mill from Ambala, India, and can price it singly or as a workshop set with cutters and vices for training institutes and contractors.
What power supply is needed?
The speed controller accepts 100 to 240 VAC at 50 or 60 Hz. Wear eye protection and keep hands clear of the cutter while it turns.
