CNC Trainer Milling Machine
Product Code : LSK-CTM-10772

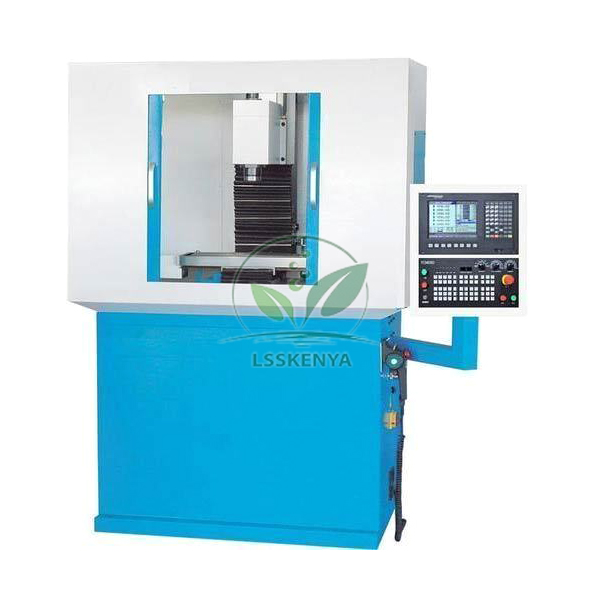

CNC Trainer Milling Machine (SKU LSK-CTM-10772) is a three-axis CNC vertical mill with a 200 x 600 mm table, a 3 HP spindle and a PC-based CNC controller. It is specified for college trainer labs, toolroom machine shops and die-making training in ITI, polytechnic, B.Tech and TVET courses. Engineering institutes, tender contractors and distributors can source it from Science Lab Supplies in Ambala, India.
Specifications
Traverse, feed, spindle, control and power data for the 3 HP trainer mill each occupy one row of the table. Summarised, it moves 400 mm in X, 150 mm in Y and 300 mm in Z, carries up to 100 kg, runs its spindle at 80–4000 rpm with cutting feeds to 4000 mm/min, and draws a 5 kVA three-phase load.
| Specification | Value |
|---|---|
| SKU | LSK-CTM-10772 |
| Table size | 200 x 600 mm |
| T-slots | 3 / 12 / 28 mm |
| Max. safe load on table | 100 kg |
| X-axis traverse | 400 mm |
| Y-axis traverse | 150 mm |
| Z-axis traverse | 300 mm |
| Table to spindle face | 200 mm |
| Cutting feed rate | 1–4000 mm/min |
| Rapid feed rate X/Y/Z | 2 m/min on each axis |
| Spindle speed | 80–4000 rpm |
| Max. spindle power | 3 HP |
| Taper | Single tool |
| Tool changing | Manual tool changing system |
| Positioning accuracy | ±0.05 |
| Repeatability | ±0.05 |
| Control system | PC-based CNC controller |
| Codes defined | G, M, T, F, I, S, J, K |
| High-speed inputs | 4 sets (50 ms) |
| Analog output | 1 set |
| Operating mode | Master / slave |
| Storage | USB disk compatible |
| PC interface | RS232 |
| Simulation | Graphical simulation |
| Total connected load | 5 kVA |
| Power supply | 415 V, 50 Hz, 3 phase |
| Necessaries and consumables | Standard |
| Users | College trainer, toolroom machine shop, die maker |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the CNC Trainer Milling Machine
The trainer mill is used for programming and machining face, pocket, slot, contour and drilling jobs on parts up to the 200 x 600 mm table. Graphical simulation lets trainees check a program before cutting, which suits CNC milling practicals in ITIs, diploma and B.Tech labs, toolroom courses and TVET centres.
- ITI Machinist, Tool and Die Maker and CNC operator courses: milling programs and setups, contrasted with conventional work on the Universal Milling Machine.
- Diploma and B.Tech production labs: CAD/CAM to machine with a PC-based controller.
- TVET machining modules: simulation, dry run and first-part cutting, with milling cutters reground on the Universal Tool and Cutter Grinder.
Standard Scope of Supply
The CNC Trainer Milling Machine is supplied as described above: the three-axis mill with its PC-based controller and the standard necessaries and consumables listed in the specification. Cutting tools, a vice and any optional accessories you need are listed separately on the quotation.
Packing, MOQ and Lead Time
Request a quotation for one trainer mill or for a full CNC training bay. Each quotation from Science Lab Supplies states the packing, delivery time and price for that quantity, and a matching trainer lathe or other TVET workshop equipment can be added.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in South Africa, Qatar, Sri Lanka, Vietnam, Malaysia and Peru. Science Lab Supplies is registered for GST (GSTIN 06ADEPJ0574F2ZU). Trainer-mill questions can be written up on the contact page, the mill and its tooling can be grouped in the enquiry cart, and the lab tender page covers institutes that buy by tender.
Frequently Asked Questions
What control system does it use?
A PC-based CNC controller that reads G, M, T, F, I, S, J and K codes, offers graphical simulation and a master/slave mode, accepts a USB disk and connects to a PC through RS232.
What power supply does the machine need?
It needs 415 V, 50 Hz, three-phase power with a total connected load of 5 kVA. Have a qualified electrician prepare the connection before installation, and let trainees run the machine only under supervision.
Who supplies the CNC Trainer Milling Machine?
This trainer mill is supplied by Science Lab Supplies, Ambala, India. Engineering colleges, ITIs and toolroom training centres can request a quotation directly, as can tender contractors and distributors purchasing on their behalf.
