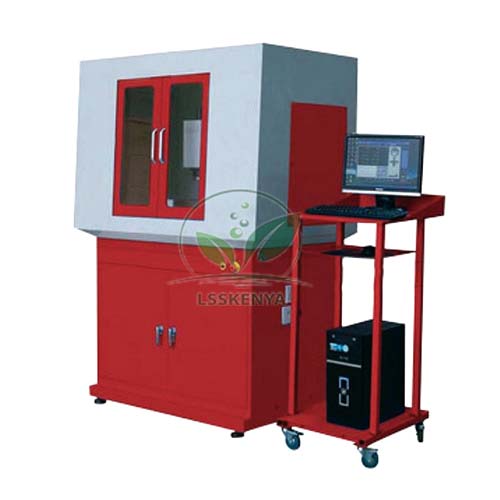

CNC Milling Machine Floor Model
Product Code : LSK-CTM-10767
CNC Milling Machine Floor Model (SKU LSK-CTM-10767) is a free-standing three-axis CNC vertical mill with a 1 kW spindle and a 500 x 160 mm T-slotted table, sized for teaching part programming and machining of small components. It serves ITI, polytechnic, engineering-college and TVET machine shops. Technical institutes, training centres, tender contractors and distributors can obtain it through Science Lab Supplies, which quotes the machine from Ambala, India.
Specifications
Each axis, motor and size figure for this floor-standing mill appears as a separate row below. In short, the table moves 280 mm in X, 120 mm in Y and 270 mm in Z on 4 Nm X/Y and 6 Nm Z feed motors, the 1 kW spindle runs from 100 to 5000 rpm, and positioning precision is 0.015 mm.
| Specification | Value |
|---|---|
| SKU | LSK-CTM-10767 |
| Worktable size | 500 x 160 mm |
| Max. worktable load | 35 kg |
| Number of T-slots | 3 |
| T-slot size | 12 mm |
| X-axis table travel | 280 mm |
| Y-axis table travel | 120 mm |
| Z-axis table travel | 270 mm |
| Throat | 232 mm |
| Drilling capacity | 16 mm |
| Spindle speed | 100–5000 rpm |
| Spindle motor | 1 kW |
| X-axis feed motor | 4 Nm |
| Y-axis feed motor | 4 Nm |
| Z-axis feed motor | 6 Nm |
| Feeding speed (X/Y/Z) | 500 mm/min |
| Max. moving speed (X/Y/Z) | 2 m/min |
| Positioning precision | 0.015 mm |
| Machine size (L x W x H) | 1280 x 895 x 1845 mm |
| Packing size (L x W x H) | 1420 x 1060 x 2035 mm |
| Gross weight | 570 kg |
| Net weight | 510 kg |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the CNC Milling Machine Floor Model
The machine is used to teach G-code programming, work setting and tool offsets, then to mill faces, pockets, slots and drilled hole patterns in small parts. It fits CNC and machining courses in ITIs, polytechnics, B.Tech manufacturing labs and TVET centres where trainees need a real machine rather than simulation.
- ITI Machinist and CNC operator courses: setting up and running milling programs, after manual milling practice on the Universal Milling Machine.
- Diploma and B.Tech mechanical engineering: manufacturing technology and CAD/CAM practicals.
- TVET machining modules: face milling, pocketing, contouring and drilling exercises, with small parts clamped in a Drilling Machine Vice.
Standard Scope of Supply
The CNC Milling Machine Floor Model is supplied as a single floor-standing machine as described above, packed in a case of 1420 x 1060 x 2035 mm with a gross weight of 570 kg. Cutting tools, vices and any optional accessories are listed separately on the quotation.
Packing, MOQ and Lead Time
You can request a quotation for one machine or for a complete CNC lab, and each quotation from Science Lab Supplies states the packing, delivery time and price for that quantity. Lathes, controllers and other TVET lab equipment for the same workshop can go on one quotation.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in the Philippines, Nepal, Bangladesh, Zambia, Rwanda and South Africa. When planning a CNC lab, state the number of floor mills on the contact page, gather matching lathes and controllers in the enquiry cart, or follow the lab tender page for institutional bids.
Frequently Asked Questions
How does the floor model differ from the table model?
The floor model has a larger 500 x 160 mm table rated for 35 kg, longer travel, a 1 kW spindle to 5000 rpm and a 16 mm drilling capacity. The table model has a 400 x 145 mm table rated for 20 kg, a 500 W spindle and a 10 mm drilling capacity.
Can it be quoted for an institute tender?
Yes. Send the quantity, delivery location and tender specification, and the quotation will list the machine item-wise against the specification on this page, ready for your bid file.
Who supplies the CNC Milling Machine Floor Model?
It is supplied by Science Lab Supplies from Ambala, India. ITIs, polytechnics, engineering colleges, tender contractors and distributors receive item-wise quotations directly, and the mill can be combined with lathes or controllers from the same CNC range on one order.
