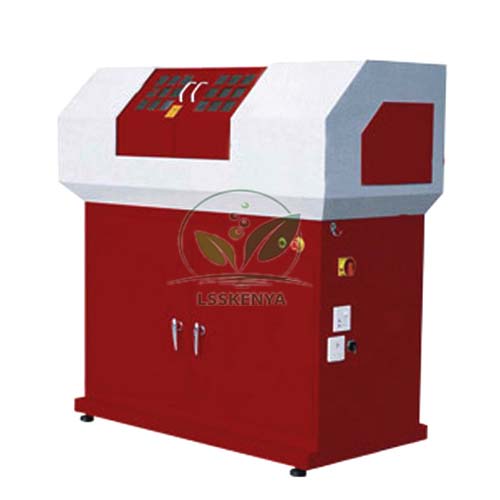

CNC Lathe Machine Floor Model
Product Code : LSK-CTM-10769
CNC Lathe Machine Floor Model (SKU LSK-CTM-10769) is a free-standing two-axis CNC turning machine with a 250 mm swing over bed, 450 mm between centres and a 4-station, 360-degree tool turret. It is used to teach CNC turning in ITIs, polytechnics, engineering colleges and TVET machine shops. Science Lab Supplies prepares quotations for it in Ambala, India, for institutes as well as tender contractors and distributors.
Specifications
The floor lathe's swing, travel, motor and accuracy values are each given a row of their own below. Summed up, a 1 kW main motor drives the spindle at 100–3000 rpm, 4 Nm motors move the axes 180 mm in X and 320 mm in Z, and positioning precision is 0.015 mm with 0.01 mm repeatability.
| Specification | Value |
|---|---|
| SKU | LSK-CTM-10769 |
| Swing over bed | 250 mm (10 in) |
| Swing over carriage | 110 mm (4.3 in) |
| Distance between centres | 450 mm (18 in) |
| Bed width | 135 mm (5.3 in) |
| X-axis max. travel | 180 mm (7 in) |
| Z-axis max. travel | 320 mm |
| Spindle speed | 100–3000 rpm |
| Main motor power | 1 kW |
| X/Z axis motors | 4 Nm |
| X/Z feeding speed | 500 mm/min |
| X/Z max. moving speed | 2 m/min |
| Tool turret | 4 station |
| Tool turret angle | 360 degrees |
| Turret return orientation precision | 0.005 mm |
| Tailstock travel | 50 mm (2 in) |
| Positioning precision | 0.015 mm |
| Repeat positioning precision | 0.01 mm |
| Machine size (L x W x H) | 1460 x 760 x 1450 mm |
| Packing size (L x W x H) | 1630 x 1070 x 1685 mm |
| Gross weight | 530 kg |
| Net weight | 440 kg |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the CNC Lathe Machine Floor Model
The lathe is used to teach turning programs: facing, straight and taper turning, grooving, chamfering and profile work, with tool changes from the 4-station turret. It fits CNC turning practicals in ITIs, diploma and B.Tech workshops and TVET machining modules, where trainees set tools, offsets and cutting speeds.
- ITI Turner and CNC operator courses: writing, proving and running turning programs, after manual facing, turning and boring practice on the Center Lathe Machine with Boring Bars with Holder.
- Diploma and B.Tech mechanical engineering: CNC turning in manufacturing technology labs.
- TVET machining modules: multi-tool jobs using the indexing turret.
Standard Scope of Supply
The CNC Lathe Machine Floor Model is supplied as one floor-standing machine as described above, with its 4-station turret and tailstock, packed in a case of 1630 x 1070 x 1685 mm. Turning tools, inserts and any optional accessories are listed separately on the quotation.
Packing, MOQ and Lead Time
You may request a quotation for one lathe or for a full CNC turning section. Each quotation from Science Lab Supplies sets out the packing, delivery time and price for the quantity you name, and milling machines or other vocational training equipment can be quoted with it.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Bangladesh, Zambia, Rwanda, South Africa, Qatar and Sri Lanka. Ask about turning-section quantities via the contact page, keep a running list of lathes and tooling in the enquiry cart, or see the lab tender page for tendered orders.
Frequently Asked Questions
What size of work can this lathe turn?
It swings 250 mm over the bed and 110 mm over the carriage, with 450 mm between centres, which covers the shafts and bushes used in training exercises.
How does it differ from the CNC Lathe Machine Table?
The floor model is larger: 250 mm swing, 450 mm centres, 1 kW motor and 4 Nm axis motors. The table version is a bench machine with a 200 mm swing and a 500 W motor.
Who supplies the CNC Lathe Machine Floor Model?
This floor lathe comes from Science Lab Supplies in Ambala, India. Polytechnics, ITIs and engineering colleges can deal with the supplier directly, and contractors or distributors purchasing for an institute can obtain the same item-wise quotation.
