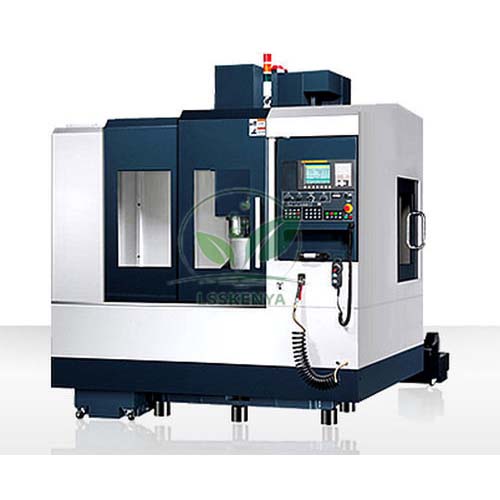

CNC Milling Machine
Product Code : LSK-CTM-10793
CNC Milling Machine (SKU LSK-CTM-10793) is a high-speed CNC machine for milling, cutting and drilling, with a built-in 24000 rpm spindle, a 20-tool automatic changer and 900 x 600 x 500 mm of axis travel. It is aimed at mould and die work, where fine finishes and long toolpaths demand high spindle speed. Engineering colleges, tool rooms and advanced TVET centres use it for high-speed machining training. Tool rooms, colleges, contractors and distributors can ask Science Lab Supplies in Ambala, India, to quote and supply this machine.
Specifications
The high-speed CNC mill is listed with a short set of figures, and each one appears in its own row below. In short, a built-in spindle reaches 24000 rpm, the axes travel 900, 600 and 500 mm, cutting feed runs from 1 to 20,000 mm/min and an automatic changer holds 20 tools for milling, cutting and drilling.
| Specification | Value |
|---|---|
| SKU | LSK-CTM-10793 |
| Machine type | CNC milling machine |
| Also used as | CNC cutting machine; CNC drilling machine |
| X-axis travel | 900 mm |
| Y-axis travel | 600 mm |
| Z-axis travel | 500 mm |
| Spindle | Built-in |
| Spindle speed | 24000 rpm |
| Cutting feed rate | 1–20,000 mm/min |
| Automatic tool changer | 20 tools |
| Cutting type | High performance, high-speed cutting |
| Intended work | Mould and die machining |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the CNC Milling Machine
The machine is used to teach high-speed machining of moulds, dies and complex surfaces: generating 3D toolpaths in CAM, choosing small cutters and high spindle speeds, running long multi-tool programs with the 20-tool changer and finishing cavities. Its 900 mm X travel also handles larger plates and fixtures.
- Diploma in tool and die making: CNC machining of mould cavities and die inserts, with die blocks set at angles in a Tilting and Swiveling Vice.
- B.E./B.Tech manufacturing and CAD/CAM labs: 3D surface toolpaths and high-speed cutting, compared with depth, speed and feed trials on a Milling Tool dynamometer.
- ITI Operator Advanced Machine Tools trade: multi-tool milling and drilling programs.
- Tool room and industry upskilling courses in high-speed machining.
Standard Scope of Supply
The CNC Milling Machine is supplied as a single machine as described above, with its built-in spindle and 20-tool automatic tool changer. Cutting tools, holders, work holding and any optional items are not named among the standard items, so they are set out separately on the quotation.
Packing, MOQ and Lead Time
You can request a quotation for one machine or for several machines for a tool room or CNC centre. Each quotation states packing, delivery time and price for that quantity, and tooling or other TVET workshop equipment can be priced on the same document.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Rwanda, South Africa, Qatar, Sri Lanka, Vietnam and Malaysia. Note the tool holders and work holding you would like with the mill on the contact page or in the enquiry cart; for a tool room funded by tender, start from the lab tender page.
Frequently Asked Questions
What is this CNC milling machine designed for?
It is designed for high-speed cutting in mould and die work, and it can also carry out general milling, cutting and drilling operations under CNC control with its 20-tool changer.
How large is the working area?
The axis travel is 900 mm in X, 600 mm in Y and 500 mm in Z, with cutting feed rates from 1 to 20,000 mm/min.
Who supplies the CNC Milling Machine?
Supply is handled by Science Lab Supplies from Ambala, India, which can price the machine with tooling and companion CNC or grinding machines for colleges, tool rooms and contractors.
What precautions apply at 24000 rpm?
Use only tools and holders rated for the spindle speed, keep the guards closed during cutting and let trainees operate it only under supervision.
