Spin Train
Product Code : LSK-CTM-10777

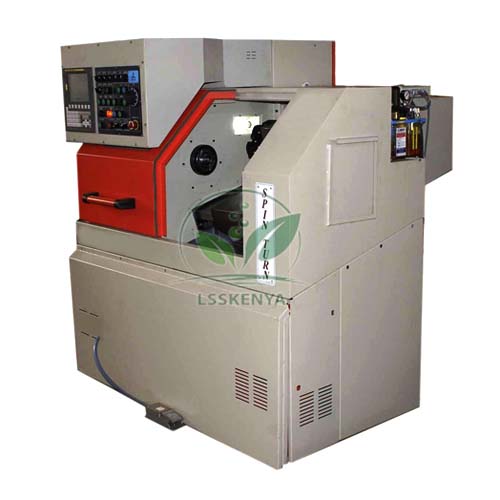

Spin Train (SKU LSK-CTM-10777) is a CNC turning trainer from a trainer series designed for learning, combining CNC teaching with the production of precision turned components. It has an 8-station turret, 300 mm between centres and a 100 mm turning diameter, and suits ITIs, polytechnics, engineering colleges and TVET centres. Institutes, tender contractors and distributors can request it through Science Lab Supplies, Ambala, India.
Specifications
Capacity, stroke, turret and standard-system details of the Spin Train each take one row below. In short, it swings 200 mm, turns parts up to 100 mm diameter and 170 mm long between 300 mm centres, strokes 150 mm on X and 200 mm on Z, and comes with a CNC system, coolant, lubrication and chip collection.
| Specification | Value |
|---|---|
| SKU | LSK-CTM-10777 |
| Swing over | 200 mm |
| Between centres | 300 mm |
| Turning diameter | 100 mm |
| Turning length | 170 mm |
| X stroke | 150 mm |
| Z stroke | 200 mm |
| Job holding | 150 mm |
| Turret | 8 station |
| Spindle | With induction motor or servo motor |
| CNC system | With axis motors and drives (standard) |
| Coolant system | Standard |
| Lubrication system | Standard |
| Chip collector | With chip bin (standard) |
| Optional accessories | Voltage stabiliser, air compressor, automatic tool changer, chip conveyor with chip bin, tooling system with tools, CAD/CAM software, coolant through spindle (CTS), multiple simulation-software user licences, job holding fixtures/pallets, special tooling, panel air conditioner |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Spin Train
The Spin Train is used to teach CNC turning from first programs to multi-tool jobs, since the 8-station turret lets one program face, turn, groove, drill and thread without stopping. Optional simulation licences allow trainees to prepare programs on PCs before running them on the machine in ITI, diploma, B.Tech and TVET courses.
- ITI Turner and CNC operator courses: programming and running multi-tool turning jobs, after manual knurling practice with the Knurling Tool Holder.
- Diploma and B.Tech production labs: CAD/CAM to finished precision parts.
- TVET machining modules: turret tooling, offsets and coolant use, with turned threads checked against a Thread Gauge.
Standard Scope of Supply
Standard accessories are the spindle with induction or servo motor, the CNC system with axis motors and drives, coolant system, lubrication system, and chip collector with chip bin. Options include a voltage stabiliser, air compressor, automatic tool changer, chip conveyor, tooling system, CAD/CAM software, coolant through spindle, multi-user simulation licences, fixtures, special tooling and panel air conditioner.
Packing, MOQ and Lead Time
Request a quotation for one Spin Train or for a full CNC turning bay, with or without the optional items above. Each quotation from Science Lab Supplies states the packing, delivery time and price for that configuration, and a Mill Train or other vocational training equipment can be added.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Peru, Egypt, Iraq, Nigeria, Kenya and Ghana. List the optional accessories you want on the contact page, collect the Spin Train and Mill Train in the enquiry cart, or follow the tender route on the lab tender page.
Frequently Asked Questions
What size of part can the Spin Train turn?
It turns up to 100 mm diameter and 170 mm length, with 300 mm between centres and a 200 mm swing, while job holding is 150 mm and the X and Z strokes are 150 mm and 200 mm.
What comes as standard and what is optional?
Standard: spindle motor, CNC system with axis motors and drives, coolant, lubrication and chip collector. Items such as an automatic tool changer, chip conveyor, CAD/CAM software and stabiliser are optional.
Can trainees practise programs away from the machine?
Yes. Multiple user licences of CNC simulation software are available as an option, so several trainees can write and simulate programs on PCs before running them on the machine.
Who supplies the Spin Train?
Science Lab Supplies is the supplier of the Spin Train, based in Ambala, India. ITIs, polytechnics and engineering colleges can obtain a quotation for the standard or optional configuration directly, and tender contractors and distributors can too.
Related CNC Turning Trainers and Mill Train
The Spin Train is the turning half of a trainer pair with the Mill Train, and other lathes suit different course levels, from bench trainers to turning centres. These CNC Trainer Machine items can be compared with it and quoted together on one request.
- Mill Train — Y stroke of 225 mm, Z stroke of 350 mm and a 10 m/min rapid.
- CNC Trainer Lathe Machine — 2-station linear turret taking 16 x 16 tool shanks and boring bars up to 32 mm.
- CNC Lathe Machine Floor Model — 135 mm bed width in a 1460 x 760 x 1450 mm machine.
- CNC Lathe Trainer Stepper — cut-viewer operating software and a hydraulic or manual tailstock.
- CNC Semi Production Lathe — flat or 45-degree slant bed with 420 mm between centres.
- Flexible Manufacturing System — 45-degree slant bed, 125 mm hydraulic chuck and X/Z travel of 80/280 mm.
- Spinner 18 — CNC turning centre with an 8-station bi-directional turret and a big-bore spindle.
Browse the full CNC Trainer Machine range, the Metal Manufacturing Training Machine range for lathe tool holders and thread gauges, or all TVET lab equipment.
