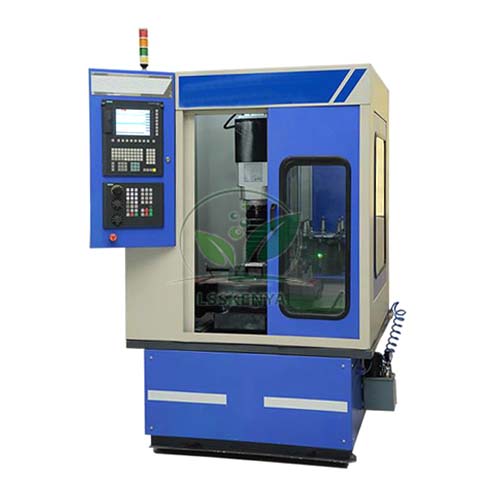

CNC Semi Production Mill
Product Code : LSK-CTM-10782
CNC Semi Production Mill (SKU LSK-CTM-10782) is a servo-driven vertical CNC milling machine with an industrial controller, designed so educational institutes can give students hands-on experience of industrial machining while keeping the safety features of a trainer. Polytechnics, engineering colleges and TVET centres use it for CNC milling practice. Quotations for this mill come from Science Lab Supplies in Ambala, India, which supplies it to training institutes, tender contractors and resellers.
Specifications
Every listed figure for the semi-production mill is given its own row below. In summary, servo motors move three axes on LM guideways over 300 x 225 x 250 mm, a 3 HP spindle runs from 100 to 4000 RPM, the 560 x 220 mm table carries up to 120 kg and an automatic changer holds 8 or 12 tools.
| Specification | Value |
|---|---|
| SKU | LSK-CTM-10782 |
| Axis motor and drive | Servo motors with servo drives |
| X-axis travel | 300 mm |
| Y-axis travel | 225 mm |
| Z-axis travel | 250 mm |
| Spindle to column distance | 270 mm |
| Feed rate | 0–10,000 mm/min |
| Rapid travel | 10,000 mm/min |
| Guideways | LM guideways |
| Table size | 560 x 220 mm |
| T-slots | 3 x 10 x 50 |
| Load on table | 120 kg |
| Spindle motor | 3 HP |
| Spindle speed | 100–4000 RPM |
| Positioning | 0.010 mm |
| Repeatability | ±0.005 mm |
| Resolution | 0.001 mm |
| Tool changer | Automatic, 8 / 12 tools |
| Maximum tool length / diameter | 40 mm / 16 mm |
| Vice type | Pneumatic / manual |
| Controller | Industrial controller |
| Dimensions | 1300 x 1100 x 1900 mm |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the CNC Semi Production Mill
The mill bridges the gap between a basic trainer and a full production VMC. Students write and prove milling programs, use the automatic tool changer and industrial controller, and machine real parts on servo-driven axes, which suits institutes that want industrial practice with trainer-style safety features.
- ITI machinist and Operator Advanced Machine Tools trades: CNC milling set-up and operation.
- Diploma mechanical engineering: face, pocket, slot and drilling cycles, with blunt cutters reground on a Universal Tool and Cutter Grinder.
- B.E./B.Tech CAD/CAM labs: machining CAM programs on an industrial control, and studying depth, speed and feed effects with a Milling Tool force dynamometer.
- TVET project work: fixtures and training parts held in the pneumatic or manual vice.
Standard Scope of Supply
The CNC Semi Production Mill is supplied as a single machine with servo-driven axes, LM guideways, the 3 HP spindle, the automatic tool changer in the 8- or 12-tool version you choose, and a pneumatic or manual vice. Cutting tools and any optional items are listed separately on the quotation.
Packing, MOQ and Lead Time
A quotation can be prepared for one mill or for a CNC workshop with several machines. It will state the packing, delivery time and price for that quantity, and a matching semi-production lathe or other vocational training equipment can be quoted alongside.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Ghana, Ethiopia, Tanzania, Uganda, the UAE and Saudi Arabia. State whether you need the 8- or 12-tool changer and a pneumatic or manual vice in a note on the contact page or with the mill in the enquiry cart; the lab tender page handles tender work.
Frequently Asked Questions
What does semi production mean for this mill?
The listing describes a mill designed for educational institutes that gives hands-on experience of industrial machines through an industrial controller and servo drives, while keeping the safety features of a trainer machine.
How many tools can the changer hold?
The automatic tool changer is offered with 8 or 12 tools, for tools up to 40 mm long and 16 mm in diameter. Choose the version when you request a quotation.
Who supplies the CNC Semi Production Mill?
Science Lab Supplies supplies this mill from its base in Ambala, India. Tooling and companion CNC trainers can be priced with it for institutes, contractors and distributors.
What workpiece load can the table carry?
The 560 x 220 mm table is rated for 120 kg and has three T-slots. Clamp work securely and keep guards closed while the spindle runs, with an instructor present.
