CNC Milling Controller
Product Code : LSK-CTM-10776

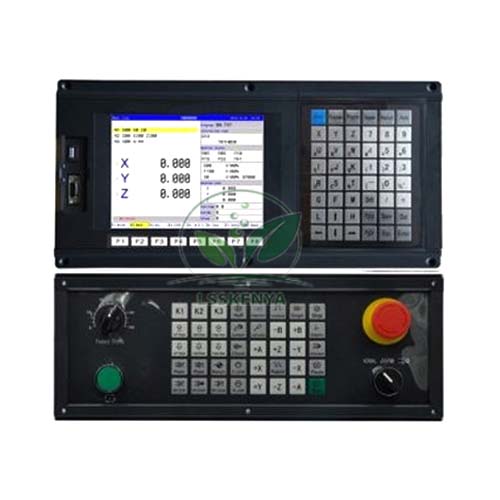

CNC Milling Controller (SKU LSK-CTM-10776) is a six-axis CNC control system for milling machines that drives up to six stepper or servo motors plus an independent servo spindle, and supports automatic tool magazines. It serves CNC control and retrofit training in engineering colleges, polytechnics and TVET centres, and its listed applications extend to woodworking, metal and glass processing machines. Science Lab Supplies in Ambala, India, offers the controller to institutes, tender contractors and distributors.
Specifications
The 6-axis controller's motion, I/O, storage and communication functions are each given a single row. In brief, it drives six stepper or servo motors plus a servo spindle at pulse rates up to 1 MHz, with 56 inputs, 48 outputs, two 0–10 V channels, a PWM port and 256 MB of storage expandable to 8 GB.
| Specification | Value |
|---|---|
| SKU | LSK-CTM-10776 |
| Axis movement | 6-axis |
| Interpolation | 6-axis interpolation linkage |
| Motor control | 6 stepper or servo motors |
| Spindle | Independent servo spindle |
| Pulse frequency | Up to 1 MHz |
| Speed processing | Speed look-ahead for smooth transitions |
| Tool change support | Straight-line magazine, disc magazine, cylinder tool change |
| Magazine features | Customisable |
| Inputs | 56 |
| Outputs | 48 |
| Analog output | 2 channels, 0–10 V |
| PWM analog control port | 1 set |
| Built-in storage | 256 MB electronic disk |
| Storage expansion | Up to 8 GB |
| Communication | USB, Ethernet, serial |
| Media | U disk, SD card |
| MPG | Runs G-code from the MPG |
| G-code tools | Track preview, real-time tracking, syntax check |
| System functions | Self-diagnosis; parameter backup and recovery |
| Listed applications | Wooden furniture and handicrafts, metal parts, glass panels, flexible processing lines |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the CNC Milling Controller
In training, the controller is used to teach CNC system set-up: wiring axes and I/O, configuring a tool magazine, previewing and checking G-code, and running programs with the MPG. In industry, the same controller runs machines for furniture and wood carving, metal parts, glass panels and flexible milling, grinding and polishing lines.
- Diploma and B.Tech mechatronics labs: multi-axis motion control and interpolation, building on the sensor and solenoid-valve circuits of the Electro Pneumatic Trainer.
- ITI and TVET CNC courses: program preview, syntax checking and MPG operation, with automatic tool change seen in use on the 20-tool magazine of the Smart Mill 500.
- Retrofit projects: upgrading a manual or older CNC mill with tool-change support.
Standard Scope of Supply
The CNC Milling Controller is supplied as a single control unit with the functions and ports described above. Motors, drives and the machine itself are separate items; if you need them, or any optional accessories, list them in your enquiry so they appear on the same quotation.
Packing, MOQ and Lead Time
Quotations can be made for one controller or several units for a CNC control lab. Each quotation from Science Lab Supplies sets out packing, delivery time and price for that quantity, and CNC machines or other TVET workshop equipment can be added.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Malaysia, Peru, Egypt, Iraq, Nigeria and Kenya. Science Lab Supplies is registered for GST (GSTIN 06ADEPJ0574F2ZU). Share your axis count and motor type on the contact page, add the controller to the enquiry cart with any machines, or use the lab tender page if a tender applies.
Frequently Asked Questions
How many axes can this controller run?
It controls six stepper or servo motors with six-axis interpolation linkage, plus an independent servo spindle, and outputs pulses at up to 1 MHz for smooth, fast axis motion.
Does it support automatic tool changers?
Yes. It supports straight-line and disc magazines and cylinder tool change, and magazine features can be customised to match the tool changer fitted to the milling machine.
How are programs loaded?
Programs can be transferred by USB, Ethernet, serial link, U disk or SD card and stored on the 256 MB built-in disk, expandable to 8 GB.
Who supplies the CNC Milling Controller?
The milling controller is supplied by Science Lab Supplies, which works from Ambala, India. An institute can request a quotation directly, and tender contractors and distributors buying control equipment for a CNC lab can also ask for one.
