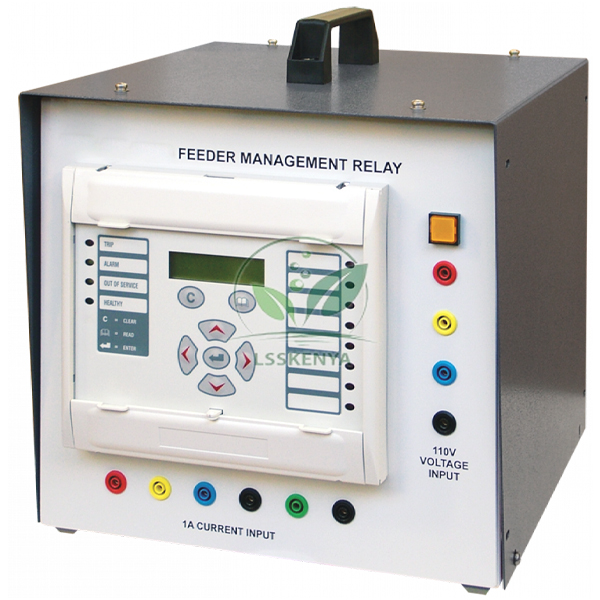

Feeder Management Relay
Product Code : LSK-EPS-10532
Feeder Management Relay (SKU LSK-EPS-10532) is a feeder protection relay presented in an educational format for studying the protection and monitoring of overhead lines and underground cables. It works with the Protection Relay Test Set in B.Tech and diploma power systems laboratories. Colleges, training institutes, tender contractors and distributors can have it quoted and sent from Ambala by Science Lab Supplies, a laboratory equipment exporter from India.
Specifications
Every function of the feeder relay is given its own row in the table that follows. In short, the module sits in a robust carrying enclosure on the test set desk, connects through a multi-core cable and safety leads, and combines four overcurrent stages with voltage, frequency and several earth fault functions.
| Specification | Value |
|---|---|
| SKU | LSK-EPS-10532 |
| Relay type | Feeder management relay, educational format |
| Application | Protection and monitoring of overhead lines and underground cables |
| Housing | Robust enclosure with carrying handle |
| Mounting | Desk area of the Protection Relay Test Set |
| Connection | Multi-core cable and safety leads |
| Programming | Keypad and display, or software supplied with the test set on a suitable computer |
| Overcurrent | Four independent directional/non-directional stages |
| Stages 1 and 2 | Each settable to any of ten IDMT curves |
| Stages 3 and 4 | Direct time characteristic |
| Voltage | Under and overvoltage |
| Residual overvoltage | Yes |
| Negative sequence overvoltage | Yes |
| Earth fault | Directional/non-directional |
| Sensitive earth fault | Directional/non-directional |
| Wattmetric earth fault | Yes |
| Restricted earth fault | Yes |
| Negative sequence overcurrent | Directional/non-directional |
| Thermal overload protection | Yes |
| Frequency | Under and over frequency |
| Broken conductor | Yes |
| Selectable blocking | Yes |
| Records | Fault and disturbance records |
| Simultaneous testing | Test set connections for two relay modules |
| Other use | Optional ancillary for selected power systems products |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Feeder Management Relay
With fault circuits set up on the test set, students program the relay for a feeder and record how each protection element responds. Because it combines overcurrent, voltage, frequency and earth fault functions in one unit, a single relay supports several distribution protection practicals.
- B.E./B.Tech protection lab: directional and non-directional overcurrent on radial feeders.
- Sensitive and wattmetric earth fault tests for cable networks.
- Under/over voltage and frequency settings, compared with the fuse and breaker behaviour seen on the Circuit Breaker Trainer.
- Diploma electrical courses: reading fault and disturbance records, with system-level studies on the Electrical Power System Simulator.
Test circuits are mains-derived, so change connections with the supply isolated and run tests with a qualified supervisor present.
Standard Scope of Supply
You receive the relay module in its enclosure with carrying handle, programmable from its keypad and display. The Protection Relay Test Set, which carries the programming software, and a suitable computer are ordered separately; cables and any optional accessories are itemised on the quotation.
Packing, MOQ and Lead Time
A quotation can be prepared for one relay or for a set of protection relays with the test set. It shows packing, delivery time and price for the requested quantity, and other engineering lab equipment in India from this range can be added.
Science Lab Supplies holds an Importer-Exporter Code as a registered exporter and can ship to buyers in Sri Lanka, Vietnam, Malaysia, Peru, Egypt and Iraq. Science Lab Supplies is registered for GST (GSTIN 06ADEPJ0574F2ZU). Request feeder relay pricing on the contact page, keep a shortlist in the enquiry cart, or check the lab tender page before submitting a bid.
Frequently Asked Questions
What networks does the relay model?
It is intended for the protection and monitoring of overhead lines and underground cables, the two feeder types studied in distribution protection practicals, with earth fault settings for each.
How many IDMT curves are available?
The first two of its four overcurrent stages can each be set to any of ten IDMT curves; the remaining two stages use a direct time characteristic.
Who supplies the Feeder Management Relay?
Orders for this relay are handled by Science Lab Supplies in Ambala, India, which can place it on one quotation with the test set and other power system modules.
Can it be used with equipment other than the test set?
Yes. Besides the Protection Relay Test Set, it is an optional ancillary for selected products in the power systems range; please name your unit when you enquire.
Related Distribution and Line Protection Items
Feeder protection links the relay to real distribution and transmission circuits. The test set provides the fault circuits, the trainers and busbar module model feeders and lines for the relay to protect, and the other relays cover overcurrent, differential and distance schemes on the same quotation.
