Disc Sander Belt
Product Code : LSK-WWM-10637

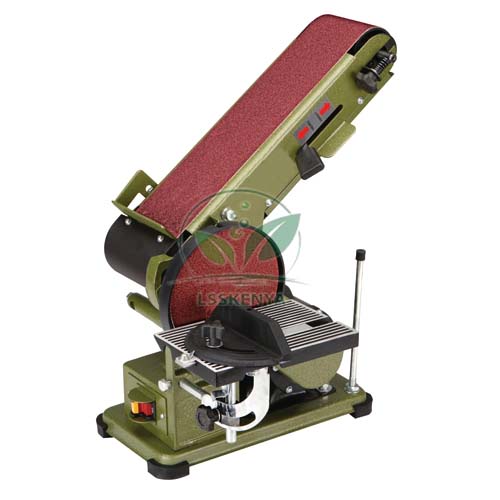

Disc Sander Belt (SKU LSK-WWM-10637) is a bench-top combination machine with a 4 x 36 in sanding belt and a 6 in sanding disc driven by one motor. The belt sands flat work and inside and outside curves, while the disc handles smaller pieces and end grain. It is used in ITI, polytechnic and TVET carpentry shops. Science Lab Supplies sends the machine from Ambala, India to institutes, tender contractors and distributors on order.
Specifications
Belt, disc, motor and table data for the combination sander are broken out into single rows below. In short, a 120 V motor rated 1/2 HP (3/4 HP peak) in a cast iron housing drives the belt at 1150 FPM and the disc at 1780 RPM, beside a cast aluminium table that tilts from 0 to 60 degrees.
| Specification | Value |
|---|---|
| SKU | LSK-WWM-10637 |
| Sanding belt size | 4 in W x 36 in L (approx. 100 x 915 mm) |
| Belt speed | 1150 FPM |
| Sanding disc diameter | 6 in (approx. 152 mm) |
| Disc speed | 1780 RPM |
| Voltage | 120 V |
| Motor power | 1/2 HP rated, 3/4 HP peak |
| Motor housing | Cast iron |
| Table and disc material | Cast aluminium |
| Table tilt | 0 to 60 degrees |
| Table position | Can be repositioned for use with belt or disc |
| Mitre gauge | 0 to 60 degrees left/right |
| Switch | Toggle safety switch |
| Grit | 80 |
| Abrasives included | One 80 grit sanding belt and one 80 grit sanding disc |
| Overall dimensions | 24-3/4 in H x 15 in W x 14 in D |
| Weight | 37.5 lb (approx. 17 kg) |
| Shipping weight | 40.05 lb (approx. 18.2 kg) |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Disc Sander Belt
Trainees use the machine to shape and smooth parts after sawing: fairing curves on the belt, squaring ends and sanding bevels on the disc against the tilted table and mitre gauge. It suits the ITI Carpenter trade, TVET woodwork modules and model-making work in polytechnics.
- ITI Carpenter trade: finishing curved and straight edges after profiles are cut with the Portable Jig Saw Machine.
- TVET woodwork modules: sanding accurate bevels and mitres first cut on the Mitre and Table Saw.
- Design and model-making courses: shaping small parts on the disc.
Keep fingers clear of the abrasive, hold the work down firmly on the table, and wear eye and dust protection.
Standard Scope of Supply
The machine comes with one 80 grit sanding belt and one 80 grit sanding disc already included, together with the tilting table and mitre gauge. Spare belts, discs in other grits and a dust extractor can be listed on the quotation.
Packing, MOQ and Lead Time
Ask for a quotation for one sander or several for a whole workshop. The quotation gives the packing, delivery time and price for that quantity; because the motor is listed at 120 V, state your mains voltage so the offer matches your supply.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Bangladesh, Zambia, Rwanda, South Africa, Qatar and Sri Lanka. Put your question to us on the contact page or add this combination sander to the enquiry cart; buyers working to a tender schedule can refer to the lab tender page.
Frequently Asked Questions
Is this a belt sander or a disc sander?
Both. One motor drives a 4 x 36 in belt and a 6 in disc, and the table can be repositioned to work with either. The belt suits flat work and curves, the disc smaller pieces.
Which abrasives are included?
One 80 grit sanding belt and one 80 grit sanding disc come with the machine. Finer or coarser grits can be added to the quotation.
What voltage does it run on?
The motor is listed at 120 V. Tell us your mains supply through the contact page so the quotation can address it, since workshops on 220-240 V mains need a matching arrangement.
Who supplies the Disc Sander Belt?
This combination sander is supplied by Science Lab Supplies from Ambala, India, for ITI and TVET institutes, colleges, tender contractors and distributors of TVET workshop equipment, with spare belts and discs available on the same quotation.
