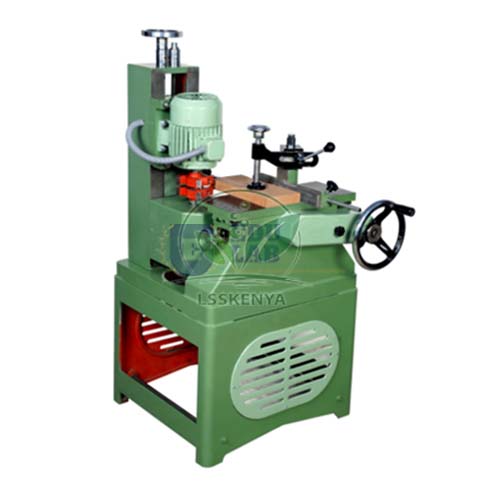

Tenoning Machine
Product Code : LSK-WWPT-10735
Tenoning Machine (SKU LSK-WWPT-10735) is a stationary woodworking machine that cuts the tenon, the projecting tongue of a mortise-and-tenon joint, on the end of a rail. It serves furniture, door and window frame work in the joinery sections of ITI, polytechnic and TVET workshops. From its base in Ambala, India, Science Lab Supplies can deliver the machine to joinery training centres, colleges, tender contractors and distributors.
Specifications
Each figure for this twin-cutter tenoner has its own row below. In short, two carbide cutter blocks, each 5 in in diameter and 0.875 in wide, run on separate 2 HP, 2800 RPM three-phase motors, while stock rides an 18 x 7 in table with 8 in of travel to form tenons up to 5 in long.
| Specification | Value |
|---|---|
| SKU | LSK-WWPT-10735 |
| Cutter blocks | 2 nos. |
| Cutter block material | Carbide |
| Cutter block diameter | 5 in (127 mm) |
| Cutter block width | 0.875 in (22 mm) |
| Motors | 2 |
| Motor power | 2 HP each |
| Motor speed | 2800 RPM |
| Power supply | 3 phase |
| Maximum tenon length | 5 in (127 mm) |
| Table size | 18 x 7 in (457 x 178 mm) |
| Table movement | 8 in (203 mm) |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Tenoning Machine
Instructors use the machine to show trainees how a tenon is cut to a consistent length, shoulder and cheek thickness before it is fitted into a mortise. It suits the joinery units of the ITI Carpenter trade, TVET carpentry modules and furniture-making practicals in polytechnics.
- ITI Carpenter trade: cutting tenons for frames, doors and window sashes, on rails first cut to length with the Circular Saw Machine, with the matching mortise cut on the mortiser.
- TVET joinery modules: repeatable joints for batch work on furniture parts, after the rails are squared on a Jointer Planer.
- Polytechnic furniture courses: setting tenon length and shoulder position.
The cutters turn at high speed on a three-phase supply, so connect the machine through an electrician and let trainees use it only with guards fitted and under supervision.
Standard Scope of Supply
The machine is supplied as a single unit as described above, with its two carbide cutter blocks and two 2 HP motors; any optional accessories, spare tooling or dust extraction are listed on the quotation. State your workshop power supply when you enquire.
Packing, MOQ and Lead Time
Ask Science Lab Supplies for a quotation for one machine or a complete joinery workshop; each quotation sets out the packing, delivery time and price for that quantity. A mortiser, dust collector or other TVET workshop equipment can be listed on the same quotation.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Iraq, Nigeria, Kenya, Ghana, Ethiopia and Tanzania. To price a tenoner for your joinery section, send the details through the contact page or the enquiry cart; institute tenders are handled on the lab tender page.
Frequently Asked Questions
What does a tenoning machine do?
It cuts the tenon on the end of a timber rail so that it fits a matching mortise. This model uses two carbide cutter blocks and forms tenons up to 5 in (127 mm) long.
What power supply does this model need?
Its two 2 HP motors run at 2800 RPM on a three-phase (3 PH) supply, so the workshop needs a three-phase connection, made by a qualified electrician, before installation.
Who supplies the Tenoning Machine?
Science Lab Supplies, based in Ambala, India, supplies this tenoner to ITI and TVET institutes, polytechnics, tender contractors and distributors, and can add other joinery machines from its range to the same quotation.
Can it be quoted for an institute tender?
Yes. Send the quantity, delivery location and tender specification through the contact page, and the quotation will list the twin-cutter tenoner item-wise against the cutter, motor and table figures given above.
