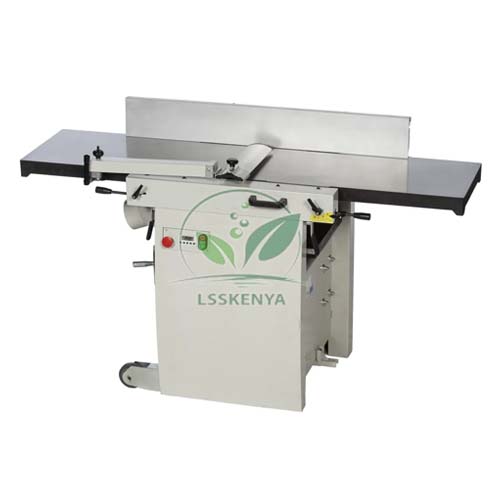

Jointer Planer
Product Code : LSK-WWPT-10714
Jointer Planer (SKU LSK-WWPT-10714) is a combined woodworking machine that surfaces the face of a board and straightens its edge (jointing), then switches quickly to planing. A 3 HP induction motor drives a 12 in wide cutter, and a built-in dust chute serves both operations. Carpentry and joinery trainees in ITI, polytechnic and TVET workshops use it to prepare square, true timber. The planer is available to institutes, tender contractors and distributors from Science Lab Supplies in Ambala, India.
Specifications
Every technical detail of the machine is given in the table below. In short, it changes quickly between jointing and planing with the fence left in place, carries an extra-large extruded aluminium fence with centred controls, and makes 5,500 cuts per minute, up to 1/8 in deep and 12 in wide.
| Specification | Value |
|---|---|
| SKU | LSK-WWPT-10714 |
| Functions | Jointing and planing |
| Changeover | Quick changeover between jointing and planing |
| Fence during changeover | Can stay in position |
| Cutting width | 12 in (305 mm) |
| Cutting depth | 1/8 in (3.2 mm) |
| Cuts per minute | 5,500 |
| Motor | 3 HP induction motor |
| Current | 12.5 A |
| Tool length | 55 in (1397 mm) |
| Fence | Extra-large extruded aluminium |
| Fence controls | Centred, for quick adjustment |
| Dust handling | Built-in dust chute for both operations |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Jointer Planer
The jointer planer is the first machine in the stock-preparation sequence. Trainees flatten one face, joint an edge square to it against the fence, then plane the board to thickness, learning to read grain direction, set depth of cut and check work with a try square.
- ITI Carpenter and Wood Work Technician trades: face and edge preparation of rough timber, including timber dried in a Kiln Drying Oven.
- Furniture and cabinet-making modules: preparing stock before joints are cut on a Chisel Mortise Machine.
- Polytechnic carpentry shop practice in civil and mechanical diplomas.
- Vocational training equipment for building and joinery programmes.
The rotating cutter is a serious hazard. Use push blocks for short or thin stock, keep guards set, connect dust extraction and run the machine only under supervision.
Standard Scope of Supply
The Jointer Planer is supplied as a single machine as described above, with its 3 HP induction motor, extruded aluminium fence and built-in dust chute. A dust extractor is a separate item; if your workshop needs one, it can be added from the same range.
Packing, MOQ and Lead Time
Request a quotation for one machine or for a complete carpentry shop; it states packing, delivery time and price for the quantity. Saws, moulders and dust collection from the same range can share that quotation, making it simple to buy workshop tools for technical training institutes together.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Nigeria, Kenya, Ghana, Ethiopia, Tanzania and Uganda. Carpentry shops can open a quotation for the jointer planer on the contact page or through the enquiry cart, and purchases made under a tender belong on the lab tender page.
Frequently Asked Questions
What is the difference between jointing and planing?
Jointing flattens a face and straightens an edge against the fence; planing then brings the board to an even thickness. This machine does both, with a quick changeover and a fence that can stay in place.
How wide a board can it handle?
The cutting width is 12 in (about 305 mm), with a maximum cutting depth of 1/8 in (about 3.2 mm) per pass at 5,500 cuts per minute.
Who supplies the Jointer Planer?
Science Lab Supplies supplies it from Ambala, India, as part of its wood workshop range for TVET and ITI training, and can quote it alongside saws, moulders and dust collection for a complete carpentry shop.
What electrical supply does it need?
The motor is a 3 HP induction unit drawing 12.5 A. Confirm your workshop supply voltage when you ask for a quotation so the correct motor wiring is offered.
