Woodworkers Table Saw Machine
Product Code : LSK-WWM-10634

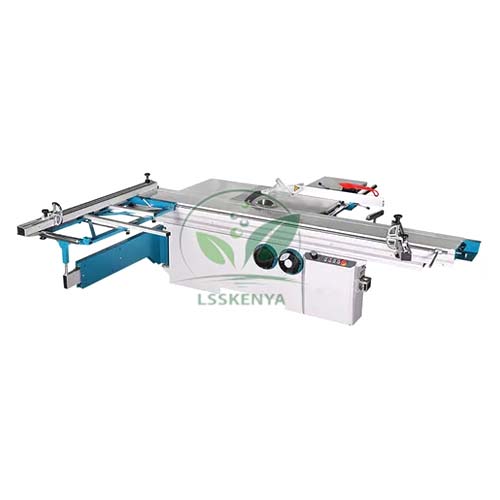

Woodworkers Table Saw Machine (SKU LSK-WWM-10634) is a heavy table saw with a tilting main blade, a separate lining (scoring) saw and a long sliding worktable for accurate rip, cross and bevel cuts in solid timber and sheet panels. It suits furniture and joinery workshops in ITI, polytechnic and TVET institutes. Science Lab Supplies arranges supply from Ambala, India for institutes, tender contractors and distributors that order the machine.
Specifications
Main saw, lining saw and sliding table figures for this 350 mm panel saw are split into single rows below. In short, a 4 to 5.5 kW motor drives the tilting main blade at 4200 or 5500 rpm, a 0.75 kW lining saw scores the face ahead of it, and the sliding table runs 3000 or 3200 mm.
| Specification | Value |
|---|---|
| SKU | LSK-WWM-10634 |
| Max. main saw disc diameter | 350 mm |
| Main saw spindle diameter | 30 mm |
| Main saw spindle speed | 4200 / 5500 rpm |
| Main saw motor | 4 to 5.5 kW |
| Saw spindle tilt | 0 to 45 degrees |
| Max. perpendicular cutting thickness | 95 mm |
| Max. cutting thickness at 45 degrees | 65 mm |
| Lining (scoring) saw disc diameter | 120 mm |
| Lining saw spindle diameter | 22 mm |
| Lining saw spindle speed | 8000 rpm |
| Lining saw motor | 0.75 kW |
| Lining saw height movement | 0 to 5 mm |
| Sliding worktable length | 3000 / 3200 mm |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Woodworkers Table Saw
In training the machine is used to cut boards and full sheets of plywood, MDF or laminated board to size with clean, chip-free edges. Instructors teach fence and sliding-table setting, bevel cutting and safe feeding of large panels in carpentry and furniture courses.
- ITI Carpenter and furniture trades: sizing panels for cabinets and wardrobes.
- TVET joinery modules: rip, cross and 45-degree bevel cuts on stock first flattened on the Jointer Planer.
- Polytechnic interior and furniture design courses: batch cutting of project parts that are then joined with the Dowel Master.
The blades run at high speed with powerful motors: keep guards and the riving knife in place, use push sticks and allow operation only under supervision.
Standard Scope of Supply
The machine is supplied as a single unit as described above, with main saw, lining saw and sliding worktable; any optional accessories and spare blades are listed on the quotation. Confirm the table length and the electrical supply of your workshop when enquiring.
Packing, MOQ and Lead Time
A quotation can cover a single saw or a complete furniture workshop. It states the packing, delivery time and price for the quantity requested, and a dust collector or other TVET workshop equipment can be added on the same page.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Oman, the Philippines, Nepal, Bangladesh, Zambia and Rwanda. Workshops planning a panel-cutting bay can raise an enquiry on the contact page or through the enquiry cart, while tender submissions are explained on the lab tender page.
Frequently Asked Questions
What is the lining saw for?
The 120 mm lining saw scores the underside of a panel just ahead of the main blade, which helps give a clean edge on laminated or veneered board. Its height adjusts from 0 to 5 mm.
How thick a piece can it cut?
Up to 95 mm with the blade upright and 65 mm with the blade tilted to 45 degrees, using a main disc of up to 350 mm on the 30 mm spindle.
Who supplies the Woodworkers Table Saw Machine?
Science Lab Supplies supplies this sliding-table saw from Ambala, India, quoting it for ITI and TVET institutes, colleges, tender contractors and distributors of vocational training equipment, with spare blades or extraction on the same quotation if required.
Which sliding table length should I choose?
The table is listed at 3000 or 3200 mm. Choose by the length of the sheets you cut and your floor space, and state it on your enquiry.
Related Sawing Machines
Panel sizing is one part of a sawing bay. These machines from the two woodworking ranges add mitre cutting, portable site cutting, alternative panel and dimension saws, a radial arm saw and dust extraction, and each can share one quotation with the table saw.
- Mitre and Table Saw — 1800 W saw with a 255 x 30 x 3.0 mm blade at 5000 min-1.
- Portable Circular Saw — 210 mm blade cutting 70 mm deep at 90 degrees, supplied with 3 blades.
- Dimension Saw Machine — 300 mm main blade, 120 mm scoring blade and a 1250 mm rip width.
- Sliding Panel Saw Machine — 3150 mm cutting length with a 4 kW, 5800 rpm main saw motor.
- Circular Saw Machine — 14 in (355 mm) saw on a 30 x 32 in table, powered by a 3 HP motor.
- Radial Arm Saw — 10 in and 12 in blade sizes, automatic blade brake and 0-45 degree mitre capacity.
- Universal Dust Collector — made in various sizes and can be customised to the buyer's specification.
Browse the full Woodworking Workshop Machines range, the Wood Workshop Portable Tool range for stationary panel and radial saws, or all TVET lab equipment.
