Disc Sander
Product Code : LSK-WWM-10641

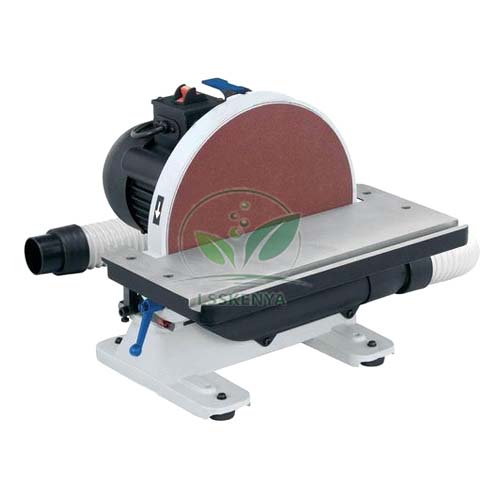

Disc Sander (SKU LSK-WWM-10641) is a bench machine that uses a 12 in abrasive disc to square ends, sand bevels and true outside curves on wooden parts. A 1 HP motor and cast iron base give steady all-day running in ITI, polytechnic and TVET carpentry workshops. Training institutes, tender contractors and distributors are supplied with it by Science Lab Supplies from its Ambala, India base.
Specifications
Motor, disc, table and base details of the 12 in disc sander are set out singly below. In short, a 1 HP, 110 V single-phase TEFC motor drawing 10 A turns the disc at 1725 RPM beside a 17-1/4 x 8-1/4 in cast aluminium table that tilts from 0 to 45 degrees, with a 2 in dust port.
| Specification | Value |
|---|---|
| SKU | LSK-WWM-10641 |
| Motor power | 1 HP |
| Voltage | 110 V |
| Phase | Single phase |
| Current | 10 A |
| Motor type | TEFC |
| Disc speed | 1725 RPM |
| Abrasive disc | Accepts 12 in (305 mm) PSA discs |
| Table material | Cast aluminium |
| Table size | 17-1/4 x 8-1/4 in (438 x 210 mm) |
| Table tilt | 0 to 45 degrees |
| Base | Cast iron with built-in dust port |
| Dust port | 2 in (51 mm) |
| Feet | Non-slip rubber |
| Mitre gauge | Included |
| Switch | Safety toggle on/off |
| Portability | Compact and completely portable |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Disc Sander
Trainees use the sander to bring sawn parts exactly to a line, square end grain, sand chamfers on the tilted table and fit mitres using the gauge. Its large disc suits end-grain and edge work in carpentry, furniture and pattern-making courses at ITI, TVET and polytechnic level.
- ITI Carpenter trade: squaring and trimming components to size after cross-cutting on the Radial Arm Saw.
- TVET joinery modules: sanding bevels and mitres with the gauge.
- Pattern-making and design courses: shaping convex profiles.
Sand only on the side of the disc moving down toward the table, keep fingers clear, wear eye protection such as Grinding Goggles, and connect dust extraction to the 2 in port.
Standard Scope of Supply
The Disc Sander is supplied as a single unit as described above, with its tilting table and mitre gauge; any optional accessories and 12 in PSA abrasive discs are listed on the quotation. The motor is listed at 110 V, so state your mains voltage when enquiring.
Packing, MOQ and Lead Time
A quotation can cover one machine or a set for a larger workshop. It gives the packing, delivery time and price for the quantity requested, and abrasive discs, a dust collector or other vocational training equipment can be added to the same quotation.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Qatar, Sri Lanka, Vietnam, Malaysia, Peru and Egypt. Send sander enquiries through the contact page, keep a running list in the enquiry cart, or follow the lab tender page when a formal bid is required.
Frequently Asked Questions
What size abrasive disc does it take?
It accepts 12 in (305 mm) PSA (pressure-sensitive adhesive) discs, which stick directly onto the disc. Spare discs in the grits you teach can be listed on the quotation.
Can it sand angles?
Yes. The cast aluminium table tilts from 0 to 45 degrees and a mitre gauge is included for angled work. Use the gauge to hold the work at a set angle while sanding.
How is it different from the Disc Sander Belt?
This model has a larger 12 in disc and a 1 HP motor but no belt. The Disc Sander Belt combines a 6 in disc with a 4 x 36 in belt.
Who supplies the Disc Sander?
Science Lab Supplies offers the 12 in disc sander from Ambala, India to ITI and TVET institutes, colleges, tender contractors and distributors of TVET workshop equipment, and PSA discs can be quoted with each machine.
