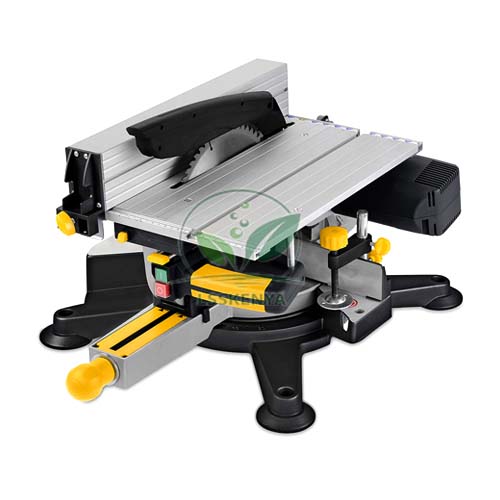

Mitre and Table Saw
Product Code : LSK-WWM-10635
Mitre and Table Saw (SKU LSK-WWM-10635) is a compact 1800 W combination saw that makes angled cross cuts and mitres as well as straight table cuts, using one 255 mm blade. It is a practical choice for carpentry, joinery and interior-fitting classes in ITI, polytechnic and TVET workshops. Science Lab Supplies, working from Ambala, India, offers it to training institutes, tender contractors and distributors.
Specifications
Mitre and bevel capacities of the 1800 W combination saw each get a separate row below. In short, it runs on 220 to 240 V AC, turns a 255 x 30 x 3.0 mm blade at 5000 min-1, cuts up to 46 mm deep on a 420 x 300 x 290 mm table and comes with a 3 m cable.
| Specification | Value |
|---|---|
| SKU | LSK-WWM-10635 |
| Rated power | 1800 W |
| Rated voltage | 220 to 240 V AC |
| Rotation speed | 5000 min-1 |
| Blade size | 255 x 30 x 3.0 mm |
| Max. cutting depth | 46 mm |
| Max. cutting capacity at 90 degrees | 46 mm |
| Capacity 90/90 degrees | 70 x 110 mm |
| Capacity 45/90 degrees | 40 x 110 mm |
| Capacity 90/45 degrees | 70 x 70 mm |
| Capacity 45/45 degrees | 35 x 60 mm (L) / 40 x 90 mm (R) |
| Table size | 420 x 300 x 290 mm |
| Sound power level | 106 dB(A) |
| Cable length | 3 m |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Mitre and Table Saw
Trainees use it to cut frame corners, skirting, architraves and short rip cuts, learning to set mitre and bevel angles accurately. One machine covers two jobs, which saves bench space in carpentry, joinery and shop-fitting practicals at ITI, TVET and polytechnic level.
- ITI Carpenter trade: mitred frames, mouldings and trims, with ends cleaned up on the Disc Sander.
- TVET joinery and interior-fitting modules: compound angle cuts, with corner joints pinned using the Nailer Gun.
- Polytechnic furniture courses: cutting small parts to length.
With a sound power level of 106 dB(A), users and people nearby need hearing protection; eye protection and supervised use are also required.
Standard Scope of Supply
The saw is supplied as a single unit as described above, with its 255 mm blade and 3 m cable; any optional accessories, stands or spare blades are listed on the quotation. State your mains voltage when enquiring, since the saw is rated for 220 to 240 V AC.
Packing, MOQ and Lead Time
Quotations are available for one saw or for enough units to equip a class. Each lists the packing, delivery time and price for the quantity you ask about, and other workshop tools for technical training institutes can be combined on the same quotation.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in the Philippines, Nepal, Bangladesh, Zambia, Rwanda and South Africa. Ask for a price on the contact page, collect the saw and its extras in the enquiry cart, or read the lab tender page before preparing a tender.
Frequently Asked Questions
What section can it cut square?
At 90/90 degrees the listed capacity is 70 x 110 mm. At 45-degree mitre and bevel it drops to 35 x 60 mm on the left and 40 x 90 mm on the right.
What blade does it use?
A 255 x 30 x 3.0 mm blade turning at 5000 min-1, driven by an 1800 W motor on 220 to 240 V AC. Spare blades of the same size can be added to the quotation.
Who supplies the Mitre and Table Saw?
It comes from Science Lab Supplies in Ambala, India, which quotes the combination saw as TVET workshop equipment for ITI and TVET institutes, colleges, tender contractors and distributors, singly or as part of a carpentry bay.
Is it loud?
Yes. The sound power level is 106 dB(A), so hearing protection is needed for the operator and anyone close by. Issue ear defenders and eye protection before each practical.
