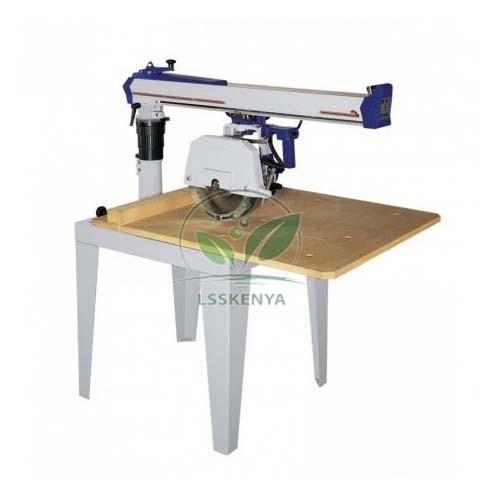

Radial Cross Cutting Machine
Product Code : LSK-WWPT-10731
Radial Cross Cutting Machine (SKU LSK-WWPT-10731) is a heavy radial saw for cutting timber across the grain, with a head that swivels and tilts for angled and bevel cuts. Its 4.5 HP motor and 305 or 355 mm blade suit joinery and furniture shops at ITI, polytechnic and TVET institutes. Science Lab Supplies, based in Ambala, India, offers it to institutes, contractors and distributors.
Specifications
Motor, head, table and cutting data for the radial cross-cutter follow row by row. In short, the main specification has a 4.5 HP motor at 2900 rpm and a saw head on eight rail bearings that swivels 0–180 degrees and tilts 0–90 degrees over a 900 x 1100 mm table; a second, 2.2 kW specification is also offered.
| Specification | Value |
|---|---|
| SKU | LSK-WWPT-10731 |
| Motor power | 4.5 HP |
| Motor speed | 2900 rpm |
| Blade diameter option 1 | 12 in (305 mm) |
| Blade diameter option 2 | 14 in (355 mm) |
| Spindle bore | 1 in (25.4 mm) |
| Rail bearings | 8 pcs |
| Head swivel | 0–180° |
| Head tilt | 0–90° |
| Maximum trimming width | 860 mm |
| Maximum cross-cutting length | 620 mm |
| Table area (L x W) | 900 x 1100 mm |
| Machine size | 1120 x 1100 x 1170 mm |
| Packing size | 1150 x 970 x 790 mm |
| Net weight | 200 kg |
| Second specification: maximum cutting length | 900 mm |
| Second specification: maximum cutting depth | 60 mm |
| Second specification: rotating speed | 2800 r/min |
| Second specification: power | 2.2 kW |
| Second specification: overall size (L x W x H) | 1300 x 820 x 1420 mm or 1500 x 820 x 1420 mm |
| Second specification: net weight | 230 kg / 250 kg |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Radial Cross Cutting Machine
The cross-cutting machine brings sawn timber to length and angle before planing and jointing. With its swivelling and tilting head, it suits ITI carpentry and furniture trades, TVET joinery and construction modules, and polytechnic workshops where trainees prepare cutting lists from heavier stock.
- Square cross cuts on boards up to 620 mm cutting length.
- Angled cuts with the head swivelled, and bevels with it tilted.
- Trimming wide boards up to 860 mm before they are dimensioned on the Combination Surface Planer and Thicknesser.
- Teaching guarding, blade selection and safe pull-through on a powered radial saw.
This saw produces heavy chips and dust; connect extraction, keep guards in place and allow operation only under supervision.
Standard Scope of Supply
The Radial Cross Cutting Machine is supplied as a single unit with its table, rails and saw head, as described above. Blades in the size you choose, extraction and optional accessories are listed separately on the quotation, which also states the specification offered.
Packing, MOQ and Lead Time
You can ask for a price on one machine or on a full wood-machining line. Each quotation gives the packing, delivery time and price for that quantity, and other TVET workshop equipment can be listed on the same document. The 1150 x 970 x 790 mm packing size helps plan site access.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Vietnam, Malaysia, Peru, Egypt, Iraq and Nigeria. Cross-cutting machine enquiries can go through the contact page or into the enquiry cart; colleges procuring by tender should open the lab tender page.
Frequently Asked Questions
How does it differ from the Radial Arm Saw?
This machine has a 4.5 HP motor, larger 305 or 355 mm blades, a 900 x 1100 mm table and weighs 200 kg. The Radial Arm Saw is a single-phase saw for 10 and 12 inch blades with an automatic blade brake.
What angles can it cut?
The head swivels from 0 to 180 degrees and tilts from 0 to 90 degrees, covering square, angled and bevel cuts on the 900 x 1100 mm table of the 4.5 HP specification.
Who supplies the Radial Cross Cutting Machine?
Science Lab Supplies supplies the cross-cutter from Ambala, India, quoting it to ITIs, polytechnics, TVET centres, tender contractors and distributors either on its own or with blades, extraction and other wood workshop machines.
Can it be quoted for a tender?
Yes. Send the tender specification, quantity and delivery location through the contact page or the lab tender route, and state which of the two specifications you need for an item-wise quotation.
