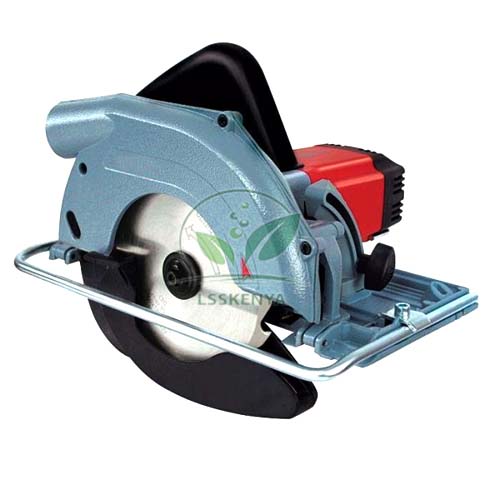

Portable Circular Saw
Product Code : LSK-WWM-10639
Portable Circular Saw (SKU LSK-WWM-10639) is a portable power saw with a 210 mm blade for straight and bevel cuts in timber and board, taken to the work rather than the work to a machine. Carpentry and construction sections of ITI, polytechnic and TVET institutes use it for framing, sheet cutting and site practice. Orders from institutes, tender contractors and distributors are fulfilled by Science Lab Supplies from Ambala, India.
Specifications
Blade, depth, motor and documentation details of the 210 mm portable saw fill the rows below. In short, a 1.6 kW single-phase motor on 220 V, 50 Hz spins the blade at 4000 rpm, cutting 70 mm deep at 90 degrees and 45 mm at a 45-degree bevel, and three blades come with it.
| Specification | Value |
|---|---|
| SKU | LSK-WWM-10639 |
| Blade size | 210 mm |
| Max. cutting depth at 90 degrees | 70 mm |
| Max. cutting depth at 45 degrees | 45 mm |
| Motor power | 1.6 kW |
| Phase | Single phase |
| Voltage | 220 V |
| Frequency | 50 Hz |
| Speed | 4000 rpm |
| Blades supplied | 3 |
| Manuals | Installation and operation manuals |
| Service manual | With circuit/system schematics |
| Documentation language | English |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Portable Circular Saw
Instructors use the saw to teach setting depth and bevel, marking and following a line, supporting the work so the kerf does not close, and safe handling of a portable saw. It fits carpentry, construction and building-services courses at ITI, TVET and polytechnic level.
- ITI Carpenter trade: cutting studs, joists and plywood sheet, then comparing the same cuts made on the floor-standing Radial Arm Saw.
- TVET construction carpentry modules: formwork and roof framing cuts, with fixings driven by the Nailer Gun.
- Polytechnic civil and interior courses: on-site sizing of boards.
Let trainees use it only after instruction, with eye and hearing protection, the lower guard working freely and the plug removed before blade changes.
Standard Scope of Supply
The saw is supplied with 3 blades, together with installation and operation manuals and a service manual with circuit and system schematics, all in English. Further blades or a carry case can be listed on the quotation alongside the saw and its three 210 mm blades.
Packing, MOQ and Lead Time
Science Lab Supplies can quote a single saw or a batch for a whole carpentry class. The quotation confirms the packing, delivery time and price for that quantity, and extra blades or other workshop tools for technical training institutes can be added.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Rwanda, South Africa, Qatar, Sri Lanka, Vietnam and Malaysia. If this saw is on your list, write to us via the contact page, drop it into the enquiry cart, or see the lab tender page for tender-based purchasing.
Frequently Asked Questions
How deep can it cut?
Up to 70 mm with the blade upright and 45 mm at a 45-degree bevel, using the 210 mm blade. Set the depth just below the board thickness for cleaner, safer cuts.
What comes with the saw?
Three blades, installation and operation manuals, and a service manual with circuit and system schematics in English. Further blades or a carry case can be added to the quotation if your class needs them.
What power supply does it use?
A single-phase 220 V, 50 Hz supply; the motor is rated 1.6 kW and runs the blade at 4000 rpm. Confirm your workshop supply when enquiring so the saw matches your sockets.
Who supplies the Portable Circular Saw?
Science Lab Supplies, located in Ambala, India, supplies the 210 mm saw as TVET workshop equipment to ITI and TVET institutes, colleges, tender contractors and distributors, and adds spare blades to the quotation on request.
