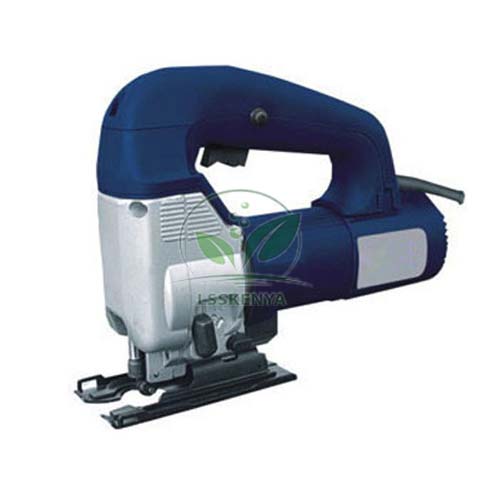

Portable Jig Saw Machine
Product Code : LSK-WWM-10640
Portable Jig Saw Machine (SKU LSK-WWM-10640) is a portable 580 W jigsaw whose narrow reciprocating blade cuts curves, circles and cut-outs in board and timber up to 65 mm thick. Carpentry, furniture and interior-fitting classes in ITI, polytechnic and TVET institutes use it for shaped work at the bench or on site. From Ambala, India, Science Lab Supplies quotes and supplies it to institutes, tender contractors and distributors.
Specifications
Speed, input, voltage and capacity of the 580 W portable jigsaw are entered row by row below. In short, it runs on 220 V with a variable no-load speed of 500 to 3000 r/min, so trainees can slow down for tight curves or harder material, and it cuts stock up to 65 mm thick.
| Specification | Value |
|---|---|
| SKU | LSK-WWM-10640 |
| Type | Portable jig saw |
| Cutting capacity | 65 mm |
| No-load speed | 500 to 3000 r/min |
| Rated input power | 580 W |
| Rated voltage | 220 V |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Portable Jig Saw
Trainees use this tool to cut sink and socket openings, curved shelf ends, templates and scribed fits, learning speed selection, blade choice and steady feed. Because it is carried to the job, it suits fitting-out exercises as well as bench work in carpentry and interior trades.
- ITI Carpenter trade: curved and internal cuts in plywood and board, starting from entry holes made on the Drilling Machine.
- TVET interior-fitting modules: cut-outs for sinks, sockets and fittings, with the surrounding faces smoothed by the Orbital Sander Machine.
- Polytechnic furniture and design courses: templates and shaped parts.
Clamp the work, keep the base plate flat on the surface, wear eye protection and switch off before changing blades.
Standard Scope of Supply
The Portable Jig Saw Machine is supplied as a single unit as described above; any optional accessories, blade assortments or carry cases are listed on the quotation. Name the materials and thicknesses your trainees will cut, up to the 65 mm capacity, so that suitable blades can be added.
Packing, MOQ and Lead Time
You can ask for one jigsaw or for a class set, and the quotation will state packing, delivery time and price for that number. Blades and other ITI trade tools can be included in the same quotation to simplify purchasing.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in South Africa, Qatar, Sri Lanka, Vietnam, Malaysia and Peru. Science Lab Supplies is registered for GST (GSTIN 06ADEPJ0574F2ZU). Request pricing through the contact page or the enquiry cart; colleges and institutes procuring by tender should start from the lab tender page.
Frequently Asked Questions
How is this different from the stationary jig saw?
This is a portable 580 W tool that goes to the work. The stationary Jig Saw Machine weighs about 60 kg and the work is fed across its table.
How thick a board can it cut?
The listed cutting capacity is 65 mm. Thinner stock and tight curves are easier at the lower end of the 500 to 3000 r/min range.
What supply does it need?
It is rated for 220 V with a 580 W input. If your workshop runs on a different mains voltage, mention it when you ask for a quotation so the offer can address it.
Who supplies the Portable Jig Saw Machine?
Science Lab Supplies supplies the portable jigsaw from Ambala, India. ITI and TVET institutes, colleges, tender contractors and distributors of TVET workshop equipment can order it singly, as a class set or with blades.
Related Power Tools for Shaped Work
These tools pair with a portable jigsaw: a bench jig saw for fine scroll work, drills for entry holes, a circular saw for long straight cuts, a router and planer for edges, a sander for curves and a stapler for assembly, all on one quotation.
- Jig Saw Machine — 24 in stationary machine weighing about 60 kg.
- Power Hand Drill — 10 mm capacity and a 1,250 rpm no-load speed.
- Impact Drilling Machine — 0-1,000 and 0-3,000 1/min speeds, with a 40 mm capacity in wood.
- Portable Circular Saw — 70 mm cutting depth at 90 degrees, with manuals and circuit schematics in English.
- Electric Router — plunge capacity of 0 to 2-3/8 in and a 1/2 in (12.7 mm) collet.
- Portable Planer — ambidextrous lock-off button and a spring-loaded park rest stand.
- Disc Sander Belt — belt sands inside and outside curves at 1150 FPM.
- Electric Stapler — portable stapler with a staple viewing window and built-in safety trigger.
Browse the full Woodworking Workshop Machines range, the Workshop Tools range for impact and hammer drills, or all TVET lab equipment.
Last updated: 9 October 2026
