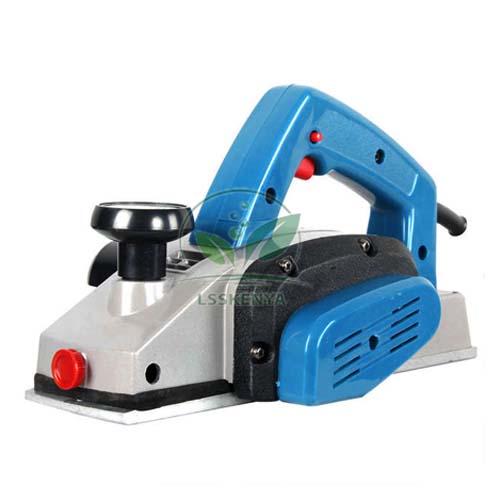

Portable Planer
Product Code : LSK-WWM-10643
Portable Planer (SKU LSK-WWM-10643) is a portable electric planer for reducing, levelling and chamfering timber: trimming doors, fitting frames and smoothing rough boards where a stationary planer is not practical. Carpentry and construction classes in ITI, polytechnic and TVET institutes use it for fitting and site practice. Science Lab Supplies, from its premises in Ambala, India, supplies the planer to institutes, tender contractors and distributors.
Specifications
Speed, depth, fence and safety features of the 16,500 RPM hand planer are each listed on a row below. In short, a 6.5 A motor drives a two-blade cutter, a ratcheting knob sets depth from 0 to 3/32 in (2.6 mm) in one revolution, and a bevel guide fence holds 0 to 45 degrees beside a blade shield.
| Specification | Value |
|---|---|
| SKU | LSK-WWM-10643 |
| Motor current | 6.5 A |
| No-load speed | 16,500 RPM |
| Depth of cut | 0 to 3/32 in (2.6 mm) |
| Depth setting | Ratcheting knob, full range within one revolution, no re-zeroing |
| Bevel guide fence | 0 to 45 degrees |
| Blade shield | Covers the section of blade not in use |
| Blade system | 2 blades |
| Blade conversion | Can be converted for large high-speed steel blades |
| Chip ejection | Selectable left or right |
| Park rest stand | Spring-loaded |
| Lock-off release button | Ambidextrous |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Portable Planer
Trainees use the planer to take timber down to a line, ease sticking doors, chamfer edges with the bevel fence and remove saw marks. It teaches depth setting, even pressure and safe handling of a fast cutter, and suits carpentry, joinery and building-construction courses.
- ITI Carpenter trade: fitting doors, frames and shelves, with hinge fixings drilled using the Power Hand Drill.
- TVET construction carpentry modules: trimming joists and studs on site.
- TVET joinery modules: chamfers and bevels up to 45 degrees on stock whose moisture content is checked first with the Moisture Meter.
The park rest keeps the blade off the bench when the tool is set down and the lock-off button helps avoid accidental starts; trainees should still unplug it before blade changes and wear eye protection.
Standard Scope of Supply
The Portable Planer is supplied as a single unit as described above, with its two-blade system and bevel guide fence; any optional accessories, spare blades or high-speed steel conversion blades are listed on the quotation. Tell us how many trainees will share each planer so a suitable stock of spare blades can be added.
Packing, MOQ and Lead Time
Quotations can be for one planer or for a full set of workshop tools for technical training institutes. Each states packing, delivery time and price for the quantity requested; spare blades can be added so the class is not held up by blunt cutters.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Vietnam, Malaysia, Peru, Egypt, Iraq and Nigeria. Carpentry instructors and buyers can ask for a price via the contact page or the enquiry cart, or review the lab tender page ahead of a formal tender.
Frequently Asked Questions
How deep does it cut per pass?
From 0 to 3/32 in (2.6 mm), set with a ratcheting knob that covers the full range in one revolution, so there is no need to re-zero.
Can it plane a bevel?
Yes. The bevel guide fence holds any angle from 0 to 45 degrees along the full length of the workpiece. Use it for chamfers on door edges, frames and shelving in joinery practicals.
Where do the shavings go?
Chip ejection can be directed to the left or right, so shavings are thrown away from the user. A dust mask and eye protection are still advised when planing indoors.
Who supplies the Portable Planer?
Supply of the portable planer comes from Science Lab Supplies in Ambala, India, which quotes it for ITI and TVET institutes, colleges, tender contractors and distributors of TVET workshop equipment, with spare blades if needed.
Related Planing and Shaping Tools
A hand planer works alongside stationary jointing, thicknessing and moulding machines, a router for profiles, a drum sander for final levelling, a circular saw for rough sizing and dust extraction for the shavings. These items from both woodworking ranges can be quoted together.
- Jointer Planer — 55 in tool length with an extra-large extruded aluminium fence.
- Combination Surface Planer and Thicknesser — 1660 x 410 mm planer table and a 7 m/min feed speed.
- Spindle Moulder Machine — 1300 x 315 mm sliding table and 100 mm of spindle up/down movement.
- Electric Router — all ball bearing construction with top-handle depth adjustment.
- Portable Drum Sander — micro height adjustment knob and a 2-1/2 in dust port.
- Portable Circular Saw — 210 mm blade on a 1.6 kW, single-phase 220 V motor.
- Universal Dust Collector — named for planer machines and universal woodworking machines, in customisable sizes.
Browse the full Woodworking Workshop Machines range, the Wood Workshop Portable Tool range for jointers, thicknessers and moulders, or all TVET lab equipment.
