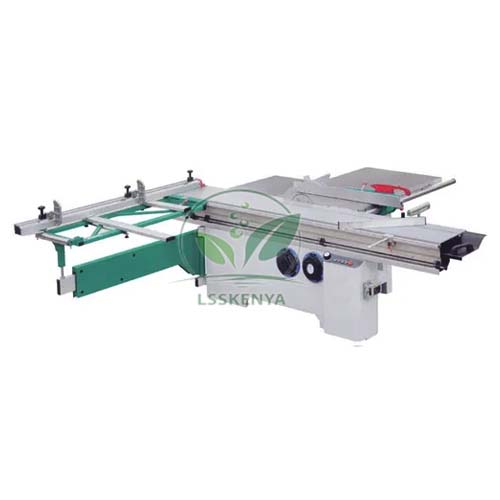

Sliding Panel Saw Machine
Product Code : LSK-WWPT-10724
Sliding Panel Saw Machine (SKU LSK-WWPT-10724) is a heavy panel saw with a 3150 mm cutting length, built to break down full sheets of plywood, MDF and laminated board into accurate parts. A scoring saw ahead of the main blade gives clean edges on faced panels. Furniture and joinery shops in ITI, polytechnic and TVET institutes use it for panel work. Institutes, contractors and distributors can obtain it from Science Lab Supplies in Ambala, India.
Specifications
Cutting length, blade and motor data for the panel saw follow in the table. In short, it offers a 3150 mm cutting length and weighs about 900 kg, which keeps it steady as long panels pass the blade; a 4 kW main saw motor runs at 5800 rpm and a 0.75 kW motor drives the 120 mm scoring saw.
| Specification | Value |
|---|---|
| SKU | LSK-WWPT-10724 |
| Cutting length | 3150 mm |
| Main saw bore | 30 mm |
| Main saw blade diameter | Confirmed on the quotation |
| Main saw motor power | 4 kW |
| Main saw speed | 5800 rpm |
| Scoring saw blade diameter | 120 mm |
| Scoring saw bore | 20 mm |
| Scoring saw motor power | 0.75 kW |
| Scoring saw speed | 7700 rpm |
| Net weight | 900 kg |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Sliding Panel Saw
The panel saw is used to cut sheet material to a cutting list for cabinets, wardrobes, shelving and doors. It suits ITI carpentry and furniture trades, TVET modular furniture and joinery modules, and polytechnic production workshops where trainees learn to size panels square and without edge chipping.
- Breaking down full sheets up to 3150 mm long into carcass parts, ready for jointing with the Dowel Master.
- Clean cuts on laminated and veneered board using the scoring saw.
- Preparing a cutting list and optimising sheet use in a furniture project.
- Teaching safe feeding, guarding and blade setting on a heavy saw.
Given its motor power and exposed blade, the saw should be run only by trained users under supervision, with guards fitted and dust extraction connected.
Standard Scope of Supply
The Sliding Panel Saw Machine is supplied as a single unit with its main saw and scoring saw drives, as described above. Spare blades, extraction and any other optional accessories are listed on the quotation, together with the main blade size to suit your panels.
Packing, MOQ and Lead Time
Quotations are available for a single panel saw or for a complete furniture workshop set-up. Each one gives the packing, delivery time and price for the quantity requested; with a 900 kg net weight, the packing details are worth checking against your site access.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Nepal, Bangladesh, Zambia, Rwanda, South Africa and Qatar. Science Lab Supplies is registered for GST (GSTIN 06ADEPJ0574F2ZU). A quotation for the panel saw can be requested on the contact page or built up in the enquiry cart, while institutes buying by tender can start from the lab tender page.
Frequently Asked Questions
How long a cut can the machine make?
The cutting length is 3150 mm, enough to cut standard full-size boards along their length in one pass, while the 120 mm scoring saw keeps the edges of faced panels clean.
How does it differ from the Dimension Saw Machine?
This saw has a longer 3150 mm cutting length and a larger 4 kW main motor, and weighs 900 kg. The Dimension Saw Machine has a 3000 x 320 mm sliding table and a 3 kW motor.
Who supplies the Sliding Panel Saw Machine?
It is supplied from Ambala, India by Science Lab Supplies, which quotes it to ITIs, polytechnics, TVET centres, tender contractors and distributors, either as a single machine or as part of a furniture workshop package.
Is it suitable for a vocational training workshop?
Yes, for panel and furniture courses with space for a 900 kg machine and supervised operation. Send your workshop layout and power supply details and the quotation will be prepared accordingly.
