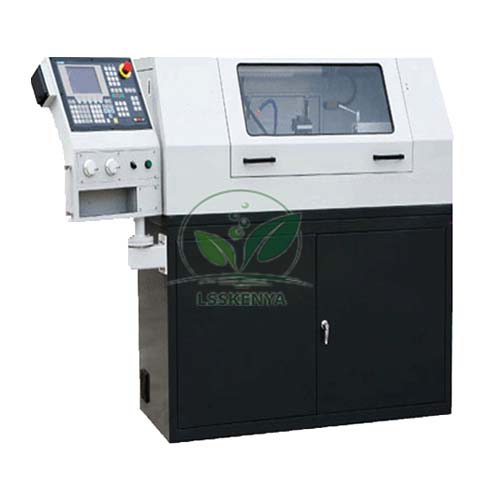

CNC Lathe System
Product Code : LSK-CTM-10794
CNC Lathe System (SKU LSK-CTM-10794) is a computer-controlled turning machine for teaching CNC part programming and turning practice, with 600 mm between centres, a 260 mm turning diameter over the bed and spindle speeds from 30 to 4000 rpm. It is used in ITI, polytechnic and TVET machining courses. Science Lab Supplies supplies it from Ambala, India to technical institutes, colleges, tender contractors and distributors.
Specifications
The machine has a 2.2 kW motor on a 230 V, 50 Hz supply and a 26 mm spindle bore. The X and Z axes travel 130 mm and 465 mm, with rapid traverse of 3000 and 2500 mm/min. It cuts metric pitches from 0.2 to 3.5 mm and inch threads from 8 to 56 TPI.
| Parameter | Value |
|---|---|
| SKU | LSK-CTM-10794 |
| Distance between centres | 600 mm |
| Turning diameter over bed | 260 mm |
| Spindle bore | 26 mm |
| Spindle speeds | 30–4000 rpm |
| X / Z travel | 130 mm / 465 mm |
| X / Z rapid speed | 3000 / 2500 mm/min |
| X / Z positioning accuracy | 0.03 / 0.032 (as listed) |
| X / Z repeatability | 0.012 / 0.013 (as listed) |
| Thread pitch | 0.2–3.5 mm metric; 8–56 TPI inch |
| Motor | 2.2 kW, 230 V, 50 Hz |
| Packing size | 2220 x 820 x 1720 mm |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the CNC Lathe System
The system lets trainees write part programs for facing, turning and thread cutting, run them on real material and check the finished part against the drawing. It supports CNC turning modules in ITI trades, diploma and B.Tech manufacturing practice, and the vocational training equipment lists of TVET machining courses.
- ITI Turner and Machinist trades: CNC facing, turning and thread-cutting exercises.
- Diploma and B.Tech production engineering: part programming and machining practice.
- TVET machining modules: setting up work and checking first-off parts.
Keep guards in place while the spindle turns and let trainees operate the machine only under supervision.
Standard Scope of Supply
The CNC Lathe System is supplied as a single machine as described above. The listing does not itemise the controller, tooling or accessories, so the quotation states exactly what is included and confirms the packed size for planning delivery.
Packing, MOQ and Lead Time
Quotations can cover one lathe or several for a CNC training workshop, and each lists the packing, delivery time and price for that quantity. Milling trainers and controllers from the same range can be added for institutes buying TVET workshop equipment in one order.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in South Africa, Qatar, Sri Lanka, Vietnam, Malaysia and Peru. Write to us through the contact page or add items to the enquiry cart; tender buyers can also use the lab tender page.
Frequently Asked Questions
What size of work can the CNC Lathe System turn?
It takes work up to 260 mm in diameter over the bed and up to 600 mm between centres, with a 26 mm spindle bore for bar stock.
What positioning accuracy is listed?
The listing gives positioning accuracy of 0.03 on X and 0.032 on Z, with repeatability of 0.012 and 0.013. It does not state the unit, so ask us to confirm it on your quotation.
Who supplies the CNC Lathe System?
Science Lab Supplies supplies it from Ambala, India, quoting it for ITIs, polytechnics, engineering colleges and contractors that equip CNC training workshops.
What power supply does it need?
The motor is rated 2.2 kW on a 230 V, 50 Hz supply. A qualified electrician should make the connection.
Related CNC Turning Trainers
These four items from the CNC Trainer Machine range suit a turning bay built around this lathe: a floor-standing lathe, a compact trainer lathe for first lessons, a lathe controller and a semi-production lathe, all available on one quotation.
- CNC Lathe Machine Floor Model — floor-standing CNC lathe.
- CNC Trainer Lathe Machine — compact lathe for introductory programming.
- CNC Lathe Controller — controller for teaching turning control.
- CNC Semi Production Lathe — heavier turning for batch work.
Browse the full CNC Trainer Machine range or all TVET lab equipment.
Last updated: 25 September 2026
