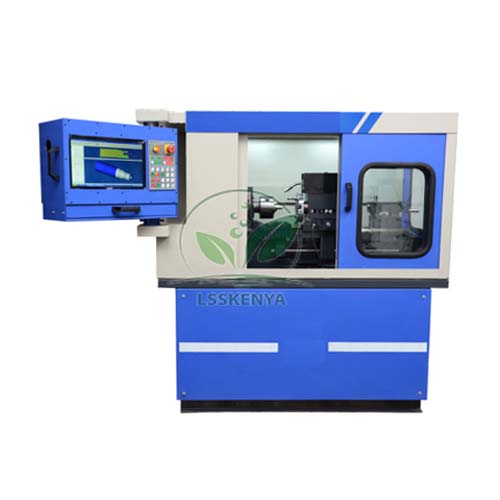

CNC Trainer Lathe Machine
Product Code : LSK-CTM-10771
CNC Trainer Lathe Machine (SKU LSK-CTM-10771) is a compact CNC turning trainer with LM guideways on both axes, a 1.5 HP spindle reaching 4000 rpm and a 2-station linear tool turret. It is built for teaching production-style CNC turning on small parts in ITIs, polytechnics, engineering colleges and TVET centres. Science Lab Supplies delivers it from Ambala, India to institutes and quotes tender contractors and distributors as well.
Specifications
This trainer swings 150 mm over the bed and turns up to 55 mm diameter and 100 mm length. Rapid traverse is 15 m/min on X and Z, strokes are 150 mm and 100 mm, the 80 mm chuck takes 12 mm bar through a 35 mm bore, and repeatability is ±0.003 mm.
| Parameter | Value |
|---|---|
| SKU | LSK-CTM-10771 |
| Swing over bed | 150 mm |
| Turning diameter | Max. 55 mm; standard 50 mm |
| Max. turning length | 100 mm |
| Turret | Linear, 2 stations; tool section 16 x 16; boring bar up to 32 mm |
| X / Z stroke | 150 mm / 100 mm |
| Rapid traverse X / Z | 15 m/min / 15 m/min |
| Guideways | LM (linear motion) on X and Z |
| Spindle | 35 mm bore; 12 mm bar capacity; 80 mm chuck |
| Spindle drive | 1.5 HP; up to 4000 rpm |
| Accuracy | Position 0.015 mm; repeatability ±0.003 mm |
| Dimensions (L x B x H) | 1250 x 850 x 1650 |
| Weight | Approx. 1000 kg |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the CNC Trainer Lathe Machine
The trainer lathe is used for turning programs on small precision parts, such as pins, bushes and bar-fed components up to 55 mm diameter. With LM guideways and 15 m/min rapids it behaves like an industrial turning centre, so ITI, diploma, B.Tech and TVET trainees learn realistic cycle times and setups.
- ITI CNC operator and Turner courses: programming, tool offsets and running batch jobs.
- Diploma and B.Tech production engineering labs: CNC turning and process planning.
- TVET machining modules: boring, facing and turning with the linear turret.
Standard Scope of Supply
The CNC Trainer Lathe Machine is supplied as a single machine as described above, with its 80 mm chuck and 2-station linear turret, at an approximate weight of 1000 kg. Turning tools, boring bars and any optional accessories are listed separately on the quotation.
Packing, MOQ and Lead Time
Quotations are available for one trainer lathe or for a complete CNC turning bay. Each one from Science Lab Supplies states the packing, delivery time and price for the quantity requested, and trainer mills or other workshop tools for technical training institutes can be included.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Rwanda, South Africa, Qatar, Sri Lanka, Vietnam and Malaysia. Instructors and purchase officers can raise questions on the contact page, build a combined order in the enquiry cart, or look at the lab tender page when buying by tender.
Frequently Asked Questions
What size of part can the trainer lathe turn?
It turns up to 55 mm diameter (50 mm standard) and 100 mm length, and takes bar stock up to 12 mm through the spindle.
How accurate is it?
The listed positioning accuracy is 0.015 mm and repeatability is ±0.003 mm, supported by LM guideways on both axes.
How many tools does the turret carry?
The linear turret has 2 stations, takes 16 x 16 tool shanks and boring bars up to 32 mm diameter.
Who supplies the CNC Trainer Lathe Machine?
The trainer lathe is available from Science Lab Supplies in Ambala, India, with quotations prepared for ITIs, polytechnics and engineering colleges as well as for tender contractors and distributors.
