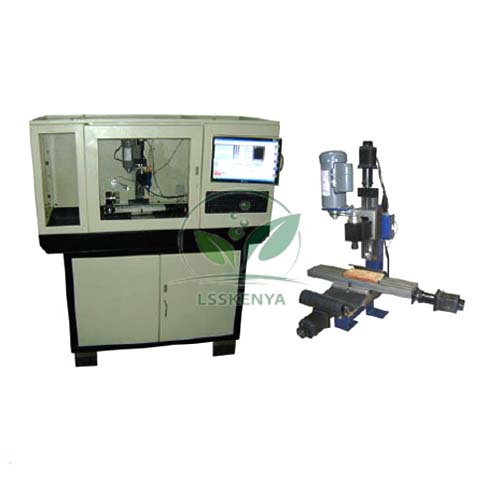

CNC Milling Machine with Cabinet and PC
Product Code : LSK-CTM-10795
CNC Milling Machine with Cabinet and PC (SKU LSK-CTM-10795) is a bench-scale three-axis CNC mill delivered as a complete workstation: the machine, a cabinet that houses the computer, controller and wiring, and a PC for programming. It accepts standard G-code, so trainees can move from CAD/CAM output to cutting parts. Science Lab Supplies supplies it from Ambala, India to ITIs, polytechnics, engineering colleges and tender contractors.
Specifications
Travel is 300 mm on X, 146 mm on Y and 153 mm on Z, driven by 1/2 inch (12.7 mm), 20-pitch Cr-Mo leadscrews with adjustable split bronze nuts. Ground steel ways with brass gibs carry a hard-anodised aluminium table, and the spindle runs from 1100 to 11000 rpm.
| Parameter | Value |
|---|---|
| SKU | LSK-CTM-10795 |
| Travel X / Y / Z | 300 / 146 / 153 mm |
| Spindle speed | 1100–11000 rpm |
| Stepping resolution | 0.003 mm |
| Mechanical repeatability | 0.01 mm |
| Rapid travel | 30 in/min (about 762 mm/min) |
| Leadscrews | 1/2 in (12.7 mm), 20 pitch, Cr-Mo, split bronze nuts, all axes |
| Slideways and table | Ground steel ways, adjustable brass gibs (tapered on X); hard-anodised aluminium table |
| Programming | Universal standard G-code import |
| Coolant | Coolant system with removable collector |
| Cabinet | Storage for computer, controller and electrical wiring |
| PC as listed | Intel Pentium-IV 2.4 GHz, 512 MB RAM, 52X DVD writer, 15 in TFT monitor, keyboard, optical mouse |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the CNC Milling Machine
Trainees use the workstation to write or import G-code, prove it on the PC and then mill slots, pockets and profiles in practice material. Its compact travel suits CNC programming classes where many students need machine time.
- ITI Machinist and CNC operator courses: three-axis milling exercises.
- Diploma and B.Tech CAD/CAM labs: running G-code generated from CAM software.
- TVET workshop equipment for mechatronics and manufacturing modules.
Close the guard while cutting, keep hands away from the spindle and supervise trainees at all times.
Standard Scope of Supply
Each set comprises the CNC milling machine, its coolant system with removable collector, the storage cabinet with controller and wiring, and a PC with monitor, keyboard, mouse and DVD writer. The listed computer specification is dated, so the quotation confirms the configuration actually supplied.
Packing, MOQ and Lead Time
Request a quotation for one workstation or a full row of vocational training equipment for a CNC classroom; it will state the packing, delivery time and price for that quantity. Cutters, vices or a CNC lathe from the same range can go on the same quotation.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Qatar, Sri Lanka, Vietnam, Malaysia, Peru and Egypt. Send details through the contact page, collect items in the enquiry cart, or check the lab tender page for institutional tenders.
Frequently Asked Questions
What is included with the CNC Milling Machine with Cabinet and PC?
The mill, its coolant system, a cabinet holding the controller and wiring, and a PC with monitor, keyboard and mouse. It arrives as a ready workstation rather than a bare machine.
Can it run programs from CAM software?
Yes. It imports universal standard G-code, so programs produced by CAM software or written by hand can be loaded and run.
Who supplies this CNC milling machine?
It is supplied from Ambala, India by Science Lab Supplies, which quotes it to training institutes, colleges and contractors setting up CNC labs.
What accuracy does it offer?
Stepping resolution is 0.003 mm and mechanical repeatability 0.01 mm, which suits teaching programming, work setting and measurement of milled parts.
