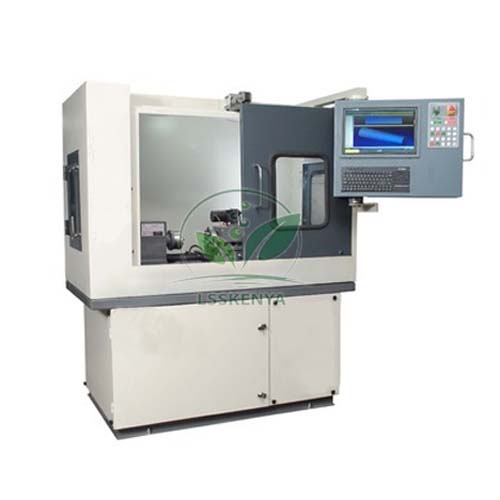

CNC Lathe Trainer Stepper
Product Code : LSK-CTM-10779
CNC Lathe Trainer Stepper (SKU LSK-CTM-10779) is a compact computer-controlled lathe with stepper-motor axis drives, built for teaching CNC turning, part programming and machine setting. ITI trainees, polytechnic students and engineering undergraduates use it for real turning jobs at training scale. Science Lab Supplies supplies it from Ambala, India to technical institutes, training centres, tender contractors and distributors of vocational training equipment.
Specifications
The machine pairs a flat or 45-degree slant bed and 100 mm chuck with a 2 HP AC servo spindle running 100 to 4000 RPM through a VFD. Stepper motors drive the X and Z axes, a PLC-based control system runs with Cut Viewer software, and an automatic 4- or 8-station turret holds the tools.
| Parameter | Value |
|---|---|
| SKU | LSK-CTM-10779 |
| Bed; keyboard | Flat / 45° slant; emulated / standard |
| Chuck | 100 mm, hydraulic / manual |
| Max. turning dia / length | 40 mm / 250 mm |
| Centre height; between centres | 100 mm; 320 mm |
| Swing over cross slide / bed | 60 mm / 200 mm |
| Positioning / repeatability / resolution | 0.010 / ±0.015 / 0.010 mm |
| Spindle | AC servo, 2 HP, 100–4000 RPM with VFD; A 2-3 / MT 3 nose |
| Axis drives; C axis | Stepper motors and drives; C axis with brake optional |
| Travel X / Z; ball screws | 100 / 300 mm; Ø25 x 5, C3 class |
| Feed rate; rapid travel | 0–1,200 mm/min; 1,200 mm/min |
| Turret | Automatic, 4 / 8 stations, 12 x 12 mm tools |
| Tailstock | 170 mm base stroke, hydraulic / manual |
| Lubrication; coolant; FMS | Automatic; automatic; compatible |
| Size; power | 1480 x 800 x 1200 mm; 230 V single phase |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the CNC Lathe Trainer Stepper
The trainer teaches the full CNC turning cycle: writing and simulating a part program, setting tool offsets, holding the job in the chuck and machining it under program control. Its single-phase supply and small working envelope suit vocational workshops, polytechnic machine shops and engineering CAM labs.
- ITI machinist and turner trades: facing, step, taper and profile turning on CNC.
- Diploma in mechanical or production engineering: CNC programming and operation.
- B.E./B.Tech CAD/CAM labs: G-code writing and simulation before cutting.
Standard Scope of Supply
The trainer is supplied as a single machine with the bed, chuck, spindle, stepper-driven axes, automatic turret, tailstock, PLC-based control and Cut Viewer operating software described above. The C axis and any tooling you request are optional and listed separately on the quotation.
Packing, MOQ and Lead Time
You can ask for a quotation for one machine or for a complete CNC workshop, and each quotation states the packing, delivery time and price for that quantity. Related TVET workshop equipment can go on the same quotation.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Iraq, Nigeria, Kenya, Ghana, Ethiopia and Tanzania. Quote requests can be sent from the contact page or the enquiry cart, and tender buyers can refer to the lab tender page.
Frequently Asked Questions
What drives the axes on this lathe trainer?
Stepper motors with stepper drives move the X and Z axes on C3-class ball screws, while a 2 HP AC servo spindle is speed-controlled by a VFD from 100 to 4000 RPM.
Who supplies the CNC Lathe Trainer Stepper?
Science Lab Supplies supplies it from Ambala, India, and quotes it with related CNC training machines for institutes, contractors and distributors.
Does it need a three-phase supply?
No. The specification lists 230 V single phase. Run the machine with guards in place and under an instructor, as it has a rotating chuck and indexing turret.
