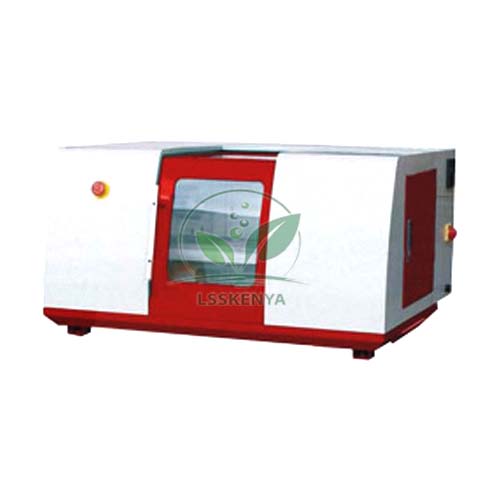

CNC Lathe Machine Table
Product Code : LSK-CTM-10770
CNC Lathe Machine Table (SKU LSK-CTM-10770) is a bench-top two-axis CNC lathe with a 200 mm swing over bed, a 500 W main motor and a 4-station, 360-degree tool turret. Its compact frame makes it a practical first CNC turning machine for ITIs, polytechnics and TVET centres. Science Lab Supplies supplies it from Ambala, India to training institutes, tender contractors and distributors.
Specifications
This bench lathe offers 150 mm X and 250 mm Z travel with 1.35 Nm axis motors, spindle speeds of 100–3000 rpm and a 100 mm bed. Positioning precision is 0.015 mm and repeatability 0.01 mm, and the machine measures 1000 x 780 x 565 mm with a net weight of 140 kg.
| Parameter | Value |
|---|---|
| SKU | LSK-CTM-10770 |
| Swing over bed / over carriage | 200 mm / 100 mm |
| Centre distance | 460 mm |
| Bed width | 100 mm |
| Max. travel X / Z | 150 mm / 250 mm |
| Spindle speed | 100–3000 rpm |
| Main motor | 500 W |
| X/Z axis motors | 1.35 Nm |
| Feeding / max. moving speed | 500 mm/min / 2 m/min |
| Tool turret | 4 station, 360 degree; return precision 0.005 mm |
| Tailstock travel | 50 mm |
| Positioning / repeat precision | 0.015 mm / 0.01 mm |
| Machine size (L x W x H) | 1000 x 780 x 565 mm |
| Gross / net weight | 180 / 140 kg |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the CNC Lathe Machine Table
The bench lathe is used for first CNC turning programs: facing, step and taper turning, grooving and chamfering of small shafts and bushes. Because it is compact, institutes can equip several stations in one room for ITI, diploma, B.Tech and TVET turning practicals.
- ITI Turner and CNC operator courses: program entry, dry runs and first cuts.
- Polytechnic and B.Tech workshops: CNC turning in manufacturing processes labs.
- TVET machining modules: tool selection and offsets with the 4-station turret.
Standard Scope of Supply
The CNC Lathe Machine Table is supplied as a single bench lathe as described above, with its 4-station turret and tailstock, at a gross shipping weight of 180 kg. A strong bench, turning tools and any optional accessories can be added to the quotation if you need them.
Packing, MOQ and Lead Time
Ask for a quotation for one bench lathe or for a row of stations for a CNC classroom. Each quotation from Science Lab Supplies gives packing, delivery time and price for that quantity, and bench mills or other TVET workshop equipment can be listed alongside.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Zambia, Rwanda, South Africa, Qatar, Sri Lanka and Vietnam. You can ask about this lathe on the contact page, list it with other machines in the enquiry cart, or refer to the lab tender page for institutional tenders.
Frequently Asked Questions
Is this a bench or a floor-standing lathe?
It is a bench machine measuring 1000 x 780 x 565 mm and weighing 140 kg net, so it needs a strong, level bench rather than floor foundations.
How does it compare with the floor model?
This table lathe has a 200 mm swing, 500 W motor and 1.35 Nm axis motors. The floor model has a 250 mm swing, 1 kW motor and 4 Nm axis motors.
How many tools can it hold?
The turret has 4 stations and indexes through 360 degrees, returning to position within 0.005 mm, so a program can use up to four tools.
Who supplies the CNC Lathe Machine Table?
This machine comes from Science Lab Supplies in Ambala, India. ITIs, polytechnics and engineering colleges order it directly, and tender contractors and distributors can also request a quotation.
