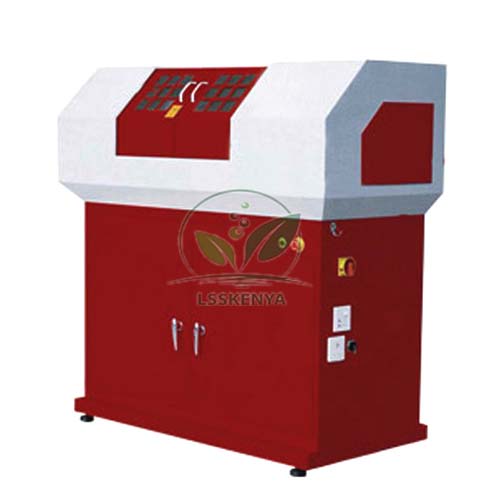

CNC Lathe Machine Floor Model
Product Code : LSK-CTM-10769
CNC Lathe Machine Floor Model (SKU LSK-CTM-10769) is a free-standing two-axis CNC turning machine with a 250 mm swing over bed, 450 mm between centres and a 4-station, 360-degree tool turret. It is used to teach CNC turning in ITIs, polytechnics, engineering colleges and TVET machine shops. Institutes can buy it directly from Science Lab Supplies in Ambala, India, and tender contractors and distributors are quoted too.
Specifications
The floor lathe has a 1 kW main motor with spindle speeds of 100–3000 rpm, 180 mm X and 320 mm Z travel driven by 4 Nm motors, and a 135 mm bed. Positioning precision is 0.015 mm, repeatability 0.01 mm, and the turret returns to position within 0.005 mm.
| Parameter | Value |
|---|---|
| SKU | LSK-CTM-10769 |
| Swing over bed / over carriage | 250 mm / 110 mm |
| Distance between centres | 450 mm |
| Bed width | 135 mm |
| Max. travel X / Z | 180 mm / 320 mm |
| Spindle speed | 100–3000 rpm |
| Main motor | 1 kW |
| X/Z axis motors | 4 Nm |
| Feeding / max. moving speed | 500 mm/min / 2 m/min |
| Tool turret | 4 station, 360 degree; return precision 0.005 mm |
| Tailstock travel | 50 mm |
| Positioning / repeat precision | 0.015 mm / 0.01 mm |
| Machine size (L x W x H) | 1460 x 760 x 1450 mm |
| Gross / net weight | 530 / 440 kg |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the CNC Lathe Machine Floor Model
The lathe is used to teach turning programs: facing, straight and taper turning, grooving, chamfering and profile work, with tool changes from the 4-station turret. It fits CNC turning practicals in ITIs, diploma and B.Tech workshops and TVET machining modules, where trainees set tools, offsets and cutting speeds.
- ITI Turner and CNC operator courses: writing, proving and running turning programs.
- Diploma and B.Tech mechanical engineering: CNC turning in manufacturing technology labs.
- TVET machining modules: multi-tool jobs using the indexing turret.
Standard Scope of Supply
The CNC Lathe Machine Floor Model is supplied as one floor-standing machine as described above, with its 4-station turret and tailstock, packed in a case of 1630 x 1070 x 1685 mm. Turning tools, inserts and any optional accessories are listed separately on the quotation.
Packing, MOQ and Lead Time
You may request a quotation for one lathe or for a full CNC turning section. Each quotation from Science Lab Supplies sets out the packing, delivery time and price for the quantity you name, and milling machines or other vocational training equipment can be quoted with it.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Bangladesh, Zambia, Rwanda, South Africa, Qatar and Sri Lanka. Send lathe questions through the contact page, add the machine and any related items to the enquiry cart, or check the lab tender page for tender purchases.
Frequently Asked Questions
What size of work can this lathe turn?
It swings 250 mm over the bed and 110 mm over the carriage, with 450 mm between centres, which covers the shafts and bushes used in training exercises.
How does it differ from the CNC Lathe Machine Table?
The floor model is larger: 250 mm swing, 450 mm centres, 1 kW motor and 4 Nm axis motors. The table version is a bench machine with a 200 mm swing and a 500 W motor.
Can it be quoted for an institute tender?
Yes. Send the quantity, delivery location and tender specification for an item-wise quotation based on the specification above.
Who supplies the CNC Lathe Machine Floor Model?
Science Lab Supplies, Ambala, India, is the supplier. It quotes the floor model lathe directly to ITIs, polytechnics and engineering colleges, and also to tender contractors and distributors buying on their behalf.
