Hydraulic Trainer Kit
Product Code : LSK-CTM-10788

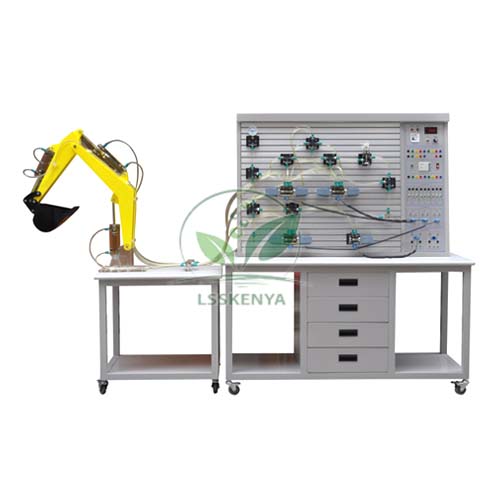

Hydraulic Trainer Kit (SKU LSK-CTM-10788) is a self-contained mobile hydraulics trainer on a trolley with caster wheels, carrying a tank, gear pump, electric motor, valves, cylinders and a hydraulic motor. A specially designed control panel lets students build their own circuits for more than fifteen listed experiments. Mechanical engineering departments, polytechnics and TVET centres use it for fluid power practicals. The kit is supplied by Science Lab Supplies, Ambala, India, to institutes, contractors and distributors.
Specifications
The kit is modular, with components kept easily accessible and joined by quick-connect fittings and pipes. A single-phase flange-mounted motor drives a gear pump through a bell housing and flexible coupling, and a PLC with software and help file is included for control exercises.
| Parameter | Value |
|---|---|
| SKU | LSK-CTM-10788 |
| Frame | Trolley with frame and caster wheels; self-contained mobile unit |
| Power unit | Tank with filter and breather; single-phase flange-mounted motor; bell housing; flexible coupling; gear pump |
| Pressure valves | Relief, sequence, needle valve |
| Direction and flow | 4/3 manually operated DCV, pilot-operated check valve, check valve, flow control valve |
| Actuators | Single-acting cylinder, double-acting cylinder, hydraulic motor |
| Connections and gauges | Hoses, quick couplings, pressure gauges |
| Control | Circuit-building control panel; PLC with software and help file |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Hydraulic Trainer Kit
The kit supports a full hydraulic circuits syllabus: operating single- and double-acting cylinders and a motor with a 4/3 valve, setting relief and sequence valve pressures, sequencing actuators, regenerative circuits, and meter-in, meter-out and bleed-off speed control of cylinders.
- B.E./B.Tech fluid power labs: speed control circuits and throttle valve pressure-flow characteristics.
- Diploma mechanical engineering: relief, reducing and sequence valve studies.
- ITI and TVET hydraulics modules: building and testing circuits on the panel.
- PLC-based control of simple hydraulic mechanisms.
Standard Scope of Supply
The set includes the trolley, tank with filter and breather, motor, bell housing, coupling, gear pump, gauges, the listed valves, both cylinders, the hydraulic motor, hoses, quick couplings, control panel and PLC with software. Pneumatically operated models are offered as an additional supply and are quoted separately.
Packing, MOQ and Lead Time
Pricing can be requested for a single trolley kit or for several stations in a hydraulics lab. The quotation lists packing, delivery time and price for the quantity you name, and pneumatic models or other TVET lab equipment can be added.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Oman, the Philippines, Nepal, Bangladesh, Zambia and Rwanda. Science Lab Supplies is registered for GST (GSTIN 06ADEPJ0574F2ZU). Send your enquiry on the contact page or add the kit to the enquiry cart; if the purchase is by tender, look at the lab tender page.
Frequently Asked Questions
Which speed control circuits can students build?
The experiment list covers meter-in, meter-out and bleed-off speed control of a hydraulic cylinder, along with regenerative circuits and throttle valve pressure-flow studies.
Is the kit mobile?
Yes. All components are mounted on a trolley frame with caster wheels, so the unit can be moved between classrooms and workshops.
Who supplies the Hydraulic Trainer Kit?
Science Lab Supplies supplies it from Ambala, India, and quotes it for engineering colleges, training institutes, contractors and distributors.
How should students work with it safely?
Set the relief valve before building circuits, release pressure before disconnecting hoses and keep hands clear of moving cylinders, with an instructor present.
