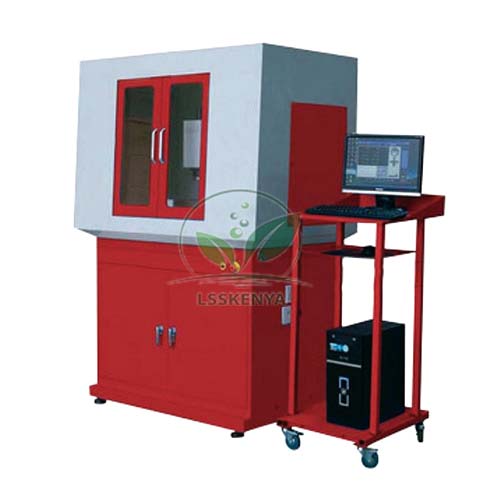

CNC Milling Machine Floor Model
Product Code : LSK-CTM-10767
CNC Milling Machine Floor Model (SKU LSK-CTM-10767) is a free-standing three-axis CNC vertical mill with a 1 kW spindle and a 500 x 160 mm T-slotted table, sized for teaching part programming and machining of small components. It serves ITI, polytechnic, engineering-college and TVET machine shops. Science Lab Supplies supplies it from Ambala, India to technical institutes, training centres, tender contractors and distributors.
Specifications
The floor model moves 280 mm in X, 120 mm in Y and 270 mm in Z, driven by 4 Nm X/Y and 6 Nm Z feed motors. Its spindle runs from 100 to 5000 rpm, positioning precision is 0.015 mm, and the machine stands 1280 x 895 x 1845 mm with a net weight of 510 kg.
| Parameter | Value |
|---|---|
| SKU | LSK-CTM-10767 |
| Worktable size | 500 x 160 mm |
| T-slots | 3 slots, 12 mm |
| Max. table load | 35 kg |
| Table travel X / Y / Z | 280 / 120 / 270 mm |
| Throat | 232 mm |
| Drilling capacity | 16 mm |
| Spindle speed | 100–5000 rpm |
| Spindle motor | 1 kW |
| Feed motors | X and Y 4 Nm; Z 6 Nm |
| Feeding speed / max. moving speed | 500 mm/min / 2 m/min (X, Y, Z) |
| Positioning precision | 0.015 mm |
| Machine size (L x W x H) | 1280 x 895 x 1845 mm |
| Gross / net weight | 570 / 510 kg |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the CNC Milling Machine Floor Model
The machine is used to teach G-code programming, work setting and tool offsets, then to mill faces, pockets, slots and drilled hole patterns in small parts. It fits CNC and machining courses in ITIs, polytechnics, B.Tech manufacturing labs and TVET centres where trainees need a real machine rather than simulation.
- ITI Machinist and CNC operator courses: setting up and running milling programs.
- Diploma and B.Tech mechanical engineering: manufacturing technology and CAD/CAM practicals.
- TVET machining modules: face milling, pocketing, contouring and drilling exercises.
Standard Scope of Supply
The CNC Milling Machine Floor Model is supplied as a single floor-standing machine as described above, packed in a case of 1420 x 1060 x 2035 mm with a gross weight of 570 kg. Cutting tools, vices and any optional accessories are listed separately on the quotation.
Packing, MOQ and Lead Time
You can request a quotation for one machine or for a complete CNC lab, and each quotation from Science Lab Supplies states the packing, delivery time and price for that quantity. Lathes, controllers and other TVET lab equipment for the same workshop can go on one quotation.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in the Philippines, Nepal, Bangladesh, Zambia, Rwanda and South Africa. To discuss the floor model, write to us via the contact page, collect the machines you need in the enquiry cart, or read the lab tender page if you are buying through a tender.
Frequently Asked Questions
How does the floor model differ from the table model?
The floor model has a larger 500 x 160 mm table rated for 35 kg, longer travel, a 1 kW spindle to 5000 rpm and a 16 mm drilling capacity. The table model is a smaller bench unit.
Can it be quoted for an institute tender?
Yes. Send the quantity, delivery location and tender specification, and the quotation will list the machine item-wise with the specification on this page.
Who supplies the CNC Milling Machine Floor Model?
Science Lab Supplies, based in Ambala, India, supplies this floor-standing CNC milling machine and quotes ITIs, polytechnics and engineering colleges directly, as well as tender contractors and distributors.
