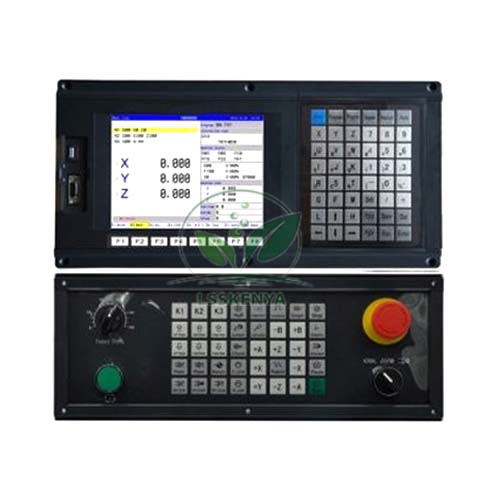

CNC Milling Controller
Product Code : LSK-CTM-10776
CNC Milling Controller (SKU LSK-CTM-10776) is a six-axis CNC control system for milling machines that drives up to six stepper or servo motors plus an independent servo spindle, and supports automatic tool magazines. Engineering colleges, polytechnics and TVET centres use it for CNC control and retrofit training, and it also suits woodworking, metal and glass processing machines. It is available from Science Lab Supplies, Ambala, India, both for institutes and for tender contractors and distributors.
Specifications
The controller moves and interpolates six axes, outputs pulses at up to 1 MHz and uses speed look-ahead for smooth transitions between moves. It has 56 inputs and 48 outputs, two 0–10 V analog channels and a PWM port, a 256 MB built-in disk expandable to 8 GB, and USB, Ethernet, serial and SD card connections.
| Parameter | Value |
|---|---|
| SKU | LSK-CTM-10776 |
| Axes | 6-axis movement and 6-axis interpolation |
| Motor control | 6 stepper or servo motors; independent servo spindle |
| Pulse frequency | Up to 1 MHz |
| Tool change | Straight-line magazine, disc magazine, cylinder tool change; customisable magazine features |
| Inputs / outputs | 56 inputs, 48 outputs |
| Analog control | 2 channels 0–10 V; 1 PWM analog port |
| Storage | 256 MB built-in, expandable to 8 GB |
| Communication | USB, Ethernet, serial, U disk, SD card |
| Program tools | G-code track preview, real-time tracking, syntax check; MPG running of G-code |
| System functions | Self-diagnosis; parameter backup and recovery |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the CNC Milling Controller
In training, the controller is used to teach CNC system set-up: wiring axes and I/O, configuring a tool magazine, previewing and checking G-code, and running programs with the MPG. In industry, the same controller runs machines for furniture and wood carving, metal parts, glass panels and flexible milling, grinding and polishing lines.
- Diploma and B.Tech mechatronics labs: multi-axis motion control and interpolation.
- ITI and TVET CNC courses: program preview, syntax checking and MPG operation.
- Retrofit projects: upgrading a manual or older CNC mill with tool-change support.
Standard Scope of Supply
The CNC Milling Controller is supplied as a single control unit with the functions and ports described above. Motors, drives and the machine itself are separate items; if you need them, or any optional accessories, list them in your enquiry so they appear on the same quotation.
Packing, MOQ and Lead Time
Quotations can be made for one controller or several units for a CNC control lab. Each quotation from Science Lab Supplies sets out packing, delivery time and price for that quantity, and CNC machines or other TVET workshop equipment can be added.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Malaysia, Peru, Egypt, Iraq, Nigeria and Kenya. Science Lab Supplies is registered for GST (GSTIN 06ADEPJ0574F2ZU). Please send controller enquiries through the contact page or the enquiry cart; buyers working on a tender can refer to the lab tender page.
Frequently Asked Questions
How many axes can this controller run?
It controls six stepper or servo motors with six-axis interpolation, plus an independent servo spindle.
Does it support automatic tool changers?
Yes. It supports straight-line and disc magazines and cylinder tool change, and magazine features can be customised.
How are programs loaded?
Programs can be transferred by USB, Ethernet, serial link, U disk or SD card and stored on the 256 MB built-in disk, expandable to 8 GB.
Who supplies the CNC Milling Controller?
Science Lab Supplies provides this milling controller from Ambala, India. ITIs, polytechnics and engineering colleges receive quotations directly, as do tender contractors and distributors.
Related CNC Trainer Machines
Control-system training usually covers both lathe and mill controllers, and many institutes also retrofit existing mills. These four items from the same range cover a lathe controller, two retrofit kits and a complete trainer mill, and all can go on one quotation.
- CNC Lathe Controller — 2.5-axis controller with operator panel.
- CNC Retrofitting Kit for Milling Machine — Ethernet-based 3/2-axis retrofit.
- CNC Retrofit Kit for Conventional Universal Milling Machine — for universal mills.
- CNC Trainer Milling Machine — complete three-axis trainer mill.
Browse the full CNC Trainer Machine range or all TVET lab equipment.
Last updated: 25 September 2026
