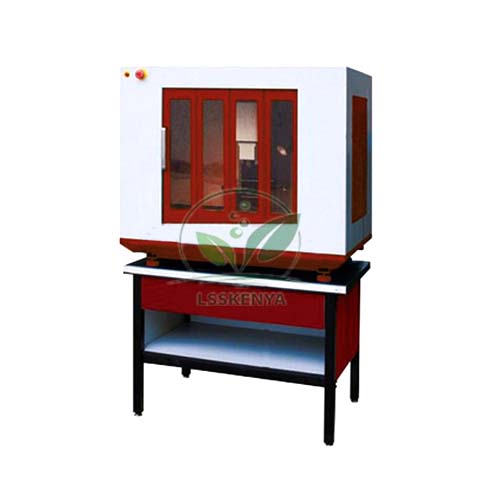

CNC Milling Machine Table Model
Product Code : LSK-CTM-10768
CNC Milling Machine Table Model (SKU LSK-CTM-10768) is a bench-mounted three-axis CNC mill with a 500 W spindle reaching 7000 rpm and a 400 x 145 mm table. Its compact size suits classrooms and small CNC labs in ITIs, polytechnics, engineering colleges and TVET centres. Science Lab Supplies supplies it from Ambala, India to technical institutes, tender contractors and distributors.
Specifications
This bench model travels 260 mm in X, 110 mm in Y and 180 mm in Z, with 1.35 Nm X/Y and 2.2 Nm Z feed motors. The table carries up to 20 kg, drilling capacity is 10 mm, positioning precision is 0.015 mm, and the machine measures 1040 x 860 x 940 mm.
| Parameter | Value |
|---|---|
| SKU | LSK-CTM-10768 |
| Worktable size | 400 x 145 mm |
| T-slots | 3 slots, 8 mm |
| Max. table load | 20 kg |
| Table travel X / Y / Z | 260 / 110 / 180 mm |
| Throat | 150 mm |
| Drilling capacity | 10 mm (3/8 in) |
| Spindle | 500 W, 100–7000 rpm |
| Feed motors | X and Y 1.35 Nm; Z 2.2 Nm |
| Feeding / max. moving speed | 500 mm/min / 2 m/min |
| Positioning precision | 0.015 mm |
| Machine size (L x W x H) | 1040 x 860 x 940 mm |
| Gross / net weight | 218 / 178 kg |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the CNC Milling Machine Table Model
The bench mill lets trainees write and prove G-code programs, set work offsets and cut light pockets, slots, profiles and hole patterns in small workpieces. It suits introductory CNC milling in ITIs, polytechnic and B.Tech workshops and TVET machining modules, where several stations are often needed in one room.
- ITI Machinist and CNC operator courses: first programs, dry runs and simple milling jobs.
- Diploma and B.Tech manufacturing labs: linking CAD/CAM output to a real machine.
- TVET machining modules: slotting, pocketing and drilling practice on a compact machine.
Standard Scope of Supply
The CNC Milling Machine Table Model is supplied as a single bench machine as described above, with a gross shipping weight of 218 kg. A sturdy bench or stand, cutting tools, a vice and any optional accessories are not part of the listed specification and can be added to the quotation.
Packing, MOQ and Lead Time
Quotations can cover a single bench mill or several stations for a CNC classroom. Each quotation from Science Lab Supplies lists the packing, delivery time and price for the quantity requested, and bench lathes or other TVET workshop equipment can be added to it.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Nepal, Bangladesh, Zambia, Rwanda, South Africa and Qatar. Science Lab Supplies is registered for GST (GSTIN 06ADEPJ0574F2ZU). For questions about the table model, the contact page reaches the sales team, the enquiry cart holds a multi-item list, and the lab tender page is the place to start for tendered purchases.
Frequently Asked Questions
How does the table model differ from the floor model?
The table model is a bench unit with a 400 x 145 mm table, 20 kg load, 500 W spindle to 7000 rpm and 10 mm drilling capacity. The floor model has a larger table and a 1 kW spindle.
Is this machine suitable for a classroom?
Yes. At 1040 x 860 x 940 mm and 178 kg net it fits on a strong bench, so several units can be set up in one CNC training room.
Who supplies the CNC Milling Machine Table Model?
It is supplied by Science Lab Supplies from Ambala, India. ITIs, polytechnics and engineering colleges can buy the table model directly, and tender contractors and distributors are quoted as well.
