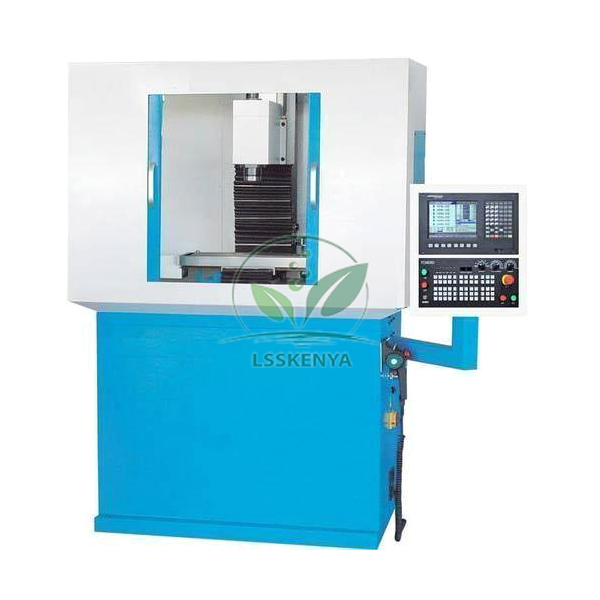

CNC Trainer Milling Machine
Product Code : LSK-CTM-10772
CNC Trainer Milling Machine (SKU LSK-CTM-10772) is a three-axis CNC vertical mill with a 200 x 600 mm table, a 3 HP spindle and a PC-based Mach3 CNC controller. It is specified for college trainer labs, toolroom machine shops and die-making training in ITI, polytechnic, B.Tech and TVET courses. Science Lab Supplies, located in Ambala, India, offers it to institutes and to tender contractors and distributors.
Specifications
The machine traverses 400 mm in X, 150 mm in Y and 300 mm in Z, with a table that carries up to 100 kg. Its spindle runs from 80 to 4000 rpm at up to 3 HP, cutting feeds reach 4000 mm/min, and it needs a 415 V, 50 Hz, three-phase supply with a 5 kVA connected load.
| Parameter | Value |
|---|---|
| SKU | LSK-CTM-10772 |
| Table size | 200 x 600 mm |
| T-slots (as listed) | 3 / 12 / 28 mm |
| Max. safe table load | 100 kg |
| Traverse X / Y / Z | 400 / 150 / 300 mm |
| Table to spindle face | 200 mm |
| Feed rates | Cutting 1–4000 mm/min; rapid 2 m/min on X, Y and Z |
| Spindle | 80–4000 rpm; max. 3 HP |
| Tooling | Single tool, manual tool changing |
| Accuracy | Positioning ±0.05; repeatability ±0.05 |
| Control system | PC-based Mach3 CNC controller; G, M, T, F, I, S, J, K codes; graphical simulation |
| Controller I/O | 4 high-speed inputs; 1 analog output; USB disk; RS232 |
| Power supply | 415 V, 50 Hz, 3 phase; 5 kVA connected load |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the CNC Trainer Milling Machine
The trainer mill is used for programming and machining face, pocket, slot, contour and drilling jobs on parts up to the 200 x 600 mm table. Graphical simulation lets trainees check a program before cutting, which suits CNC milling practicals in ITIs, diploma and B.Tech labs, toolroom courses and TVET centres.
- ITI Machinist, Tool and Die Maker and CNC operator courses: milling programs and setups.
- Diploma and B.Tech production labs: CAD/CAM to machine with a PC-based controller.
- TVET machining modules: simulation, dry run and first-part cutting.
The 415 V three-phase connection should be made by a qualified electrician, and trainees should run the machine only under supervision.
Standard Scope of Supply
The CNC Trainer Milling Machine is supplied as described above: the three-axis mill with its PC-based Mach3 controller and the standard necessaries and consumables listed in the specification. Cutting tools, a vice and any optional accessories you need are listed separately on the quotation.
Packing, MOQ and Lead Time
Request a quotation for one trainer mill or for a full CNC training bay. Each quotation from Science Lab Supplies states the packing, delivery time and price for that quantity, and a matching trainer lathe or other TVET workshop equipment can be added.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in South Africa, Qatar, Sri Lanka, Vietnam, Malaysia and Peru. Science Lab Supplies is registered for GST (GSTIN 06ADEPJ0574F2ZU). Use the contact page for specific questions about the trainer mill, the enquiry cart to request several items at once, or the lab tender page for purchases made through tenders.
Frequently Asked Questions
What control system does it use?
A PC-based Mach3 CNC controller that reads G, M, T, F, I, S, J and K codes, offers graphical simulation and connects to a PC through RS232.
What power supply does the machine need?
It needs 415 V, 50 Hz, three-phase power with a total connected load of 5 kVA.
Who supplies the CNC Trainer Milling Machine?
Science Lab Supplies supplies it from Ambala, India, to engineering colleges, ITIs, toolroom training centres, tender contractors and distributors.
