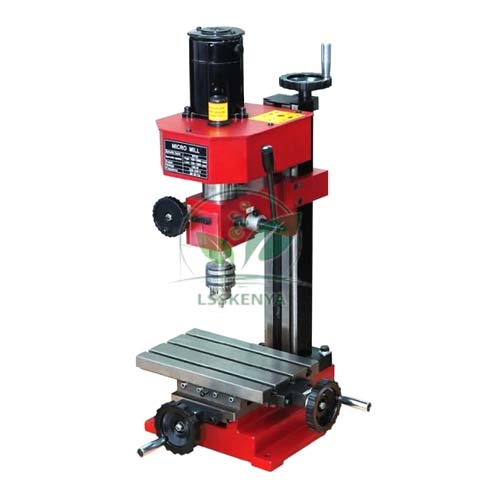

CNC Micro Mill
Product Code : LSK-CTM-10791
CNC Micro Mill (SKU LSK-CTM-10791) is a desktop CNC machining system that can produce anything from very simple to very complex geometric forms in wood, plastic, aluminium or steel. Its small footprint makes it a practical first CNC mill for classrooms, design studios and project labs. Schools with technology programmes, polytechnics, engineering colleges and TVET centres use it for CNC and product design work. It is supplied from Ambala, India, by Science Lab Supplies to institutes, contractors and distributors.
Specifications
The mill uses a box-way Z-axis assembly with ground steel plate and tapered brass gib, ground steel sliding ways, a hard-anodised aluminium table and 20-pitch Cr-Mo lead screws. Stepping motors of 200 oz-in drive the axes, and a 1/4 HP motor turns the spindle from 1100 to 11000 RPM.
| Parameter | Value |
|---|---|
| SKU | LSK-CTM-10791 |
| Travel X / Y / Z | 300 / 146 / 153 mm |
| Rapid travel | 30 in/min (about 760 mm/min) |
| Stepping resolution; repeatability | 0.003 mm; 0.01 mm mechanical |
| Spindle | 1/4 HP motor, 1100–11000 RPM, pulley and belt drive |
| Axis motors | 200 oz-in stepping motors, electronic chopper driver unit |
| Ways and gibs | Ground steel ways; adjustable tapered brass gibs on X and Z |
| Table; lead screws | Hard-anodised aluminium; 1/2 in (12.7 mm) 20-pitch Cr-Mo |
| Software; input | Custom Mach3 control interface (Win XP); standard G-code import |
| Materials | Wood, plastic, aluminium, steel |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the CNC Micro Mill
The micro mill lets students take a design from CAD drawing to G-code to finished part on a bench-top machine. Because it accepts standard G-code, it pairs with most CAM packages taught in colleges, and its range of materials suits both model making and small metal parts.
- ITI and TVET CNC modules: first milling programs, work offsets and tool setting.
- Diploma in mechanical engineering: CAD/CAM practicals on a desktop machine.
- B.E./B.Tech design and prototyping labs: small parts in aluminium or plastic.
- School technology and STEM projects in wood and plastic.
Standard Scope of Supply
The complete system includes the micro mill with 1/4 HP spindle motor, 200 oz-in stepping motors, pulley set with drive belt, electronic chopper driver unit with input/output port, one 3, 4 or 6 mm collet with collet closer, the Mach3 control interface, printer cable and power cable. The 4th-axis amplifier and port are optional.
Packing, MOQ and Lead Time
Ask for a quotation for one micro mill or for a set of desktop machines for a class. The quotation states packing, delivery time and price for the number you request, and extra collets, the 4th-axis option or other TVET workshop equipment can be added.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Bangladesh, Zambia, Rwanda, South Africa, Qatar and Sri Lanka. Ask about the micro mill on the contact page or add it to the enquiry cart, and see the lab tender page when the order is part of a tender.
Frequently Asked Questions
Which materials can the CNC Micro Mill cut?
It is described for wood, plastic, aluminium and steel, from simple shapes to complex geometric forms.
How is it programmed?
It imports standard G-code and runs through a custom Mach3 control software interface, so programs from common CAM software can be used.
Who supplies this desktop mill?
Science Lab Supplies supplies it from Ambala, India, and quotes it for schools, colleges, training institutes, contractors and distributors.
Is a fourth axis available?
A 4th-axis amplifier and port are listed as optional, so mention it in your enquiry if you plan rotary machining.
