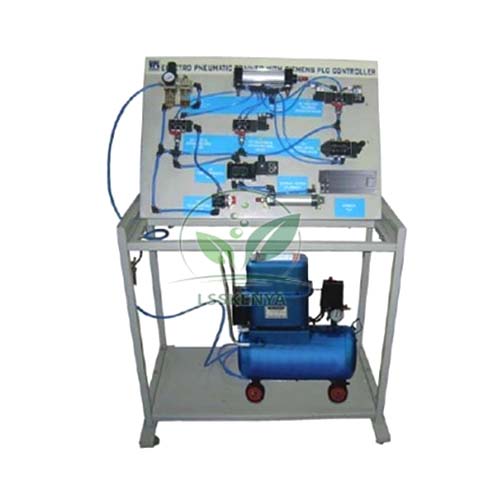

Electro Pneumatic Trainer
Product Code : LSK-CTM-10789
Electro Pneumatic Trainer (SKU LSK-CTM-10789) demonstrates the design, construction and use of electro-pneumatic components and circuits, from basic pneumatic control to relay logic with solenoid valves and proximity sensors. Students assemble circuits on a profile plate and run them from an electrical control panel. Mechanical, mechatronics and electrical departments and TVET centres use it for automation practicals. For institutes, contractors and distributors, this trainer is available through Science Lab Supplies in Ambala, India.
Specifications
The kit includes single- and double-acting cylinders of 25 mm bore and 100 mm stroke, 5/2 and 3/2 solenoid valves, AND and OR logic valves, an FRL unit, inductive sensors and a pneumatic motor. A powder-coated MS panel carries switches, indicators, test points and DIN-rail terminals.
| Parameter | Value |
|---|---|
| SKU | LSK-CTM-10789 |
| Cylinders | Single and double acting, 25 mm bore x 100 mm stroke, foot mounting |
| Solenoid valves | 2 nos: 5/2 way and 3/2 way, 1/4 in, 230 VAC / 24 V DC |
| Other valves | AND (dual pressure), OR (shuttle), flow control, non-return; 1/4 in |
| Air preparation | FRL unit, 1/4 in, 0–10 kg/cm²; 6-way block manifold; sintered silencer |
| Pressure gauge | 0–7 kg/cm², 100 mm dial |
| Sensors; relays; lamps | Inductive 2-wire, 18 mm, 5 mm range; 24 V DC relay module, 2 NO/NC; 24 VDC lamps |
| Pneumatic motor | Unidirectional, 22,000 RPM free speed, 0–90 psi |
| Control panel | MS powder coated, 1 x 1 x 1 ft, test points, DIN-rail terminals, PVC cable tray |
| Tubing | PUN 4 x 0.75; 10 m transparent, 10 m blue; push-pull connectors |
| Optional compressor | 25 L tank, 2 CFM, 2 HP, 230 V AC, 5–6 kg/cm² |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Electro Pneumatic Trainer
The trainer is used to teach pneumatic and electro-pneumatic control: direct and indirect cylinder control, AND/OR logic with dual-pressure and shuttle valves, speed control with flow valves, and relay-logic sequences triggered by proximity sensors and push buttons on the panel.
- B.E./B.Tech mechatronics and fluid power labs: electro-pneumatic circuit design.
- Diploma in mechanical, electrical or mechatronics engineering: relay-logic control.
- ITI mechatronics and electrician-related modules: solenoid valves and sensors.
- TVET automation courses using the training manuals and mimic charts.
Standard Scope of Supply
The trainer is supplied with the components in the table, the profile plate, electrical control panel, relay board, tubing and enough push-pull connectors to branch the circuits, plus training manuals with mimic charts. The air compressor is optional and quoted only when requested.
Packing, MOQ and Lead Time
You can get a quotation for a single trainer, with or without the compressor, or for several stations. Each quotation gives the packing, delivery time and price for the quantity, and hydraulic or PLC trainers can join it as part of one vocational training equipment order.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in the Philippines, Nepal, Bangladesh, Zambia, Rwanda and South Africa. Contact us via the contact page, or place this trainer and any companion items in the enquiry cart; for tender supply, turn to the lab tender page.
Frequently Asked Questions
Is an air compressor included?
No, it is optional. The listed compressor has a 25-litre tank, 2 CFM discharge and a 2 HP, 230 V motor with 5–6 kg/cm² working pressure.
What sensors does the trainer use?
It uses inductive two-wire proximity sensors of 18 mm diameter with a 5 mm sensing distance, wired to a 24 V DC relay module on the panel.
Who supplies the Electro Pneumatic Trainer?
Science Lab Supplies supplies it from Ambala, India, and quotes it for colleges, institutes, contractors and distributors.
What safety points apply?
Switch off air and power before changing connections, secure tubing in the push-pull fittings and keep hands clear of moving cylinders, under supervision.
