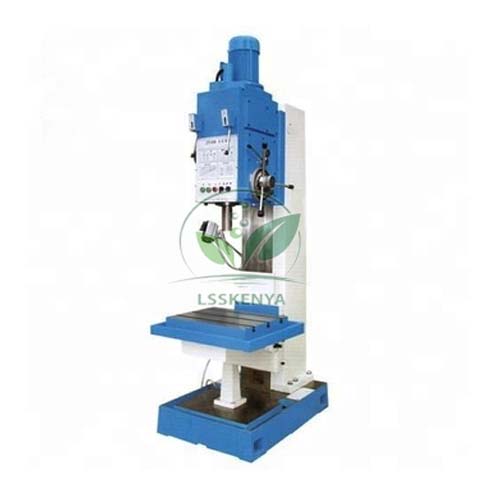

Upright Drilling Machine
Product Code : LSK-MMTM-10615
Upright Drilling Machine (SKU LSK-MMTM-10615), also called a pillar or column drilling machine, drills holes up to 25 mm in diameter with the spindle moving vertically above a worktable and base plate. It is a core machine in fitting and machining workshops at ITI centres, polytechnics, engineering colleges and TVET institutes. Science Lab Supplies puts this machine on quotation from Ambala, India, for training institutes, tender contractors and distributors.
Specifications
Capacities, distances, speeds and the cooling pump of the 25 mm upright drill are listed one per row below. Briefly, the Morse No. 3 spindle travels 140 mm with its centre 315 mm from the column, a 0.75 or 0.55 kW motor gives 100 to 2,900 rpm on 50 Hz, and a 3-phase cooling pump delivers 12 L/min.
| Specification | Value |
|---|---|
| SKU | LSK-MMTM-10615 |
| Max. drilling diameter | 25 mm (1 in) |
| Spindle bore taper | Morse No. 3 |
| Max. spindle travel | 140 mm (5-1/2 in) |
| Spindle centre to column | 315 mm (12-3/8 in) |
| Spindle nose to worktable (max.) | 660 mm (26 in) |
| Spindle nose to base plate (max.) | 480 mm (18-7/8 in) |
| Worktable | 315 x 415 mm (12-3/8 x 16-3/8 in) |
| Base plate working area | 475 x 400 mm (18-11/16 x 15-3/4 in) |
| Worktable effective working area | 1,200 mm (47-1/4 in) |
| Spindle speeds (50 Hz) | 100 to 2,900 rpm |
| Spindle speeds (60 Hz) | 120 to 3,480 rpm |
| Motor power | 0.75 or 0.55 kW |
| Cooling pump | 3-phase |
| Cooling pump power | 0.04 kW |
| Cooling pump flow | 12 L/min |
| Electrical specification | 380 V, 50 Hz |
| Overall dimensions | 788 x 560 x 1,820 mm or 788 x 560 x 1,835 mm |
| Net weight | 440/504 kg or 430/540 kg (by version) |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Upright Drilling Machine
Trainees use the machine for drilling, reaming, counterboring and tapping on marked-out jobs. The worktable takes small parts in a vice, while taller work can sit on the base plate, and the speed range lets learners match spindle speed to drill size and material.
- ITI Fitter trade: drilling and tapping plates and brackets held in a Drilling Machine Vice.
- ITI Machinist and Turner trades: reaming and counterboring practice.
- TVET engineering modules: selecting speed and feed for drill size and material, then comparing thrust and torque on the Drilling Tool dynamometer.
- Diploma and B.Tech workshop practice: drilling machine demonstrations and safety.
Clamp work in a vice rather than holding it by hand, tie back loose clothing and wear eye protection; trainees should drill under an instructor.
Standard Scope of Supply
The Upright Drilling Machine is supplied as a single machine with its drive motor and cooling pump, as described above. Drills, chucks and a drilling vice are not included; any optional accessories you ask for are shown on the quotation.
Packing, MOQ and Lead Time
We can quote one drilling machine or a row of them for a fitting shop. Each quotation gives packing, delivery time and price for the number requested, and vices or other TVET workshop equipment can go on the same document.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Bangladesh, Zambia, Rwanda, South Africa, Qatar and Sri Lanka. Count the drilling stations you need and send the figure through the contact page, queue the machines in the enquiry cart, or open the lab tender page for tender quotations.
Frequently Asked Questions
What is the drilling capacity?
The machine drills holes up to 25 mm (1 inch) in diameter, with a Morse No. 3 spindle taper and 140 mm spindle travel, which covers most fitting-shop drilling exercises.
What speed range does it offer?
On a 50 Hz supply the spindle runs from 100 to 2,900 rpm, and from 120 to 3,480 rpm on 60 Hz, driven by a 0.75 or 0.55 kW motor. Confirm your site supply on the enquiry.
Who supplies the Upright Drilling Machine?
Science Lab Supplies prepares quotations for this machine from Ambala, India, and supplies it to ITI centres, polytechnics, TVET colleges, engineering colleges and workshop contractors.
