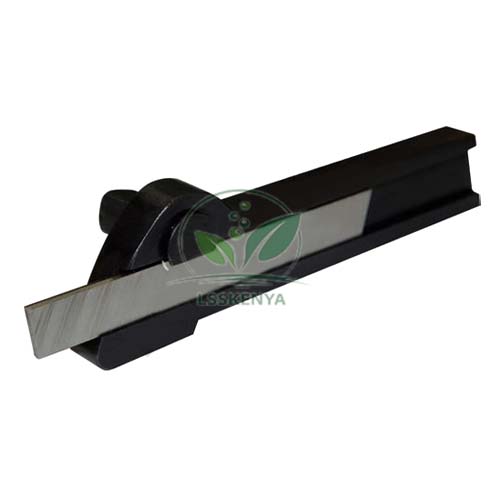

Parting Tool Holder
Product Code : LSK-MMTM-10599
Parting Tool Holder (SKU LSK-MMTM-10599), also known as a parting-off or cut-off blade holder, clamps a bevelled parting blade on a lathe so trainees can cut finished work off the bar and turn grooves. It belongs in the tooling kit of Turner and Machinist trade workshops, polytechnic machine shops and TVET institutes. Science Lab Supplies dispatches it from Ambala, India to training institutes, colleges, tender contractors and distributors, either on its own or within a lathe tooling order.
Specifications
The table records the holder’s construction and each of its three size options. In short, a one-piece body grips and guides a bevelled parting blade with equal clearance on both sides, fits the front or rear tool post, and is offered for 1/2, 5/8 and 3/4 in wide blades.
| Specification | Value |
|---|---|
| SKU | LSK-MMTM-10599 |
| Construction | One piece |
| Clamping | Full clamping of the blade in the one-piece body |
| Blade guidance | Bevelled blade held with equal clearance on both sides |
| Mounting | Front or rear tool post of the cross slide |
| Blade sizes accepted | 1/2 × 3/32 in, 5/8 × 3/32 in, 3/4 × 1/8 in |
| Holder length (all sizes) | 2-3/4 in |
| Holder height (all sizes) | 13/16 in |
| For 1/2 × 3/32 in blade | Width 1/2 in, depth 1/2 in |
| For 5/8 × 3/32 in blade | Width 1/2 in, depth 9/16 in |
| For 3/4 × 1/8 in blade | Width 19/32 in, depth 11/16 in |
| Blade | Not included |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Parting Tool Holder
Parting off is one of the first lathe skills that demands careful speed, feed and tool height, and a rigid holder that keeps the blade square makes it far safer to learn. The holder is common in ITI trade tools lists and workshop tools for technical training institutes.
- ITI Turner and Machinist trades: parting off finished components from bar stock on a Center Lathe Machine.
- Grooving and undercutting exercises, for example thread run-outs cut before threading with the Threading Tool Holder.
- Diploma and B.Tech workshop practice on centre lathes.
- Rear tool post parting, where the blade is mounted inverted behind the work.
Set the blade exactly at centre height, keep overhang short and use cutting fluid; trainees should part off only under supervision.
Standard Scope of Supply
Each Parting Tool Holder is supplied as the one-piece holder in the size you order. It is supplied without the parting blade, so specify the matching blade section (1/2, 5/8 or 3/4 in wide) if you want blades added to the quotation.
Packing, MOQ and Lead Time
Holders can be quoted in one size or as a mixed set for every lathe in a workshop. The quotation lists packing, delivery time and price per size and quantity, and other lathe tool holders can be included on the same sheet.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Vietnam, Malaysia, Peru, Egypt, Iraq and Nigeria. Name the blade sections you use on the contact page, drop the sizes you want into the enquiry cart, or see the lab tender page for tender buying.
Frequently Asked Questions
Is the parting blade included?
No. The holder is supplied without the blade. Tell us which of the three blade sections you use and matching blades can be quoted separately on the same quotation.
Can it be used on the rear tool post?
Yes. The holder can be mounted on either the front or the rear tool post of the cross slide, and in both cases it guides the bevelled blade with equal clearance on each side.
Who supplies this parting tool holder?
Science Lab Supplies supplies the holder from Ambala, India, and can place it on one quotation with blades, other tool holders or a centre lathe, covering packing and dispatch for the whole order.
Which size should we order?
Match the holder to your blade section: 1/2 × 3/32 in, 5/8 × 3/32 in or 3/4 × 1/8 in. All three holders are 2-3/4 in long and 13/16 in high, differing only in width and depth.
