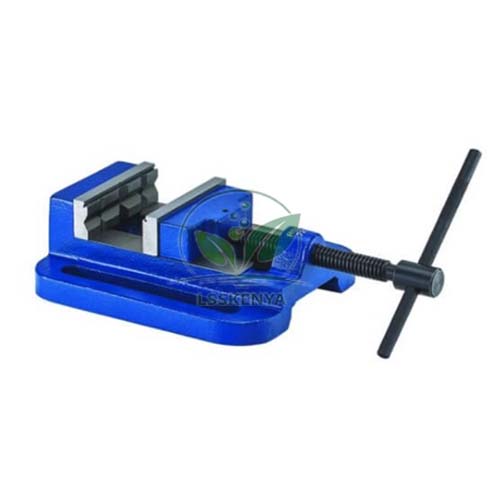

Drilling Machine Vice
Product Code : LSK-MMTM-10612
Drilling Machine Vice (SKU LSK-MMTM-10612), also called a drill press vice, clamps work securely on the table of a drilling machine for drilling, reaming and tapping. It is a basic workholding item in fitting, machining and general engineering workshops at ITI centres, polytechnics, engineering colleges and TVET institutes. Science Lab Supplies lists it among the workholding items it supplies from Ambala, India, to training institutes, tender contractors and distributors.
Specifications
Both drill vice patterns, with their sizes and finishes, are itemised in the table below. In short, each has a close-grained cast iron body and a continuous screw that grips powerfully without lifting the sliding jaw; the moving jaw is plain, the fixed jaw carries one vertical and one horizontal 90-degree V-groove, and finishes are opaline green or metallic blue.
| Specification | Value |
|---|---|
| SKU | LSK-MMTM-10612 |
| Body | Close-grained C.I. (cast iron) |
| Duty | Heavy duty |
| Heavy duty drill vice sizes | 3 in, 4 in, 6 in |
| Drill machine vice sizes | 3 in, 4 in, 5 in, 6 in, 8 in |
| Jaw depth (drill machine vice) | Ample |
| Slide face (drill machine vice) | Machined; can be used upside down (vertically) |
| Moving jaw | Plain |
| Fixed jaw | One vertical and one horizontal 90-degree V-groove |
| Screw | Continuous, for a powerful grip |
| Sliding jaw | No lifting |
| Finish option | Enamelled opaline green |
| Finish option | Hammer-tone metallic blue |
| Use | Clamping and drilling operations |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Drilling Machine Vice
Trainees clamp flat and round workpieces in the vice before drilling, so the job cannot spin with the drill. It supports marking-out and drilling exercises, tapping practice and simple jig-free hole location in fitting and machining courses.
- ITI Fitter trade: drilling and tapping holes in marked-out plates and blocks on a Pillar Drill Machine.
- ITI Machinist and Turner trades: secure workholding on the drill press.
- TVET engineering modules: safe drilling practice with the job clamped, not hand-held.
- Diploma workshop practice: cross-drilling round bars in the V-grooves and checking hole positions with a Vernier Caliper.
Standard Scope of Supply
The Drilling Machine Vice is supplied as a single vice in the size and pattern you order, complete with its continuous screw, as described above. Table clamping bolts and the drilling machine are separate; optional accessories are listed on the quotation.
Packing, MOQ and Lead Time
Request a price for one vice or a mixed quantity to fit every drill press in a workshop. The quotation gives packing, delivery time and price for each size, and workshop tools for technical training institutes can be combined on it.
Science Lab Supplies holds an Importer-Exporter Code and can therefore ship, as a registered exporter, to buyers in Oman, the Philippines, Nepal, Bangladesh, Zambia and Rwanda. Science Lab Supplies is registered for GST (GSTIN 06ADEPJ0574F2ZU). Note the vice sizes and drill presses involved on the contact page, mix sizes freely in the enquiry cart, or go to the lab tender page for tender terms.
Frequently Asked Questions
Which sizes are available?
The heavy duty drill vice comes in 3, 4 and 6 inch sizes, and the drill machine vice pattern in 3, 4, 5, 6 and 8 inch sizes with ample jaw depth.
Can the vice hold round bars?
Yes. The fixed jaw has one vertical and one horizontal 90-degree V-groove that locate round work for drilling, so bars and shafts can be cross-drilled without rolling.
Who supplies the Drilling Machine Vice?
The vice is offered by Science Lab Supplies from Ambala, India. ITI centres, polytechnics, TVET colleges and engineering colleges can buy it directly, and tender contractors and distributors can include it in larger orders.
Can it be used on its side?
The drill machine vice pattern has a machined slide face, so it can be turned over and used vertically when a job needs it.
