Threading Tool Holder
Product Code : LSK-MMTM-10602

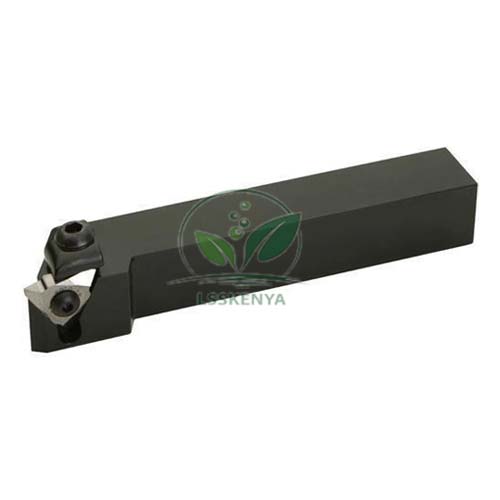

Threading Tool Holder (SKU LSK-MMTM-10602) is a lathe tool holder that clamps an indexable carbide insert for cutting external screw threads. It is used in turning and machining workshops of ITI centres, polytechnics, engineering colleges and TVET institutes, where trainees learn single-point screw cutting on a centre lathe. Science Lab Supplies dispatches this holder from Ambala, India, quoting it for vocational institutes, engineering colleges, tender contractors and distributors.
Specifications
Each measurement and feature of the carbide-insert threading holder appears as its own row in the table below. In short, it is 3-15/16 inches (about 100 mm) long including the fully adjustable insert, locks that insert by clamp or pin, and has an offset shank with a 10-degree end cutting edge angle and neutral rake.
| Specification | Value |
|---|---|
| SKU | LSK-MMTM-10602 |
| Overall length | 3-15/16 in (approx. 100 mm) including insert |
| Insert material | Carbide |
| Insert adjustment | Fully adjustable |
| Insert locking | Clamp lock or pin lock assembly |
| Insert change | Quick rotation or replacement, with positive locking action |
| Shank | Offset |
| End cutting edge angle | 10 degrees |
| Rake | Neutral |
| Application | External threading |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Threading Tool Holder
The holder is used to teach and practise external thread cutting on a centre lathe: setting the tool square to the work, engaging the lead screw and taking repeated passes to form a thread. It suits turner and machinist training, mechanical diploma workshops and TVET machining modules.
- ITI Turner and Machinist trades: screw-cutting exercises on bolts, studs and threaded shafts, cut on a Center Lathe Machine.
- Diploma and B.Tech workshop practice: demonstrating insert tooling and thread cutting, with the tool point set against a Center Gauge.
- TVET machining modules: producing external threads to drawing and checking them with a Thread Gauge.
Standard Scope of Supply
The Threading Tool Holder is supplied as a single unit as described above, with its carbide insert and locking assembly. Spare inserts, the lathe itself and thread-checking gauges are separate items; any optional accessories you need can be listed on the same quotation.
Packing, MOQ and Lead Time
Quotations can be prepared for one holder or for enough holders to equip every lathe in a workshop. Each quotation lists packing, delivery time and price for the quantity requested, and other ITI trade tools such as parting or knurling holders can be added to it.
Holding an Importer-Exporter Code as a registered exporter, Science Lab Supplies is able to ship to buyers in Egypt, Iraq, Nigeria, Kenya, Ghana and Ethiopia. For screw-cutting tooling, describe the lathes you run on the contact page, gather the holders in the enquiry cart, or open the lab tender page when the purchase is a formal bid.
Frequently Asked Questions
What is a threading tool holder used for?
It holds a carbide threading insert on the lathe tool post so that trainees can cut external screw threads. The insert locks positively and can be rotated or replaced quickly when an edge wears.
Who supplies the Threading Tool Holder?
The holder comes from Science Lab Supplies in Ambala, India, as a supplied item. Quotations go to ITI centres, polytechnics, colleges and TVET institutes, and to distributors and contractors bidding on workshop tenders.
Can it be quoted together with a full lathe tooling set?
Yes. Send the number of lathes and the tool holders you need through the contact page, and one item-wise quotation can cover threading, parting, knurling and boring tools together.
