Universal Milling Machine
Product Code : LSK-MMTM-10606

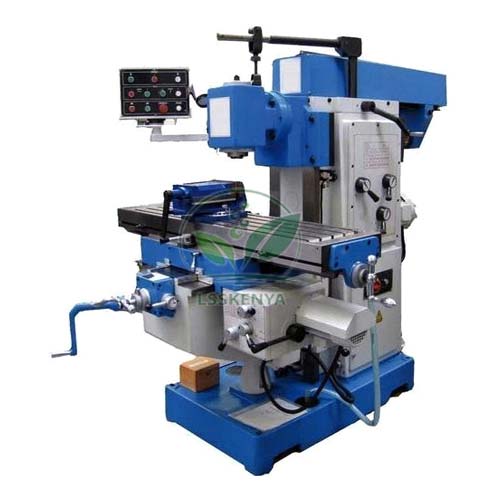

Universal Milling Machine (SKU LSK-MMTM-10606) is a knee-type milling machine whose table swivels, so it can mill flat faces, slots and, with a dividing head, helical work. Machining workshops in ITI centres, polytechnics, engineering colleges and TVET institutes use it to train machinists and tool-room staff. Science Lab Supplies arranges supply of the machine from Ambala, India, for institutes, colleges, tender contractors and distributors.
Specifications
Each table, travel, spindle and motor figure of the 2 HP universal milling machine has its own row below. In brief, the 1150 x 255 mm table carries three T-slots and swivels 22 degrees, four spindle speeds run from 110 to 580 RPM on a 25.4 mm arbor, and longitudinal feed works by hand or automatically.
| Specification | Value |
|---|---|
| SKU | LSK-MMTM-10606 |
| Table working surface | 1150 x 255 mm |
| Number of T-slots | 3 |
| Distance between T-slots | 57 mm |
| Table angular swivel | 22 degrees |
| Spindle centre to table (max.) | 400 mm |
| Cross feed (by hand) | 200 mm |
| Longitudinal feed (hand and auto) | 600 mm |
| Vertical feed (by hand) | 400 mm |
| Number of spindle speeds | 4 |
| Spindle speed range | 110 to 580 RPM |
| Milling arbor diameter | 25.4 mm |
| Overarm to spindle centre | 140 mm |
| Number of longitudinal feeds | 3 |
| Main drive motor | 2 HP, 1440 RPM |
| Coolant motor | 0.11 kW, 2700 RPM |
| Floor space | 600 x 900 mm |
| Machine height | 1400 mm |
| Approx. weight | 950 kg |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Universal Milling Machine
Trainees use the machine for plain, slot, step and form milling, and, with the table swivelled and a dividing head fitted, for helical and gear-cutting exercises. It is standard heavy equipment for machinist and tool-and-die training in vocational and engineering workshops.
- ITI Machinist and Tool and Die Maker trades: plain, face, slot and step milling jobs, with the work held in a Tilting and Swiveling Vice.
- Diploma and B.Tech workshop technology: demonstrating horizontal milling with cutters spaced on Long Milling Arbors.
- TVET machining modules: indexing and gear-cutting exercises with a Universal Dividing Head.
As with any machine tool, trainees should work under an instructor, with guards in place and loose clothing secured.
Standard Scope of Supply
The Universal Milling Machine is supplied as a single machine with its 2 HP main drive and coolant motor, as described above. Dividing heads, vices, arbors and cutters are separate items; any optional accessories you choose are listed on the quotation.
Packing, MOQ and Lead Time
Machines like this are quoted individually or as part of a complete workshop package. The quotation states packing, delivery time and price for the quantity requested, and vocational training equipment such as arbors or a dividing head can be quoted with it.
Science Lab Supplies is a registered exporter with an Importer-Exporter Code and can ship to buyers in Ghana, Ethiopia, Tanzania, Uganda, the UAE and Saudi Arabia. Send floor space and site supply on the contact page, line up the machine and its accessories in the enquiry cart, or see the lab tender page for public procurement.
Frequently Asked Questions
What makes this a universal milling machine?
Its table swivels, here through 22 degrees, so the work can be set at an angle to the cutter. With a dividing head this allows helical and spiral milling as well as ordinary plain milling.
What power supply and motors does it use?
It has a 2 HP, 1440 RPM main drive motor and a 0.11 kW coolant motor. Please confirm your site supply on the enquiry so the quotation matches it.
Who supplies the Universal Milling Machine?
Supply is through Science Lab Supplies of Ambala, India. The machine can be quoted to training institutes, colleges and workshop contractors on its own or with vices, arbors and a dividing head for a complete milling section.
