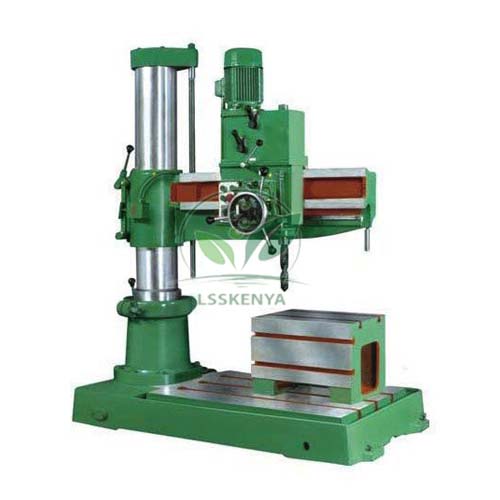

Radial Drilling Machine
Product Code : LSK-MMTM-10616
Radial Drilling Machine (SKU LSK-MMTM-10616), or radial arm drill, carries its drill head on an arm that swings around a column, so holes can be drilled across a large or heavy workpiece without moving it. It is used in machining, fabrication and maintenance workshops at polytechnics, engineering colleges, ITI centres and TVET institutes. Training institutes, tender contractors and distributors can obtain this radial drill from Science Lab Supplies, which quotes and dispatches it from Ambala, India.
Specifications
Clamping, spindle, tapping and capacity features of the radial drill are given separate rows below. In short, it is of massive, rigid construction with ergonomically grouped controls; electrohydraulic clamping locks the drill head, arm and sleeve, the spindle centres lightly with a precise depth release, taps engage shock-free through a clutch, and 80 mm or 100 mm capacity versions are available.
| Specification | Value |
|---|---|
| SKU | LSK-MMTM-10616 |
| Machine type | Radial drilling machine |
| Construction | Massive and rigid |
| Drill head clamping | Electrohydraulic |
| Arm clamping | Electrohydraulic |
| Sleeve clamping | Electrohydraulic |
| Spindle centring | Light |
| Depth release | Precise |
| Tap engagement | Shock-free, through clutch |
| Tap withdrawal | Spindle reverse |
| Controls | Ergonomically grouped |
| Optional drilling capacity | 80 mm or 100 mm versions |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Radial Drilling Machine
The radial arm lets trainees position the spindle over each hole on a heavy casting, plate or fabrication while the job stays clamped. Typical exercises are drilling hole patterns, reaming, counterboring and power tapping, using the clutch and spindle reverse.
- ITI Machinist and Fitter trades: drilling hole patterns in large plates and castings, with smaller jobs moved to an Upright Drilling Machine.
- Diploma and B.Tech workshop technology: comparing radial drilling with a fixed-spindle Pillar Drill Machine.
- TVET machining modules: power tapping with clutch engagement and spindle reverse, then checking the tapped threads with a Thread Gauge.
The arm and head are heavy and the spindle is powerful: clamp every job, keep hands clear of the rotating spindle and let trainees operate under an instructor.
Standard Scope of Supply
The Radial Drilling Machine is supplied as a single machine as described above, in the drilling capacity you select. Drills, taps and workholding are not included; any optional accessories you request are itemised on the quotation.
Packing, MOQ and Lead Time
Specify the drilling capacity you require, including the 80 mm or 100 mm versions, and the number of machines. The quotation then states packing, delivery time and price, and other engineering lab equipment in India for the workshop can be added.
Science Lab Supplies holds an Importer-Exporter Code and, as a registered exporter, can ship to buyers in Zambia, Rwanda, South Africa, Qatar, Sri Lanka and Vietnam. Science Lab Supplies is registered for GST (GSTIN 06ADEPJ0574F2ZU). Write in through the contact page with the capacity and quantity, park the machine in the enquiry cart while you plan, or turn to the lab tender page if a tender governs the purchase.
Frequently Asked Questions
How does a radial drilling machine differ from an upright drill?
The drill head moves along an arm that swings around the column, so the spindle is brought to the hole position instead of moving a heavy workpiece under a fixed spindle.
Is a larger drilling capacity available?
Yes. Versions with 80 mm and 100 mm drilling capacity are also available; state the capacity you need when you ask for a quotation so the correct model is offered.
Who supplies the Radial Drilling Machine?
The radial drill is supplied by Science Lab Supplies from Ambala, India, to polytechnics, engineering colleges, ITI centres, TVET institutes and the contractors handling workshop tenders, with the capacity stated on each quotation.
Can it be used for tapping?
Yes. Taps engage shock-free through a clutch, and the spindle reverses to withdraw the tap, which makes it suitable for power tapping practice.
