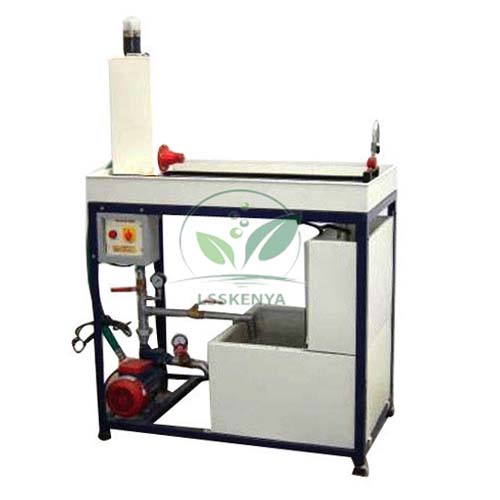

Hydraulics Bench
Product Code : LSK-HAP-10576
Hydraulics Bench (SKU LSK-HAP-10576), also called a hydraulic bench, is a portable, self-contained water supply and flow-measuring module that serves a family of fluid mechanics accessories. Civil and mechanical engineering colleges, polytechnics and TVET institutes use it as the base unit of the fluid mechanics lab. Science Lab Supplies manufactures the bench in Saha, Ambala, India, at Plot 448 of the HSIIDC Industrial Area, and its own team dispatches it to colleges, contractors and distributors.
Specifications
Row by row, the table below covers every listed feature of the hydraulic bench. In short, a 1 HP pump circulates water from the sump through the accessory on test, a 40 litre measuring tank and electronic stopwatch give the flow rate, and the tanks and top tray are stainless steel.
| Specification | Value |
|---|---|
| SKU | LSK-HAP-10576 |
| Type | Portable, self-contained service module |
| Flow measurement | Volumetric, using the measuring tank |
| Measuring tank capacity | 40 litres |
| Sump tank | Built in, for water recirculation |
| Water circulation pump | 1 HP |
| Timing | Electronic stopwatch |
| Tanks | Stainless steel |
| Top tray | Stainless steel |
| Structure | Painted |
| Control panel | On/off switch, mains indicator |
| Manual | English instruction manual |
| Accessory experiments | Orificemeter, flow over notch, orifice and mouthpiece, Bernoulli’s theorem, venturi meter, pipe friction, pipe fitting losses, impact of jet, pressure measurement, Pitot tube, free vortex |
| Manufacturer | Science Lab Supplies, Saha, Ambala, Haryana |
| Country of origin | India |
Applications and Experiments for the Hydraulics Bench
On its own the bench supplies and measures water; fitted with an accessory it becomes a complete experiment. The optional accessories cover most fluid mechanics lab experiments in B.Tech civil and mechanical courses and diploma programmes, including flow measurement, energy and momentum, and losses in pipes.
- Flow measurement: orificemeter, venturi meter, Pitot tube and flow over notches, a topic also covered by the stand-alone Discharge Over a Notch unit.
- Energy and momentum: Bernoulli’s theorem, jet impact on vanes and free vortex, as on the Impact of a Jet and Vortex Apparatus.
- Losses: friction in pipelines and losses in pipe fittings.
- Orifice and mouthpiece discharge, and pressure measurement studies.
Standard Scope of Supply
The bench is supplied with its stainless steel tanks and top tray, the 1 HP circulation pump, the 40 litre measuring tank, an electronic stopwatch, the control panel and an English instruction manual. The experiment accessories listed above are separate items and are quoted individually as required.
Packing, MOQ and Lead Time
You may request a price for one bench on its own or for a bench together with the accessories your syllabus needs. Every quotation shows packing, delivery time and price against the quantities asked, so a whole fluid mechanics lab can be costed in one go.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Sri Lanka, Vietnam, Malaysia, Peru, Egypt and Iraq. The business is registered under Udyam as a manufacturing enterprise (UDYAM-HR-01-0014546) and for GST (GSTIN 06ADEPJ0574F2ZU). Specify the experiments you teach on the contact page, gather the bench and its accessories in the enquiry cart, or see the lab tender page when buying through a public tender.
Frequently Asked Questions
What is a hydraulic bench used for?
It provides a controlled, recirculating water supply and measures flow rate by timing a known volume, so fluid mechanics accessories can be tested on it without a separate water installation.
Are the experiment accessories included?
No. The bench is the service module; accessories such as the venturi meter, Bernoulli apparatus or impact of jet unit are ordered separately and can be quoted together with it.
Who makes this hydraulics bench?
Science Lab Supplies manufactures it at its own factory in Saha, Ambala, India. Buyers get the quotation from the maker itself, which keeps specification questions simple.
How is flow rate measured on the bench?
Water from the test is collected in the 40 litre measuring tank and timed with the electronic stopwatch; the collected volume divided by the time taken gives the discharge.
