Industrial Pneumatics Training Equipment
Product Code : LSK-HAP-10573

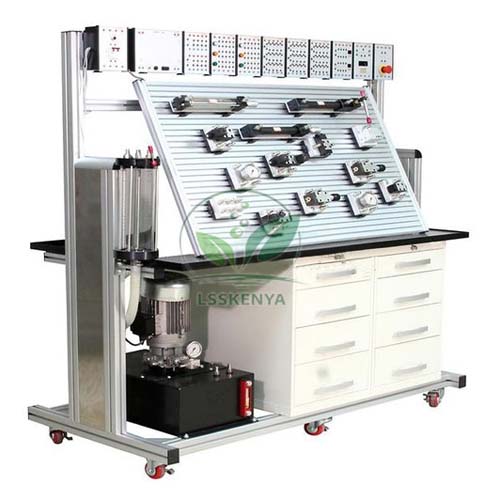

Industrial Pneumatics Training Equipment (SKU LSK-HAP-10573) is a mobile trolley workstation for building, testing and fault-finding compressed-air circuits with plug-in valves, cylinders and logic elements, for fluid power modules at TVET colleges, polytechnics and training centres. Science Lab Supplies manufactures it at Plot 448, HSIIDC Industrial Area, Saha, Ambala, India, and its factory prices it directly for institutions, contractors and distributors.
Specifications
The table lists every dimension and component of the pneumatics trolley. In short, two powder-coated steel plugboards with 2 mm shrouded sockets sit above two lockable drawer cabinets, and the kit adds plug-in valves, 16 mm cylinders and push-fit tubing.
| Specification | Value |
|---|---|
| SKU | LSK-HAP-10573 |
| Overall size (approx.) | 1210 mm L × 750 mm W × 1450 mm H |
| Circuit-building plugboards | 2, approx. 1100 × 700 mm each |
| Plugboard material | Powder-coated 16 SWG steel (at least) |
| Component retention | Rubber grommets in mounting holes |
| Storage cabinets | 2 lockable, 5 drawers each, powder-coated steel incl. drawer fronts |
| Drawer depths (approx.) | 1 × 66 mm, 2 × 85 mm, 1 × 130 mm, 1 × 200 mm |
| Castors | 4 heavy-duty rubber-tyred, 2 swivel and lockable |
| Component mounting | 4-pin plug-in baseplates |
| Air connections | For 4 mm o.d. tubing |
| Electrical connections | 2 mm shrouded plugs on components, sockets in plugboard |
| Exhaust ports | Threaded, with silencers |
| 5/2 way valves | 1 pilot/spring, 3 pilot/pilot, 1 toggle lever |
| 5/3 way valve | 1 pilot/pilot, closed centre |
| 3/2 way push-button valves | 4 (2 baseplates of 2) |
| 3/2 way toggle lever valve | 1 |
| 3/2 way roller lever valves | 2 instroke + 2 outstroke, on adjustable baseplates (vertical and horizontal) |
| Shuttle valves (OR gate) | 4 (2 baseplates of 2) |
| Two-pressure valves (AND gate) | 2 on one baseplate |
| Throttle/check valves | 2 on one baseplate |
| Quick exhaust valve | 1 |
| 3/2 way timer valve | 1, adjustable |
| Air service unit | Filter/regulator, on/off valve, pressure gauge |
| Manifold | 6-way; check fittings block air when tubing is removed |
| Single-acting cylinder | 1, 16 mm dia, 50 mm stroke |
| Double-acting cylinders | 2, 16 mm dia, 100 mm stroke, magnetic piston |
| Indicators and gauges | 1 visual indicator; 1 pressure gauge |
| Air reservoir | Stainless steel |
| Tubing | 15 m of 4 mm o.d. and 5 m of 6 mm o.d. polyurethane |
| Push-fit fittings | 10 tees, 10 plugs |
| Manufacturer | Science Lab Supplies, Saha, Ambala, Haryana |
| Country of origin | India |
Applications and Experiments for the Industrial Pneumatics Trainer
The trainer takes students from single-cylinder control to sequential and logic circuits on one board with real directional valves, timers and flow controls, making it practical TVET workshop equipment and vocational training equipment for fluid power, mechatronics and maintenance courses.
- Direct and indirect cylinder control with push-button, toggle and pilot valves.
- AND/OR logic with two-pressure and shuttle valves; speed control with throttle/check and quick exhaust valves.
- Roller-lever sequencing and time delays with the adjustable timer valve.
- Next: solenoid valves and proximity sensors on the Electro Pneumatic Trainer; gauge theory on the Calibration of a Bourdon Pressure Gauge apparatus.
Standard Scope of Supply
Each workstation ships complete: the trolley with both plugboards, cabinets and castors, plus every valve, cylinder, gauge, reservoir, tube and fitting listed in the table, ready to mount on the plug-in baseplates and connect with the supplied 4 mm tubing.
Packing, MOQ and Lead Time
One trolley or several workstations for a whole pneumatics room can be quoted. Each quotation states packing, delivery time and price for that exact quantity, and hydraulics or electro-pneumatic trainers from the wider TVET range can be added to it.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Rwanda, South Africa, Qatar, Sri Lanka, Vietnam and Malaysia. Outline your stations on the contact page, place the trolley in the enquiry cart, or see how formal bids work on the lab tender page.
Frequently Asked Questions
Why does the trolley have two plugboards?
It carries two circuit-building plugboards of about 1100 × 700 mm, each with rubber retaining grommets and 2 mm shrouded sockets, while all components are kept in its two lockable five-drawer steel cabinets.
Are the cylinders suitable for sensor exercises?
Yes. Both double-acting cylinders have magnetic pistons for contactless sensing, and the 2 mm shrouded sockets on the boards allow electro-pneumatic wiring beside the air circuits.
Who manufactures this pneumatics trainer?
Science Lab Supplies builds the trolley, boards and cabinets itself in Saha, Ambala, India. Because it is the maker, you deal with the factory directly on configuration, quantity and delivery.
